Installation and operating instruction
Oil burner WL20/2-C Z
9 Servicing
83307702
1/2019-04
La
51-80

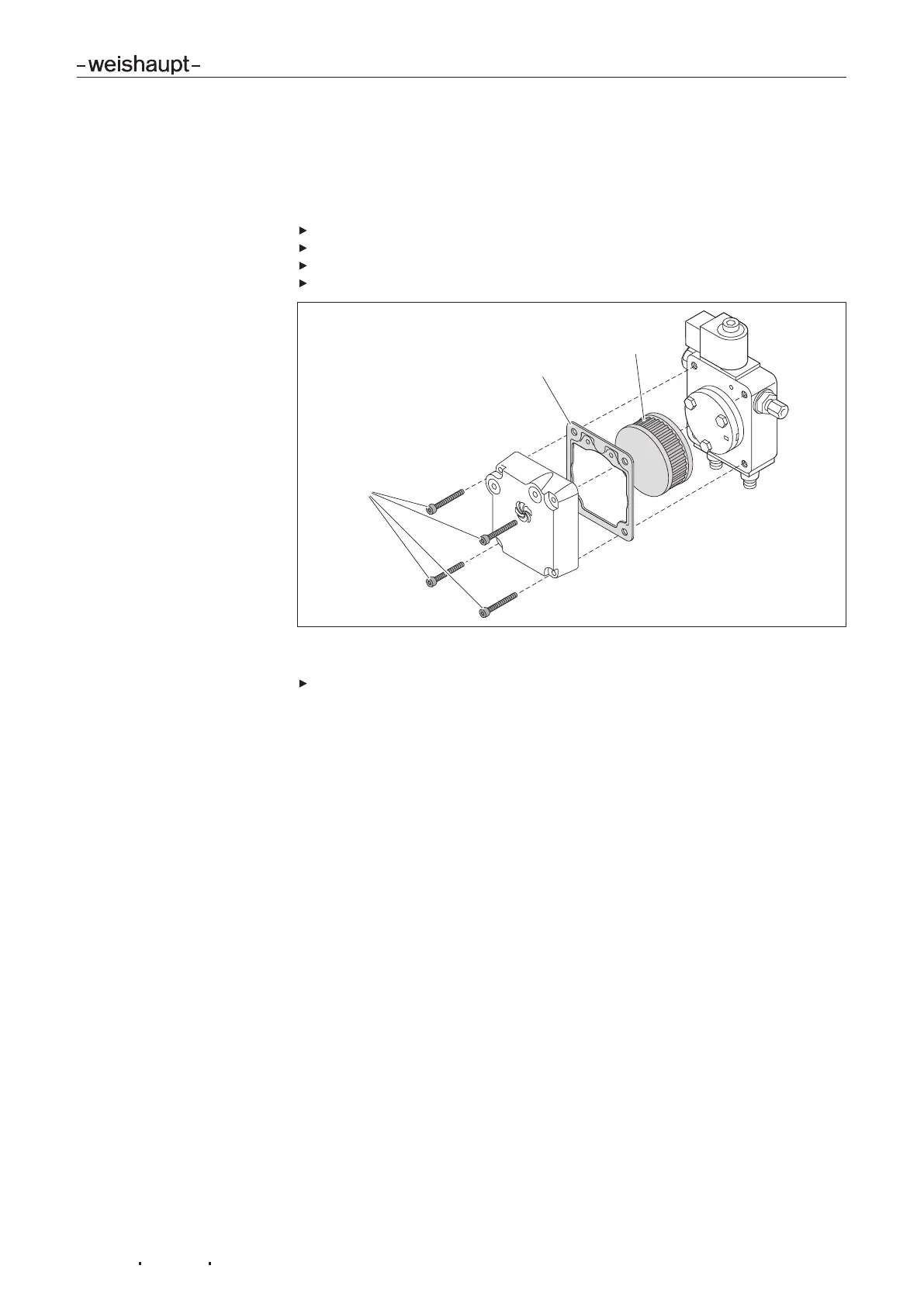

9.13 Removing and refitting oil pump filter
Observe notes on servicing [ch.9.1].
Removing
Close fuel shut off devices.
Remove bolts
1
.
Remove pump cover.
Replace filter
3
and gasket
2
.
2
3
1
Refitting
Refit filter in reverse order ensuring sealing surfaces are clean.
50
52
Table of Contents
Table of Contents
2
User Instructions
4
Target Group
4
Symbols
4
Guarantee and Liability
5
Safety
6
Designated Application
6
Safety Measures
6
Normal Operation
6
Electrical Connection
6
Alterations to the Construction of the Equipment
7
Noise Emission
7
Disposal
7
Product Description
8
Type Key
8
Serial Number
8
Function
9
Air Supply
9
Oil Supply
10
Electrical Components
11
Program Sequence
12
Technical Data
14
Approval Data
14
Electrical Data
14
Ambient Conditions
14
Fuels
14
Emissions
15
Rating
16
Dimensions
17
Weight
18
Installation
19
Installation Conditions
19
Selecting the Nozzles
20
Burner Installation
22
Rotate Burner by 180° (Optional)
24
Installation
26
Oil Supply
26
Electrical Connection
28
Operation
29
Operating Panel
29
Display
29
Commissioning
30
Prerequisite
30
Connect Measuring Devices
31
Setting Values
32
Adjusting the Burner
35
Concluding Work
37
Check Combustion
38
Shutdown
39
Servicing
40
Notes on Servicing
40
Service Plan
42
Service Position
43
Replace Nozzles
44
Set Ignition Electrodes
44
Removing the Mixing Head
45
Set Mixing Head
46
Removing the Air Regulator
47
Removing and Refitting Angle Drive
48
Removing and Refitting Oil Pump
49
Removing and Refitting Fan Wheel
50
Remove Burner Motor
50
Removing and Refitting Oil Pump Filter
51
Replacing the Fuse
52
Troubleshooting
53
Procedures for Fault Conditions
53
Illuminated Push Button off
53
Illuminated Push Button Red
54
Illuminated Push Button Flashes
57
Operating Problems
58
Technical Documentation
59
Conversion Table Unit of Pressure
59
Wiring Diagram
60
Project Planning
62
Oil Supply
62
Spares
64
Notes
76
Key Word Index
77
