Weishaupt WL20/2-C Z User Manual

Installation and operating instruction
Oil burner WL20/2-C Z
4 Installation
83307702 1/2019-04 La
24-80

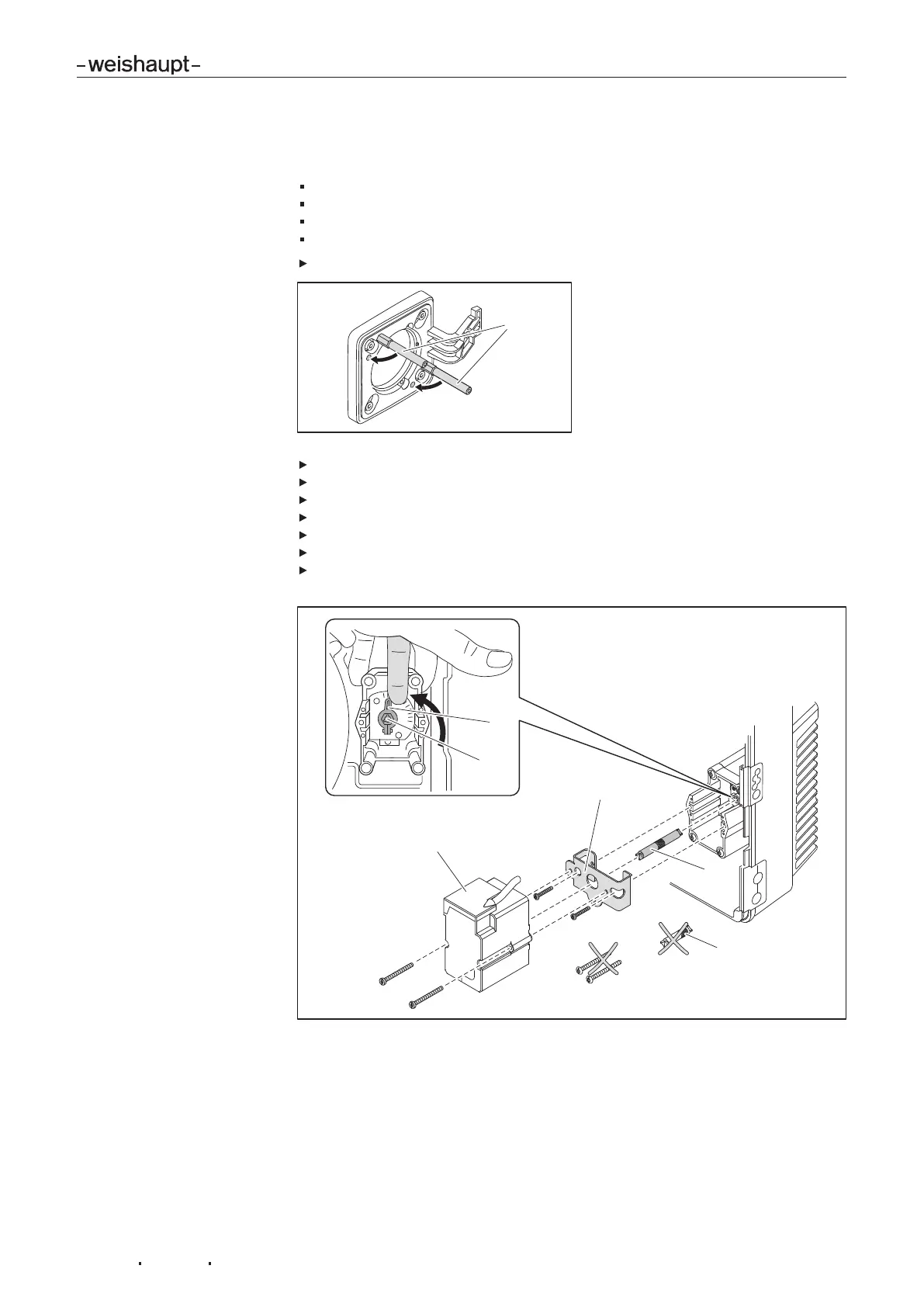

4.3.1 Rotate burner by 180° (optional)
The following parts are required for the conversion:
actuator adapter with fixing screws 4x12Remform,
shaft 58.8mm,
fixing screws for actuator M4x30metric,
pressure hose DN4, 286mm.
Place stay bolt 1 into neighbouring threaded holes.
1
Place burner into service position A [ch.9.3].
Remove actuator 6.
Remove shaft 5.
Fit actuator adapter 3.
Fit longer shaft 4 to actuator.
Turn indicator1 to CLOSED position and hold.
Mount actuator rotated by 180° whilst sliding the shaft4 into the star shaped
groove2.
1
2
3
4
5
6
