Installation and operating instruction
Oil burner WL20/2-C Z
11 Technical documentation
83307702 1/2019-04 La
61-80
X3:3
C1
M1
M
~
X3:12
X3:1 X3:6
X3:5
X3:4 X3:13
T1
B1
K11
K13
K10
h
P11.1
K2
K3
K5
K4

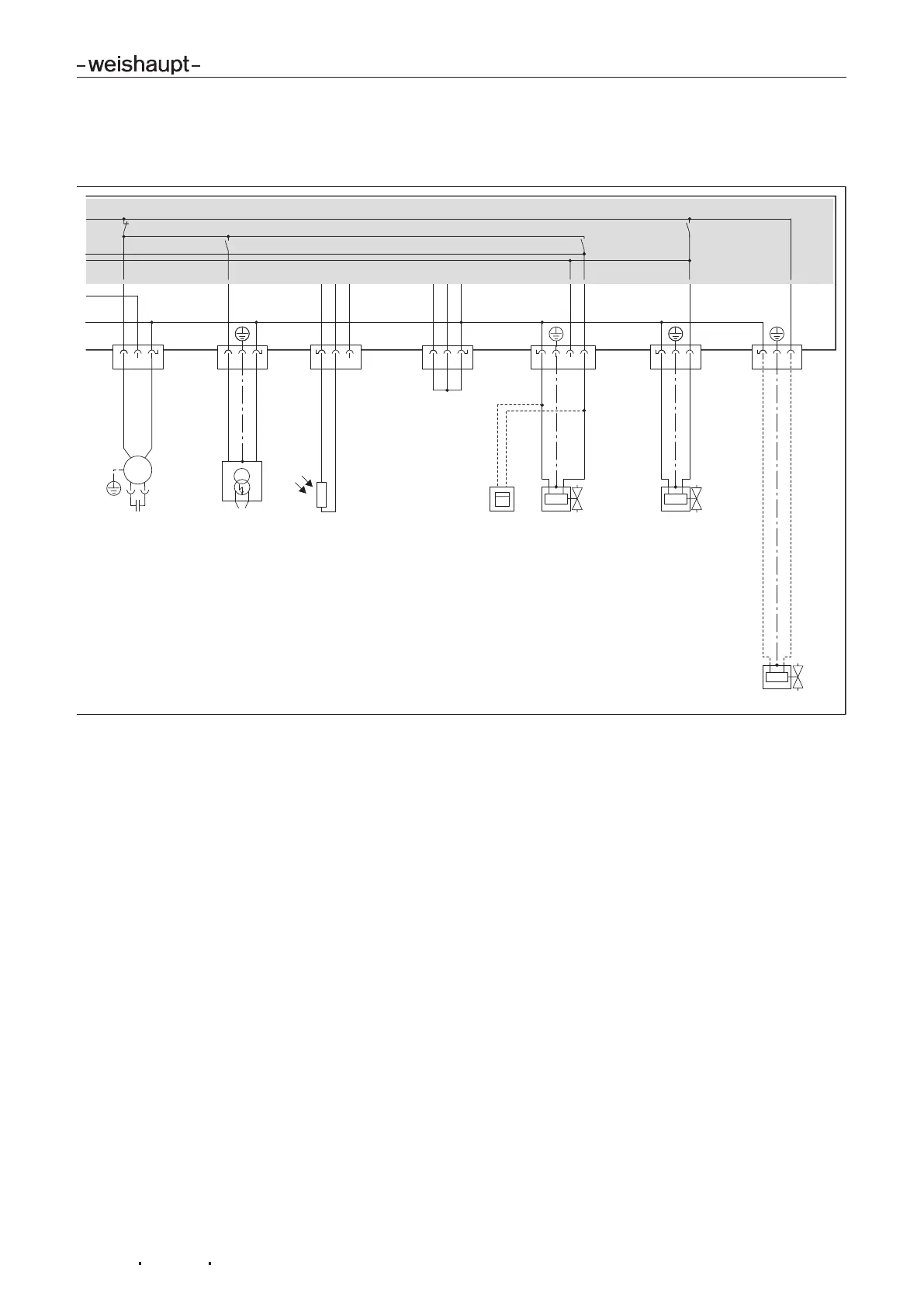

B1 Flame sensor
C1 Motor capacitor
K10 Anti siphon valve (optional)
K11 Stage1 solenoid valve
K13 Stage2 solenoid valve
M1 Burner motor
P11.1 Hours counter (optional)
T1 Ignition unit
