CMP201D User Guide
75
AC3
96~192 (AC3)
Volume(dB)
-20~20
Audio PID
32~8190
Shelter Parameters
Range
Shelter Parameters
Range
Shelter
Enable/Disable
X
0~1920 (Dual)
Y
0~1080 (Dual)
Width
2~1920 (Dual)
Height
2~1080 (Dual)
Color
White/Black/Blue/Green/Red

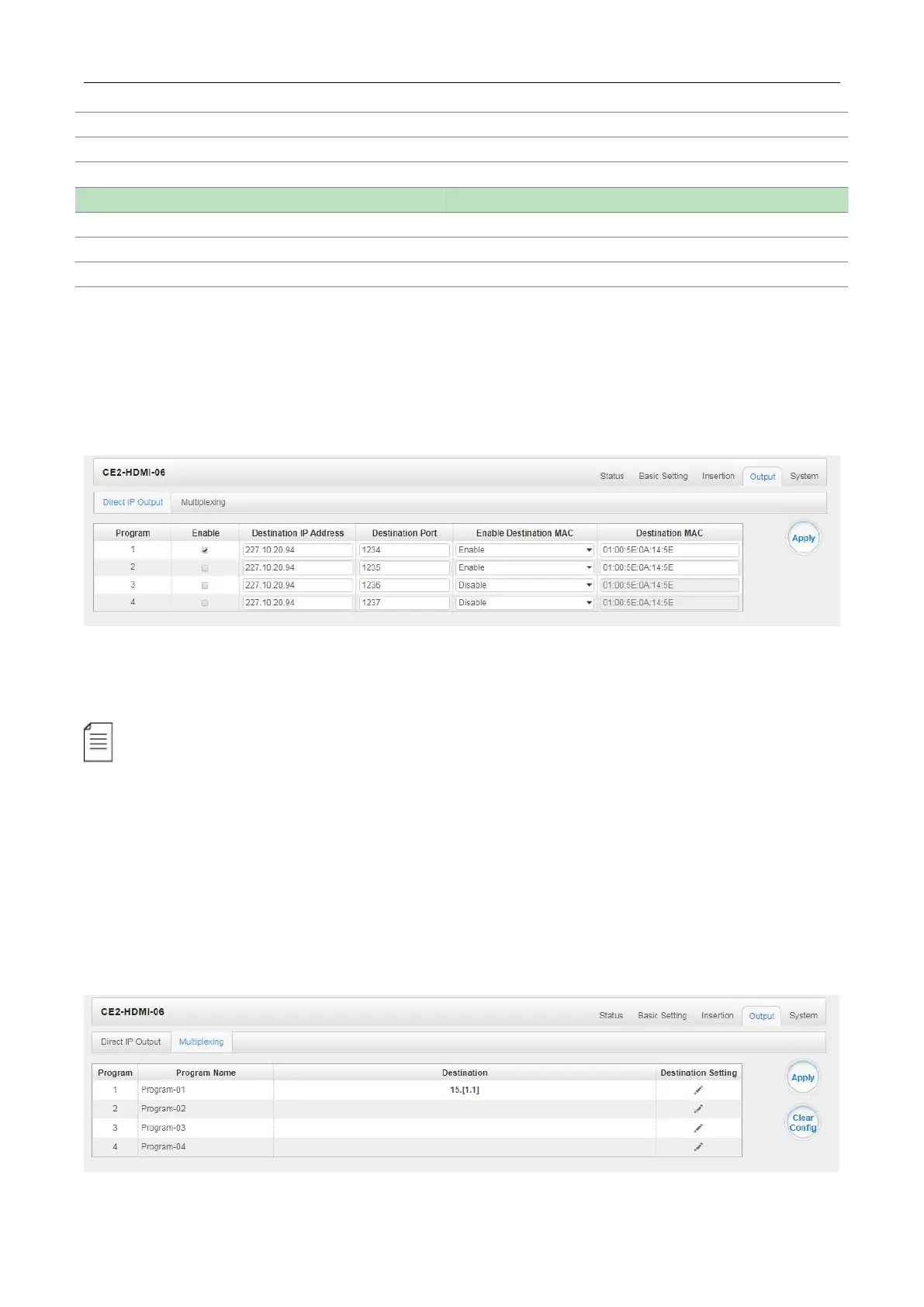

CE2-HDMI-06 >Output
This feature is specifically for single program encoding and IP output directly. Outputting this way will
not occupy baseboard multicast bandwidth.
If you want to use IP output channels in the encoder module and baseboard IP Output module
at same time, you should avoid a multicast IP address conflict. If there are two same IP addresses
enabled meantime, all the multicast videos will be affected.
 Destination IP Address and Destination Port: Using for multicast IP addresses or unicast IP
addresses and ports.
 Enable Destination MAC: Generally, you do not need to enable this option. This is reserved for
exceptional cases where the unicast stream cannot be received with unicast IP addresses You
can enable destination MAC and streaming out by setting Destination MAC.
