Wellav CMP201D - CM2-QAMA-R01;R01 A Module and Settings

CMP201D User Guide
82


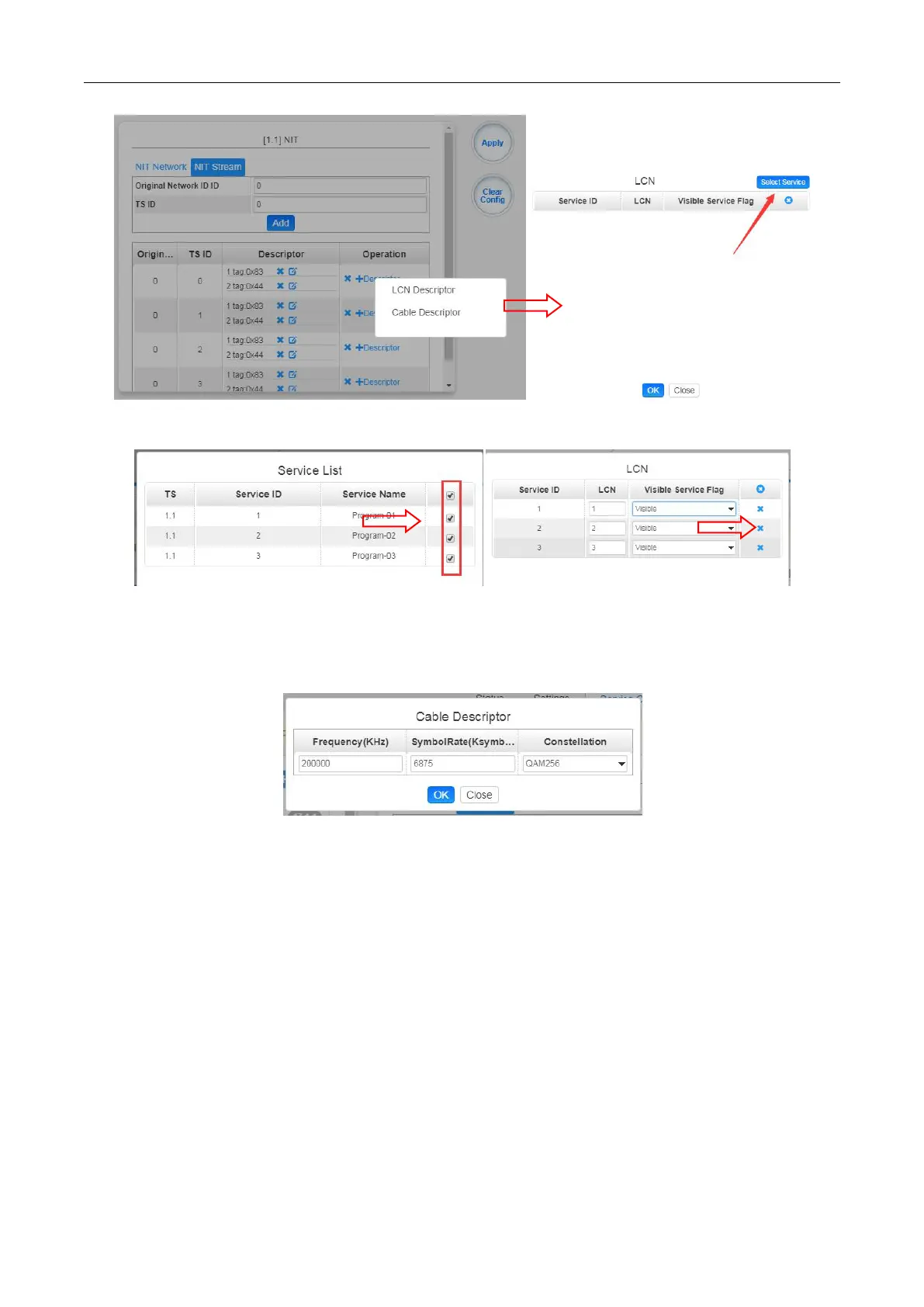

Click +Descriptor and add the Cable Descriptor in. Then fill in the correct frequency and
symbol rate and choose the correct constellation of the TS (frequency). Then click OK. (this
operation should be set on Modulator module only).

Do same operations to add next TS (frequency) until NIT streams of all the frequencies have
been included. At last click Apply button to let all configuration take effect. Then searching
programs in your STB, you will get all programs in order of LCN which you set.
 CM2-QAMA-R01 / R01A
CM2-QAMA-R01 / R01A module supports modulating 4/8 adjacent channels with 1 RF female port
for modulating output.
