i12 Manual Page 37 - Revision: 6-13-2023
CONDENSATE PUMP SETUP
The Wellsys i12 Ice and Water Dispenser should have its drain and brine line plumbed to a
drain, but a condensate pump can also be installed externally to aid in pumping the water from
these two lines to drain access. It is recommended to use a “Little Giant VCMA-20” but any

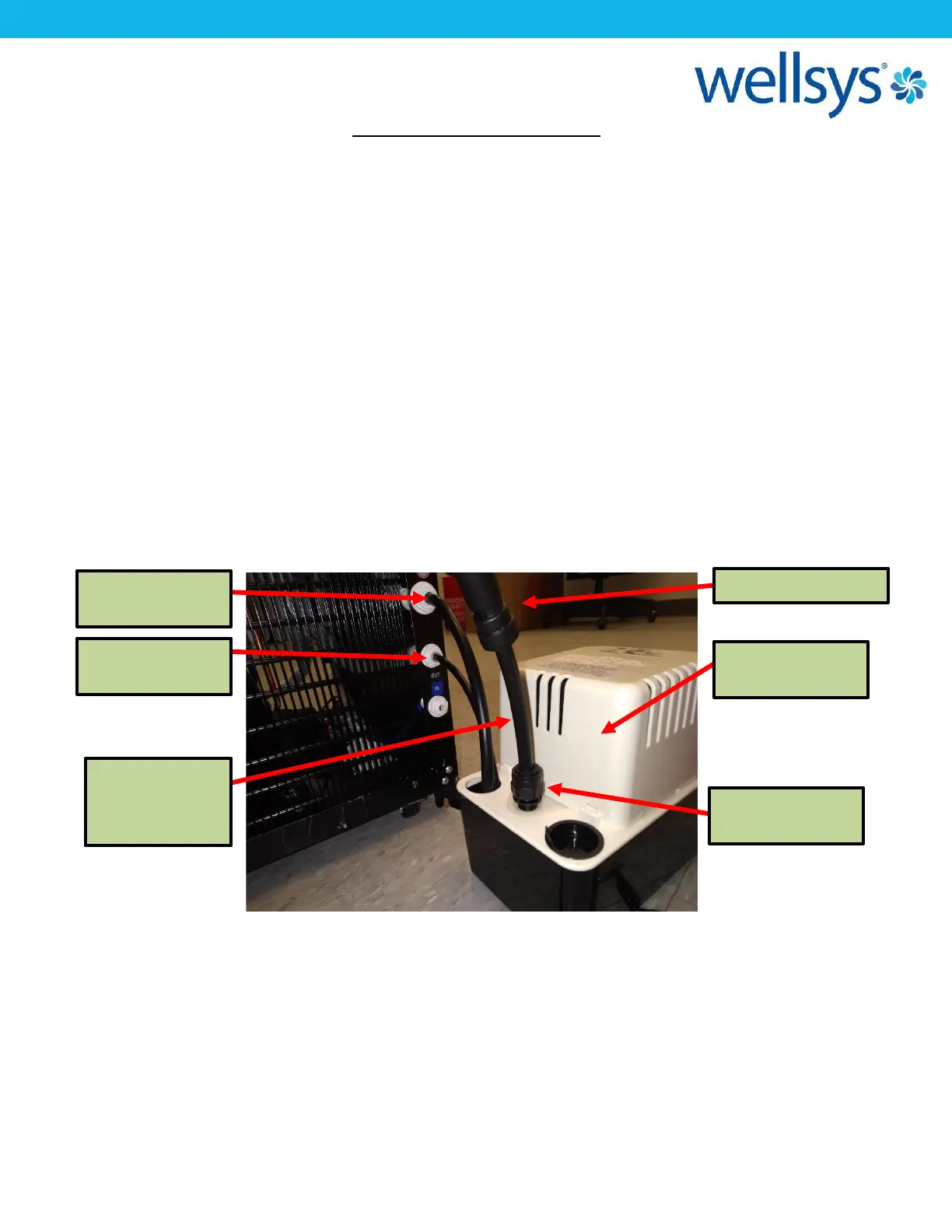

condensation pump should work. Follow the steps below to setup the pump behind the main
unit.
1. The condensate pump will require connection to a 120V power source. It is recommended
to setup the pump behind the main unit and connect to the same power source.
2. Run the Drain (3/8”) and Brine (1/4”) lines from the ice and water unit into the open
receptacles at the corner of the pump.
3. Install a ¼” MNPT x 3/8” QC fitting into the center port of the pump. Insert 3/8” LLDPE
tubing into the 3/8” QC port of the fitting and run to drain access.
4. Be sure to install a 3/8” check valve on the drain line between the pump and drain access.
