11 Attachments
11.1 Attachment of the windrow maker
ThewindrowmakerismountedonthesideoftheframeoftheRadialSwee-
per. For this purpose, the connecting rod of the swath plate is inserted
slightlyatanangleintotheframe.Thewindrowmakerisxedinplaceusing
theillustratedspringpin.

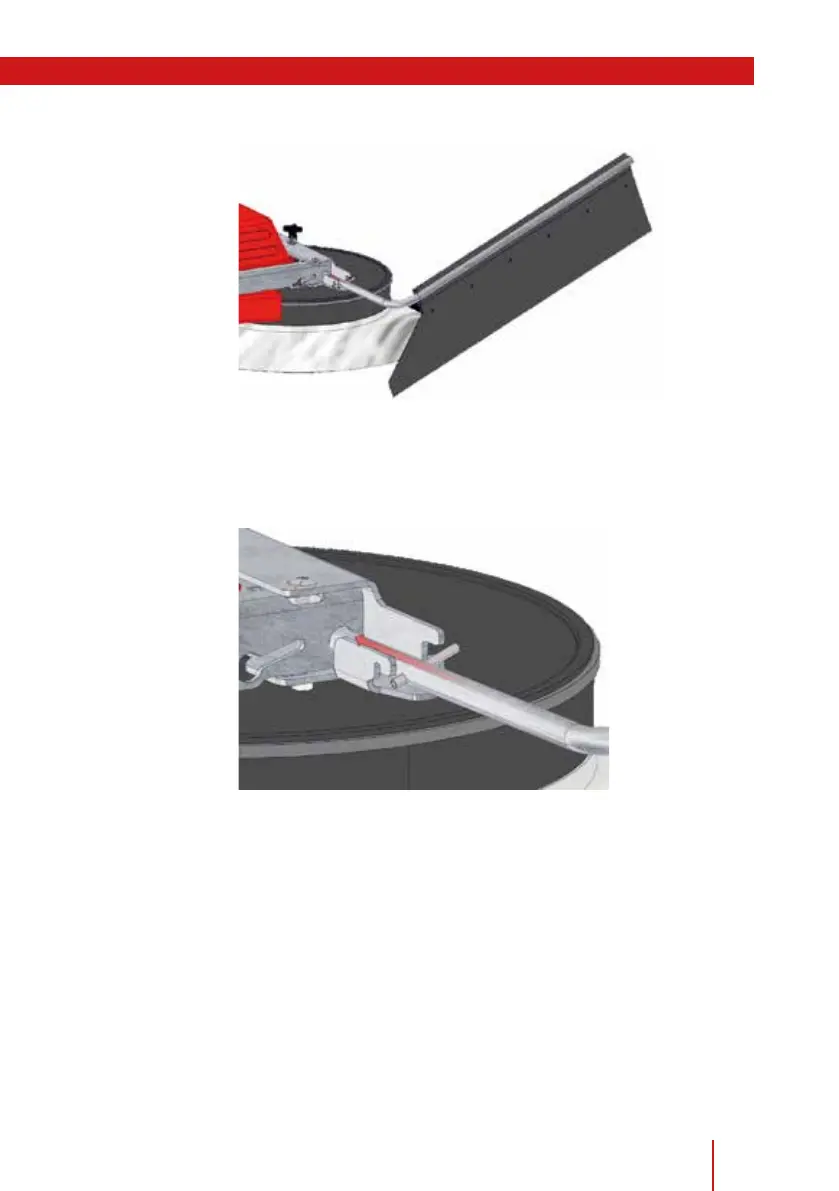

(Fig. 18 - Inserting the windrow maker)
(Fig. 19 - Locking the windrow maker)
