38
11 Attachments
11.2 Transport position of windrow maker
Iftheswathplateisnotneeded,itcanbeplacedonthemachineasshown.
Todothis,thelinkageoftheswathplateispulledoutoftheframeataslight
angle andthen inserted intothe rear slot.The swathplate then lieson the
handle.

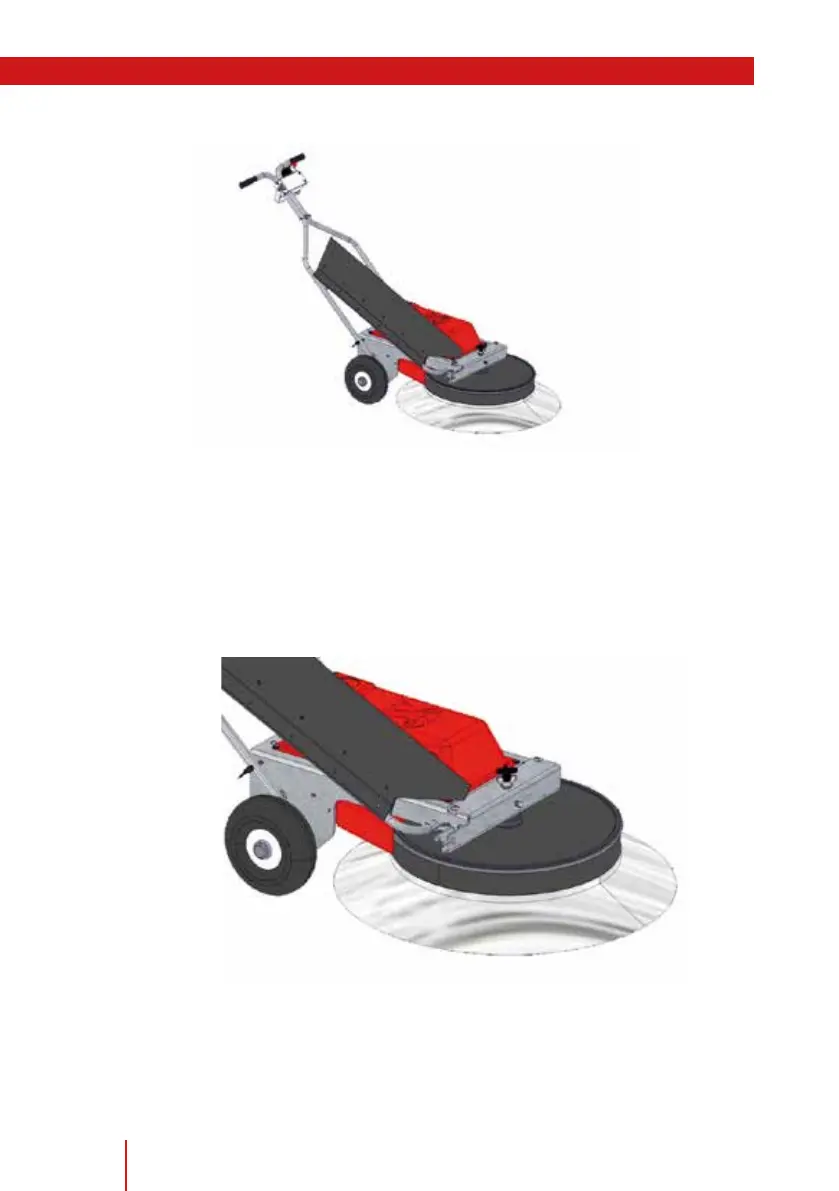

(Fig. 20 - Inserting the windrow maker)
(Fig. 21 - Locking the windrow maker)
