Instruction for use Examination and treatment table Easy Care
** Depending on model and configuration
D2151_01 - 09/2017 30/38
Order No..
Oxygen supply / Suction
1
WY1480
REANIMAT
®
O2-Blend
Precision oxygen/AIR-blender,
oxygen concentration adjustable 21 to 100 %, with on-off switch
(selected concentration is saved, so avoiding excessive gas
consumption),
application via precision oxyen/AIR flow meter,
flow adjustable 0 to 6 l/min., gas failure alarm.
Connection to oxygen and compressed air supply (central pipeline or
cylinders),
operating pressure 3 to 5 bar,
oxygen and AIR NIST fittings.
Incl. clamp for instrument rail 25 x 10 mm.

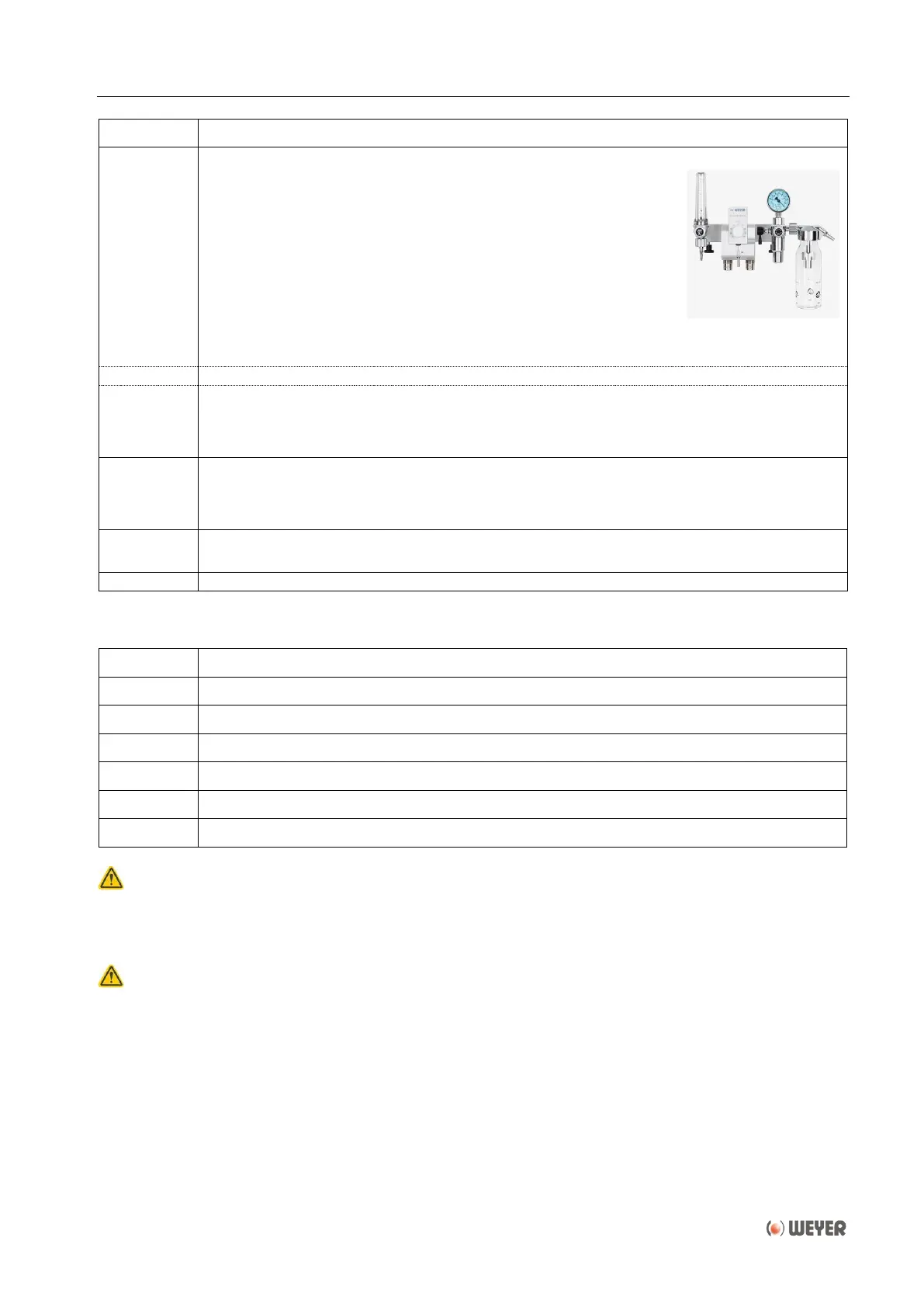

Picture with full options
WY1485
2nd take-off 0 to 6 l/min. for REANIMAT
®
O2-Blend
WY1490
Suction unit for compressed air operation for REANIMAT
®
O2-Blend.
Vacuum can be adjusted from 0 to 0.9 bar, with on-off switch (selected vacuum is saved, so
avoiding excessive gas consumption), suction capacity 27 l/min., incl. plastic suction bottle
250 ml, suction lid with float assembly, suction tube.
WY1620
Suction unit for compressed air operation, vacuum can be adjusted from 0 to 0.9 bar,
with on-off switch (selected vacuum is saved, so avoiding excessive gas consumption),
suction capacity 27 l/min., incl. plastic suction bottle 250 ml, suction lid with float assembly,
suction tube with fingertip and clamp for instrument rail 25 x 10 mm.
WY1604
Precision oxygen flowmeter for connection to central pipeline, pressure compensated,
flow adjustable 0 to 15 l/min., incl. pressure hose and clamp for instrument rail 25 x 10 mm.
WY1621
Bubble humidifier, connection to WY1604/WY1480 to WY1487
1
Pressure hoses are not included in the standard configuration. Please order separately.
Order No.
Gas supply
WY1421
Oxygen distributor, NIST input, 3 take-off sockets fixed at the instrument rail 25 x 10 m
WY1425
Air distributor, NIST input, 3 take-off sockets fixed at the instrument rail 25 x 10 m
WY1405
Oxygen pressure hose 1,5 m, white ISO 32, NIST fitting, plug DIN 13260
WY1406
O-2 pressure hose 1.5 m, neutral black, NIST fitting, plug DIN 13260
WY1407
Air pressure hose 1.5 m, black-white ISO 32, NIST fitting, plug DIN 13260
WY1408
Air pressure hose 1.5 m, neutral black, NIST fitting, plug DIN 13260
The "General requirements for the safety of medical electrical systems EN 60601-1-1 + Supplement A1"
must be observed. Furthermore the maximum permissible power consumption for additional devices is
specified at the take-off sockets and must be considered. The limit values of the total leakage currents must
be maintained.
It should also be considered that the distance to accessories, which are not fixed at the examination and
treatment table, will change and therefore connected lines and tubes might be pulled off.
