5. Assembly, adjustment, and disassembly
5.2.1. Assembling the front drive base and rear drive base
It is not safe to assemble the product with the battery installed in the main body. Be sure to assemble the unit
with the battery removed.

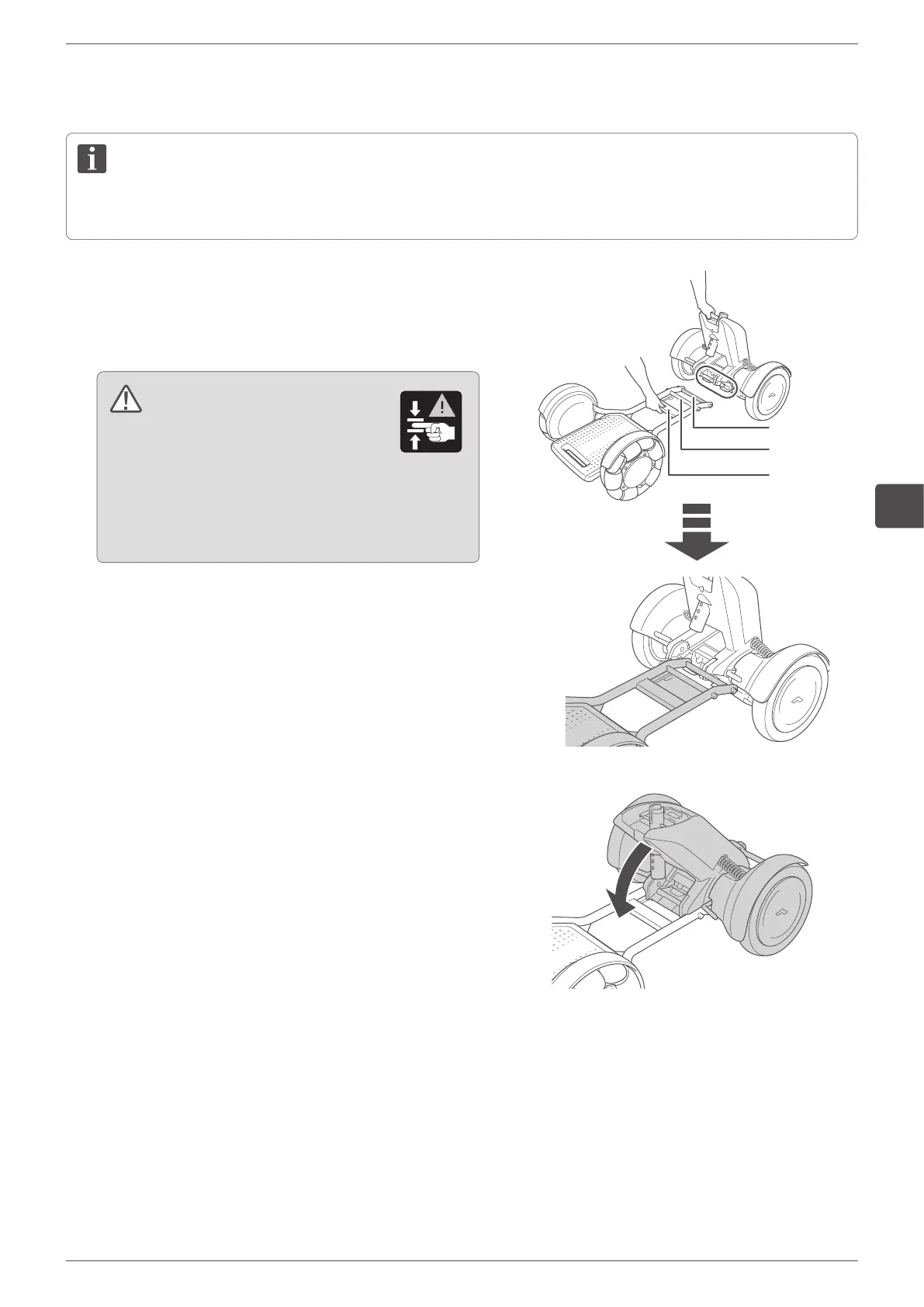

1.
Grab the handle in a central area of the front drive
base while tilting up the rear drive base. Then place
Bar B on the top of the front drive base on the hook of
the rear drive base by aligning them.
WARNING
Inserting a finger or other body part into
the connecting components and moving
parts of this device may result in an injury.
When assembling, adjusting, disassembling, and
transporting this device, do not touch any component
other than those indicated in the manual.
Bar B
Bar A
Rear drive
base
Front drive base
Handle
2.
Slowly tilt the rear drive base forward and connect the
front drive base and rear drive base.
The base release handle of the rear drive base is fitted
to Bar A of the front drive base and the two components
are locked when they are connected properly.
