WHILL Model F User Manual
2
2. About the device
Back support
Arm rest

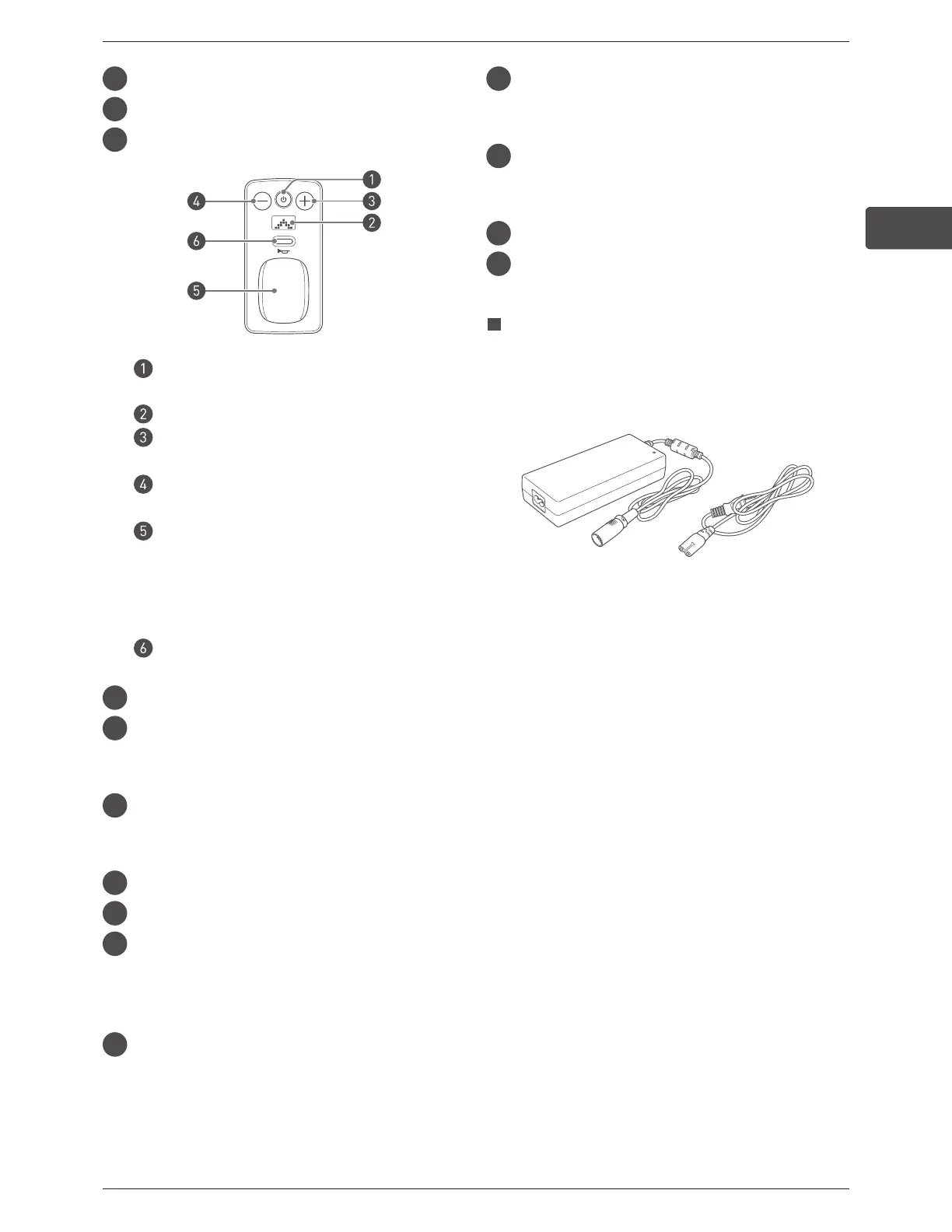

Controller
Power button
Turns on/off the device.
Display
Speed select button “+”
Increases the speed.
Speed select button “-”
Decreases the speed.
Joystick
Controls the forward, backward, left, and right
movements.
The degree of joystick inclination can also
control acceleration and deceleration.
Horn button
Turns on/off the sound.
Speaker
Lock release button
Releases the lock when folding or unfolding the
device.
Foot rest
Supports the user’s feet when the user is seated in
the device.
Front wheels
Arm
Brake release lever
Used to lock/unlock the brakes for the rear wheels.
This lever is located under the seat assembly.
There are two levers in total.
Battery
For details, refer to “4.1. Battery and charger
components” on page 58.
Anti-tip roller
This prevents the device from tipping over
backwards.
Foot pedal
Secures the device when folding or unfolding the
device.
Rear wheels
Hand rest
Charger
Used to charge the battery.
For details, refer to “4.1. Battery and charger
components” on page 58.
