3. Assembly and adjustment
3.2.5. Adjusting the height of the arm rest
CAUTION
When moving the arm up or down, be careful that your ngers do not become caught.
There is a risk of injury.
This following procedure introduces an example where the controller is installed on the right arm.

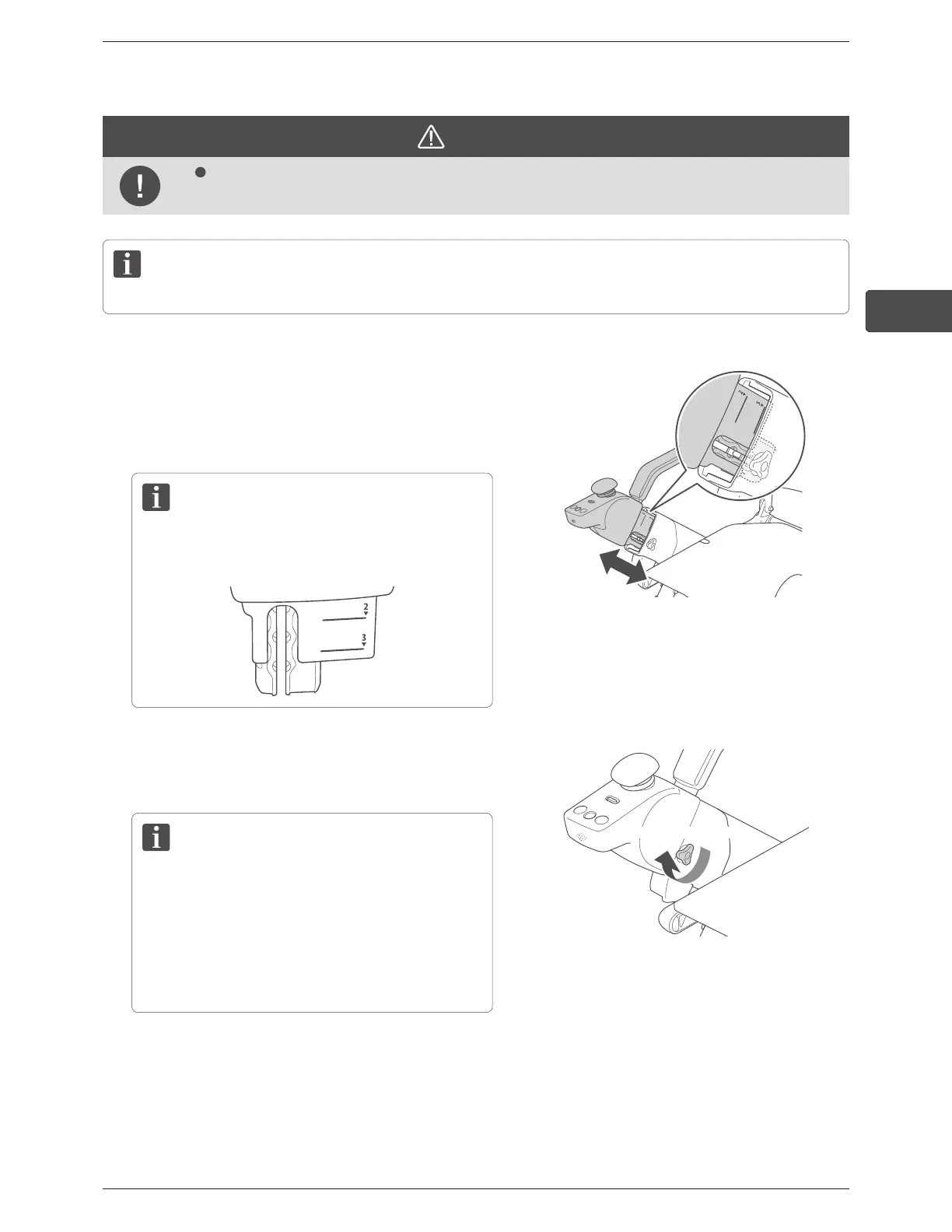

1.
Change and adjust the locking position of the arm rest
to the desired height.
Set the position so that the scale on the arm rest is
aligned with the upper end of the arm.
The height of the arm rest can be adjusted in 3
stages.
2.
Tighten the arm rest adjustment screw, and x the arm
rest in place.
• After adjustment is completed, try to slide the
arm rest up and down to confirm that it is locked
in place and does not slide.
• If rattling of the arm rest bothers you, further
tighten the arm rest adjustment screw with a
Phillips screwdriver.
Arm rest adjustment screw
3.
Adjust the height of the arm rest on the opposite side
in the same way.
