WHILL F - Connecting the Cable

44
WHILL Model F User Manual
3

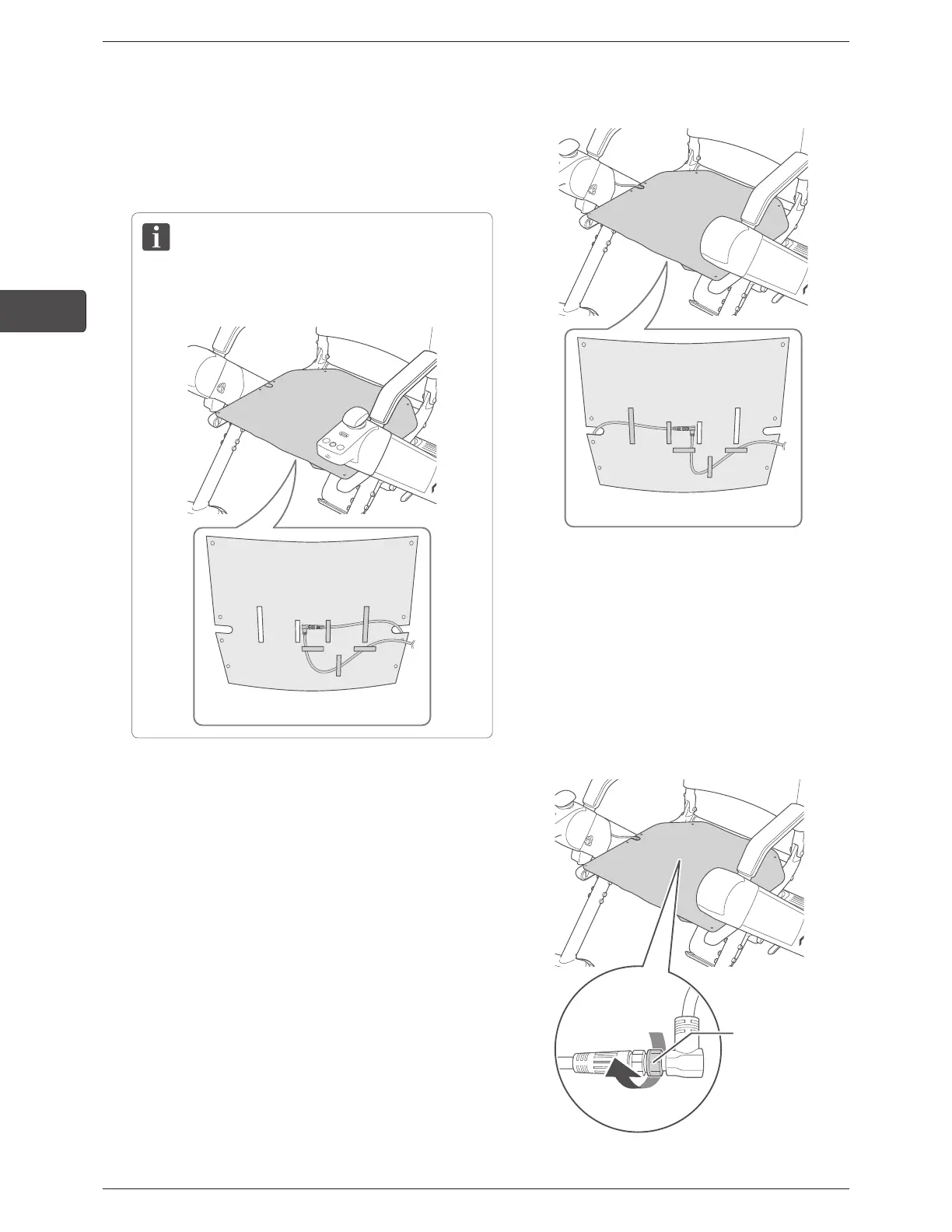

3.2.6. Connecting the cable
1.
Connect the cable.
Connect by passing the cable through the cable holding
bands under the seat.
When the controller is installed on the left arm, the
wiring method changes.
Underside of seat
Underside of seat
* The illustration shows wiring when the controller
is attached on the right side.
2.
Connect the connector of the cable.
Insert the connector with the arrows of the connector
aligned, then rotate the base lock of the connector
clockwise to lock it.
Base lock of the
connector
