WHILL Model F User Manual
3
3. Assembly and adjustment
3.

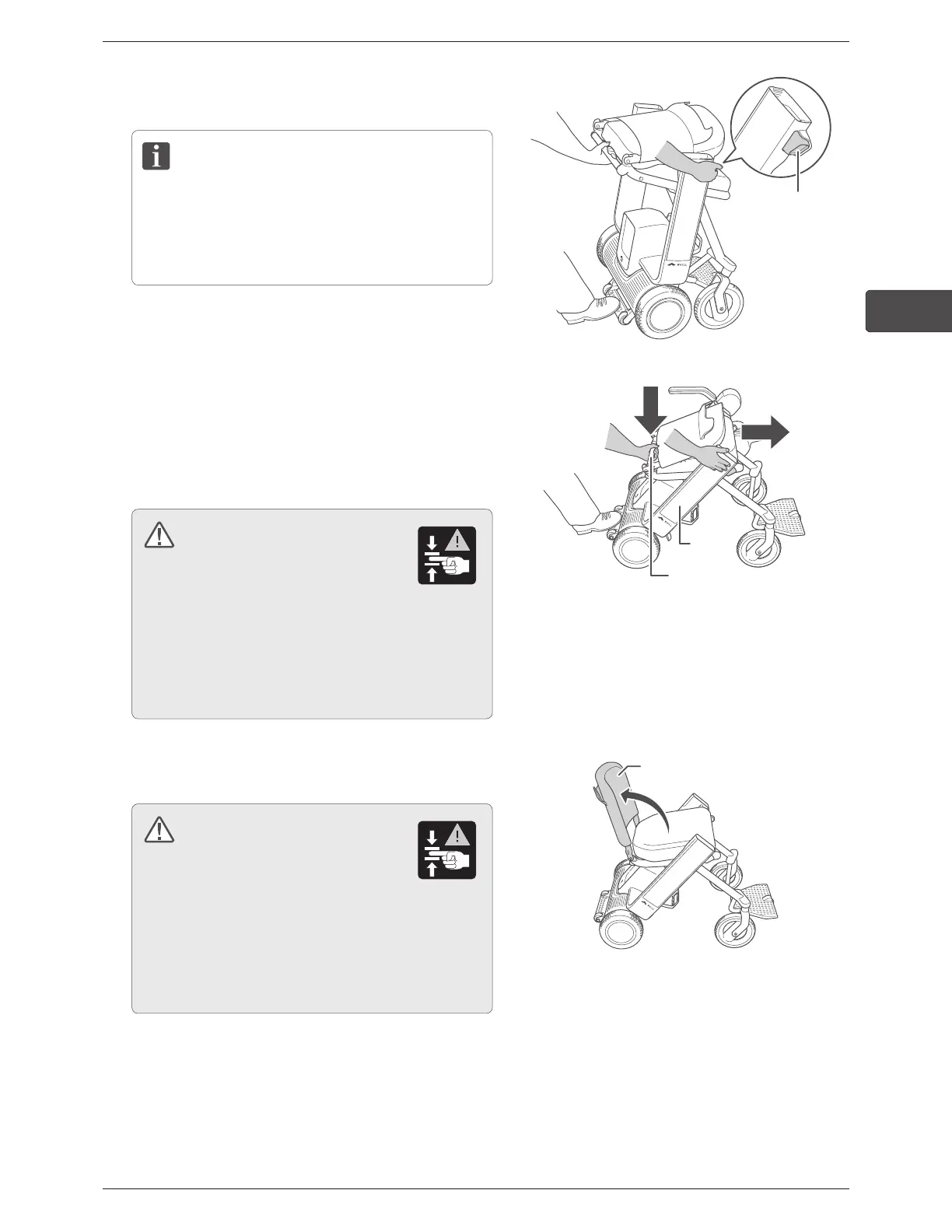

With the seat pipe pulled upwards, press the lock
release button.
To prevent malfunctioning of the lock release button,
the lock release button has been designed so that it
can be pushed in only when the seat pipe is pulled
upwards.
Lock release
button
4.
Lower the seat pipe, and when the device begins to
unfold, take your hand away from the lock release
button.
Open the device to the position where you hear a click
sound.
Warning
Inserting a finger or other body part into
the connecting components and moving parts of this
device may result in an injury.
When assembling, adjusting, and transporting this
device, do not touch any component other than those
indicated in the manual.
Device folds out
Seat pipe
Arm
5.
Tilt the back support backward.
Warning
Inserting a finger or other body part into
the connecting components and moving parts of this
device may result in an injury.
When assembling, adjusting, and transporting this
device, do not touch any component other than those
indicated in the manual.
Back support
