Whirlpool WFC8090GX - Removing the Top Panel

COMPONENT ACCESS
Whirlpool Smart All-In-One Washer & Dryer
n
4-3

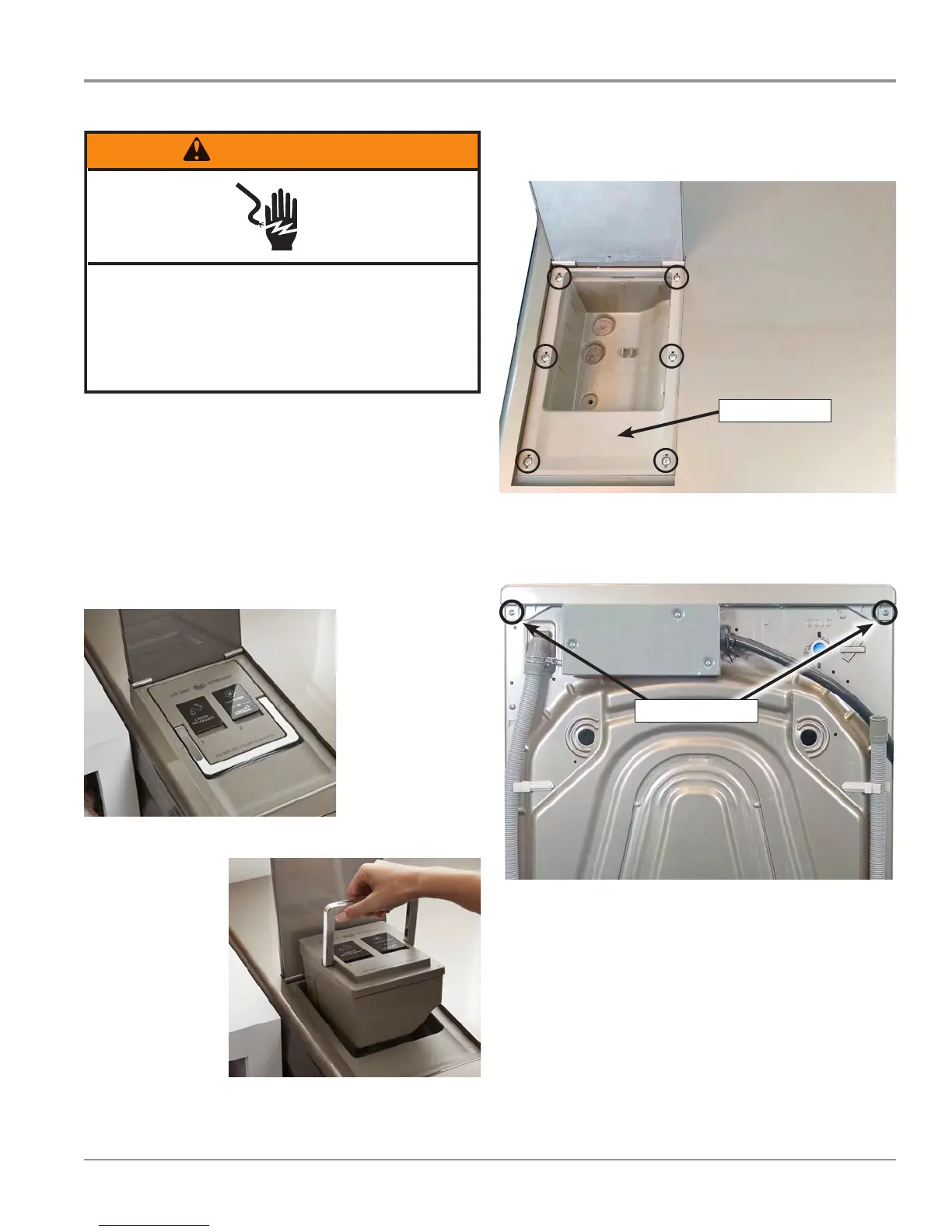

5. Next, remove the six screw covers surrounding the
dispenser bezel and then remove the (6) Phillips screws
(see Figure 3). Remove dispenser bezel.
Figure 3
6. Remove two (2) Phillips screws from the rear of the top
panel as indicated in Figure 4.
Remove 2 Screws
Figure 4
7. From the rear of the washer/dryer, pull back on top cover,
li up and remove.
Removing the Top Panel
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
To Remove the Top Panel
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect cold inlet water hose and remove the drain
hose from the standpipe or laundry tub.
4. Li up the bulk detergent lid and remove the bulk
dispenser container (see Figures 1 & 2).
Figure 1
Figure 2
Dispenser Bezel
