Whirlpool WFC8090GX - Removing the Rfi Filter

4-14
n
Whirlpool Smart All-In-One Washer & Dryer
COMPONENT ACCESS
Removing the RFI Filter
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

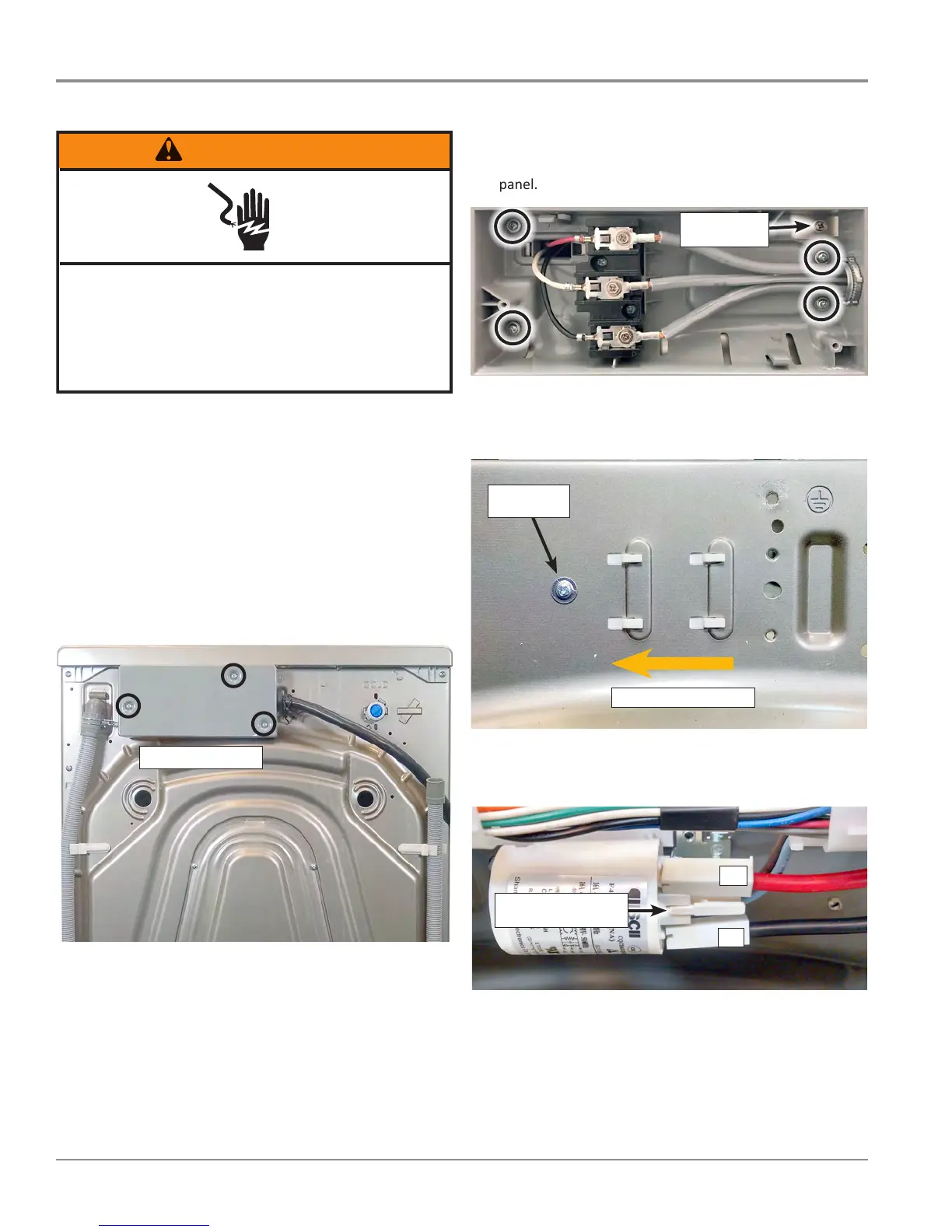

To Remove the RFI Filter
1. Unplug washer or disconnect power.
2. Turn o water supply to washer.
3. Disconnect cold inlet water hose and remove the drain
hose from the standpipe or laundry tub.
4. Perform the procedures on page 4-3, “Removing the Top
Panel” prior to performing the following steps.
5. Using a Phillips screwdriver, remove the three (3) screws
indicated in Figure 1. Remove terminal box cover.
Remove 3 Screws
Figure 1
6. Inside the terminal box, remove the four (4) Phillips
screws securing the terminal box to the rear panel (circled
in Figure 2).
7. If a 4-Wire power cord is connected, use an 8 mm driver
to remove the grounding screw and ground wire (see
Figure 2). Gently, pull the terminal box away from the rear
panel.
Ground Wire
Screw
Figure 2
8. Remove the Phillip screw and slide the RFI Filter to the le
to disengage from rear panel (see Figure 3).
Slide lter to remove
Remove 1
Screw
Figure 3
9. Disconnect the RFI’s Filter’s L1 and L2 terminals, and
output connector to ACU (see Figure 4).
L1
RFI Output to ACU
Brown: L1, Blue: L2
L2
Figure 4
10. Reverse procedure to reinstall the RFI Filter.
