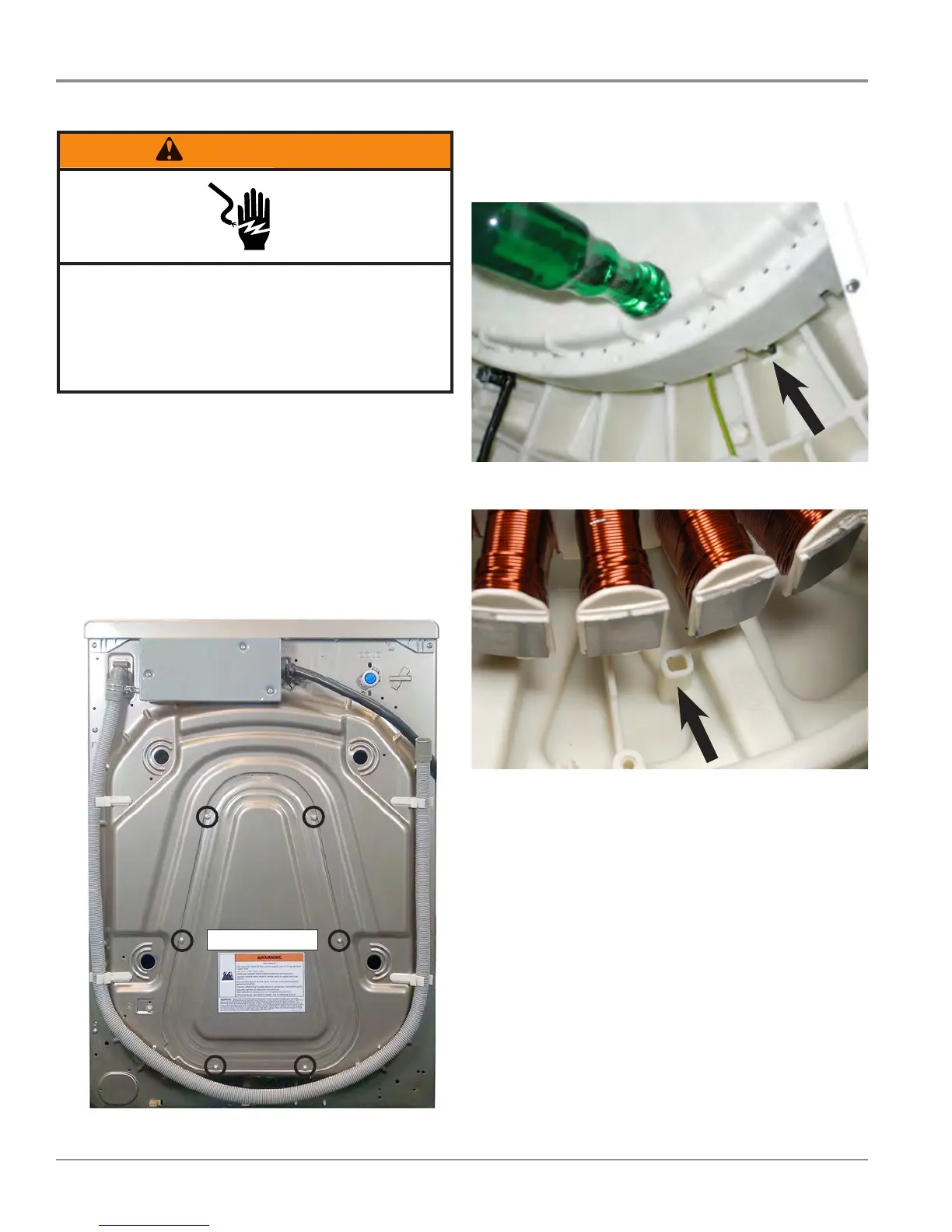

Whirlpool WFC8090GX - Removing the Direct Drive Motor

4-20
n
Whirlpool Smart All-In-One Washer & Dryer
COMPONENT ACCESS
Removing the Direct Drive Motor
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
To Remove the Drive Motor
1. Unplug washer/dryer or disconnect power.
2. Turn o water supply to washer/dryer.
3. Disconnect cold inlet water hose and remove the drain
hose from the standpipe or laundry tub.
4. Remove six (6) Phillips screws securing the rear access
panel to the back panel as indicated in Figure 1. Remove
rear access panel.
Remove 6 Screws
Figure 1
5. Block the rotor by inserng a small 4 mm at-blade
screwdriver into the slot at the back of the rotor as
illustrated in Figure 2. Align slot in rotor with receptacle
on back of tub (see Figure 2 & 3).
Figure 2 - Lock Rotor Slot
Figure 3 - Lock Rotor Receptacle
