37 / 65
www.wireless-tek.com

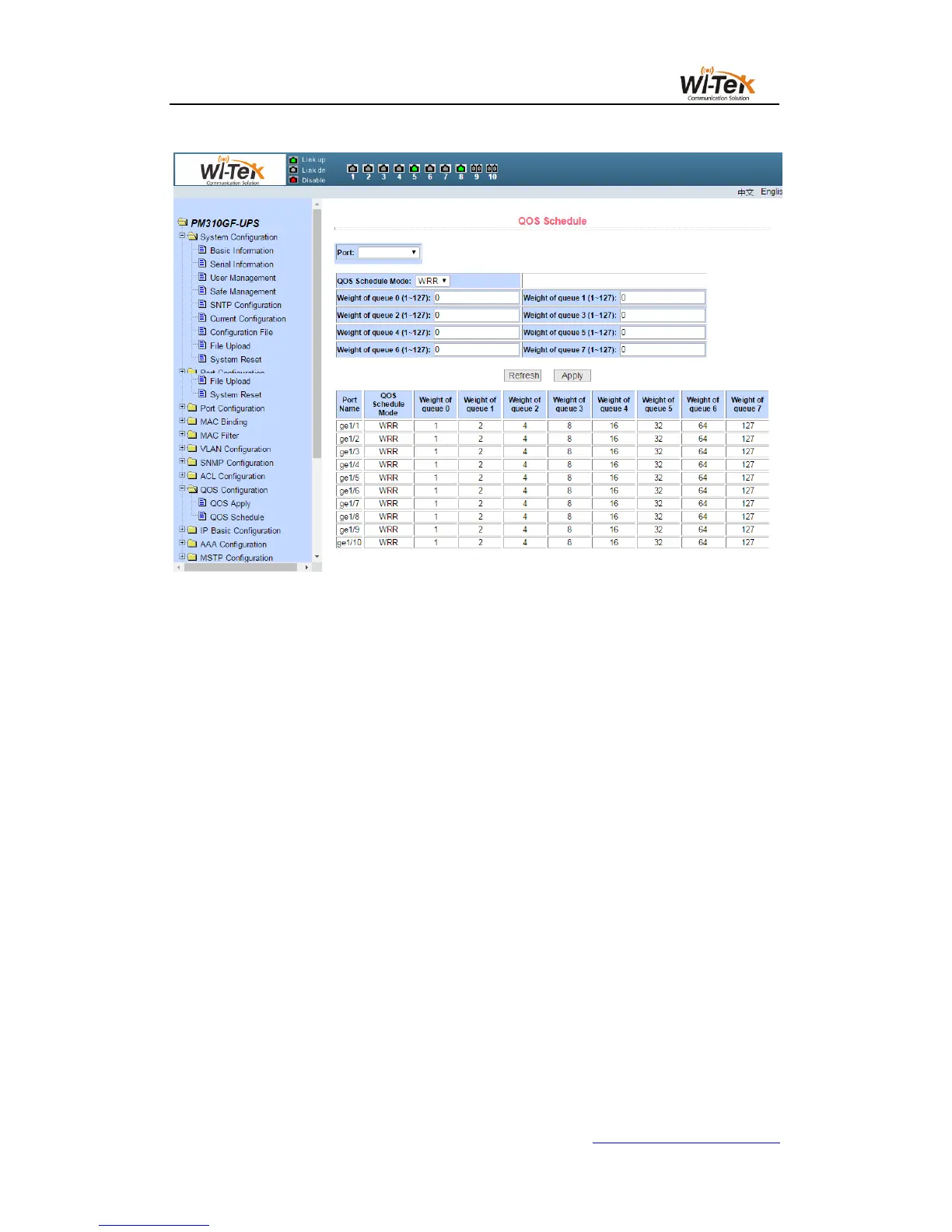

Pic 37 Qos schedule page
10、ACL configuration
（1）ACL standard IP configuration page
Figure 38 shows the ACL standard IP configuration page. You can use this page to create
a rule base for ACL standard IP. The user can select an ACL group number (range between
1-99, or 1300-1999) to create one or more rules in the group. Fields that can be matched in a
rule have only source IP addresses (with mask).
