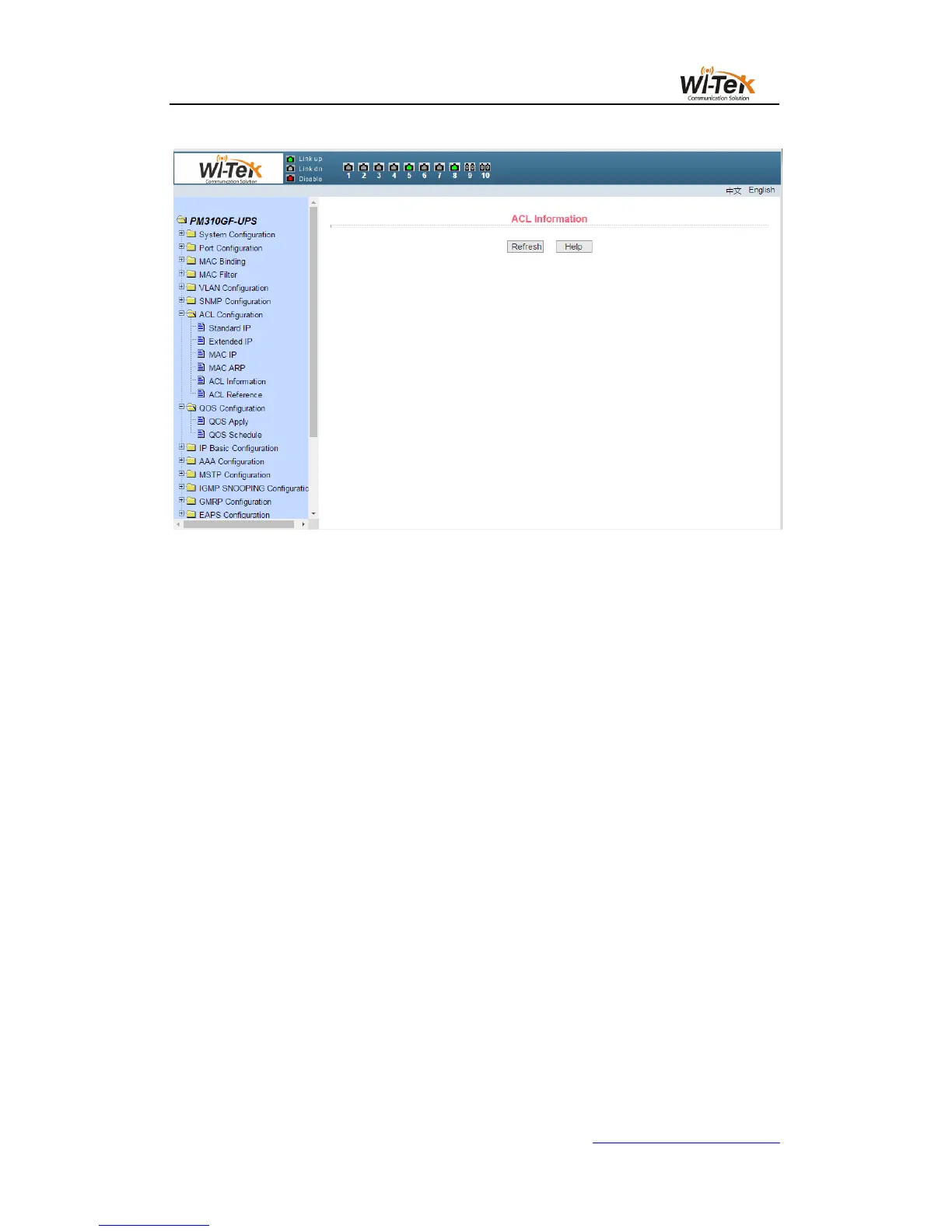

Pic 42 ACL resource information page
（6）ACL reference configuration page
Figure 43 shows the ACL reference configuration page. You can use this page to select
an ACL group for a port and write the rules in this ACL group to the port hardware logic to
enable the port to perform ACL filtering on the received packets according to these rules.
When selecting an ACL group on a port, you can select the IP standard, IP extension,
MAC IP, and MAC ARP ACL. The selected ACL group must exist. Select the ACL rule group
list and press the Add key. When deleting an ACL group, select an ACL group from the list of
referenced rule groups and press the Delete key.
