Check Client, whether to check the client's timing traffic package after
authentication has passed.

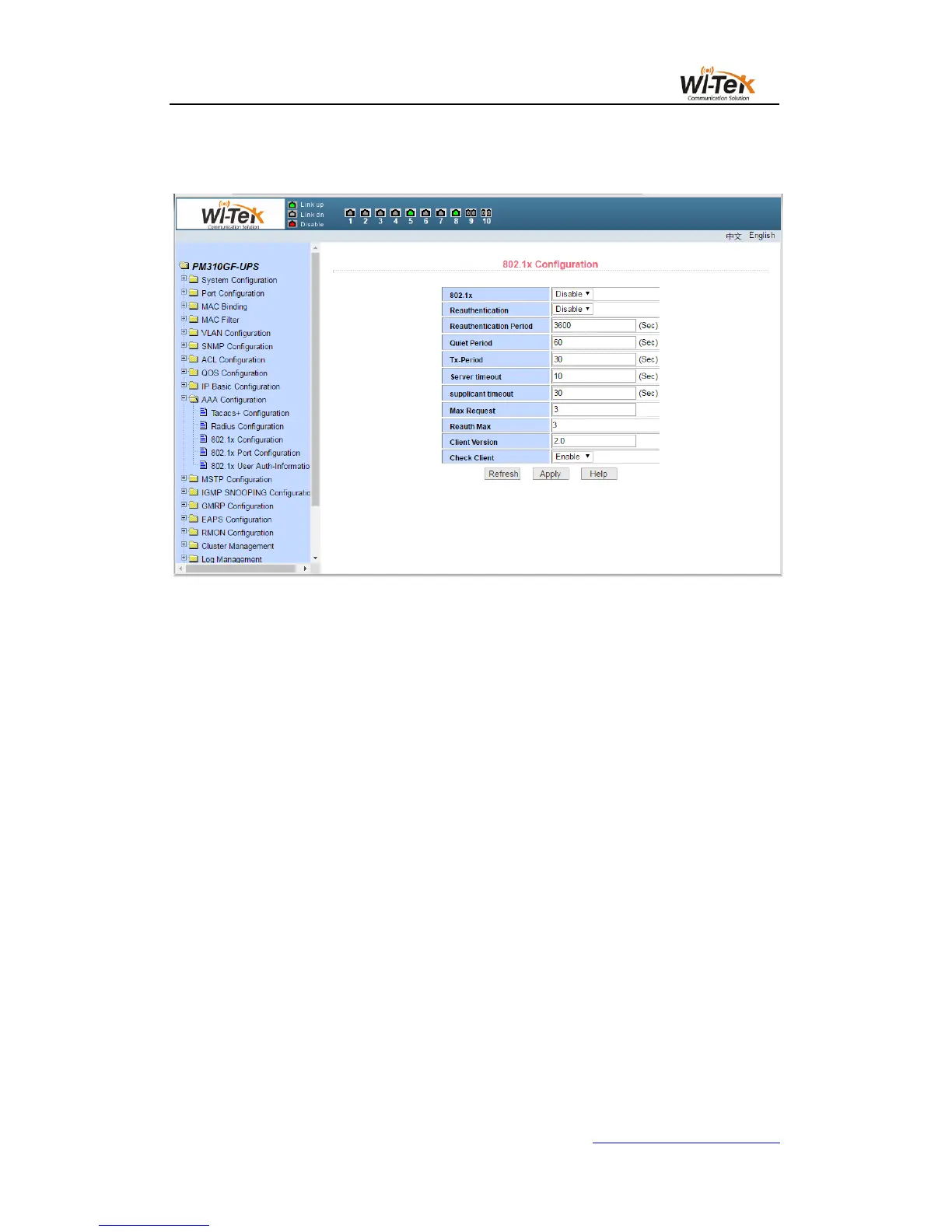

Pic 49 802.1x configuration page
（4）802.1x port configuration page
Figure 50 shows the 802.1x port configuration page. You can configure 802.1x port mode
and the maximum number of hosts that can be configured. You can also view the 802.1x
configuration of each port.The 802.1x port mode includes four types: N / A status, Auto state,
Force-authorized status, and Force-unauthorized status.当When A port needs to be done to
802.1 x authentication, to the state of the port is set to Auto, if don't do certification can access
the network, the state of the port is set to N/A, the other two state are seldom used in practical
application.
