widos 5500 - Page 31

Kunststoffschweißtechnik
Foundation: 2207, 2208 DIN 16932 German association for welding
Use for: 5100 OD 200 - 450
5500 OD 200 - 500
The data in the colored, labeled arrays are interpolated, no garantee, based on DVS 2207 part 11
1 bar on manometer: 141 N
time to
change- reach full
over welding cool-down time
0,10 (PP) time pressure
pressure in
Tdesired
temperature
time
pipe pipe SDR bead-up circular heat-up max. time welding cool-
diameter wall pressure bead time change- to reach pressure down
OD (s) [bar] min. [s] over welding [bar] time
[mm] [mm] [mm] time pressure [min]
[s] [s]

in welding area
The smaller the pipe wall the higher the temperature.
P (N/mm²)
bead-up heat-up

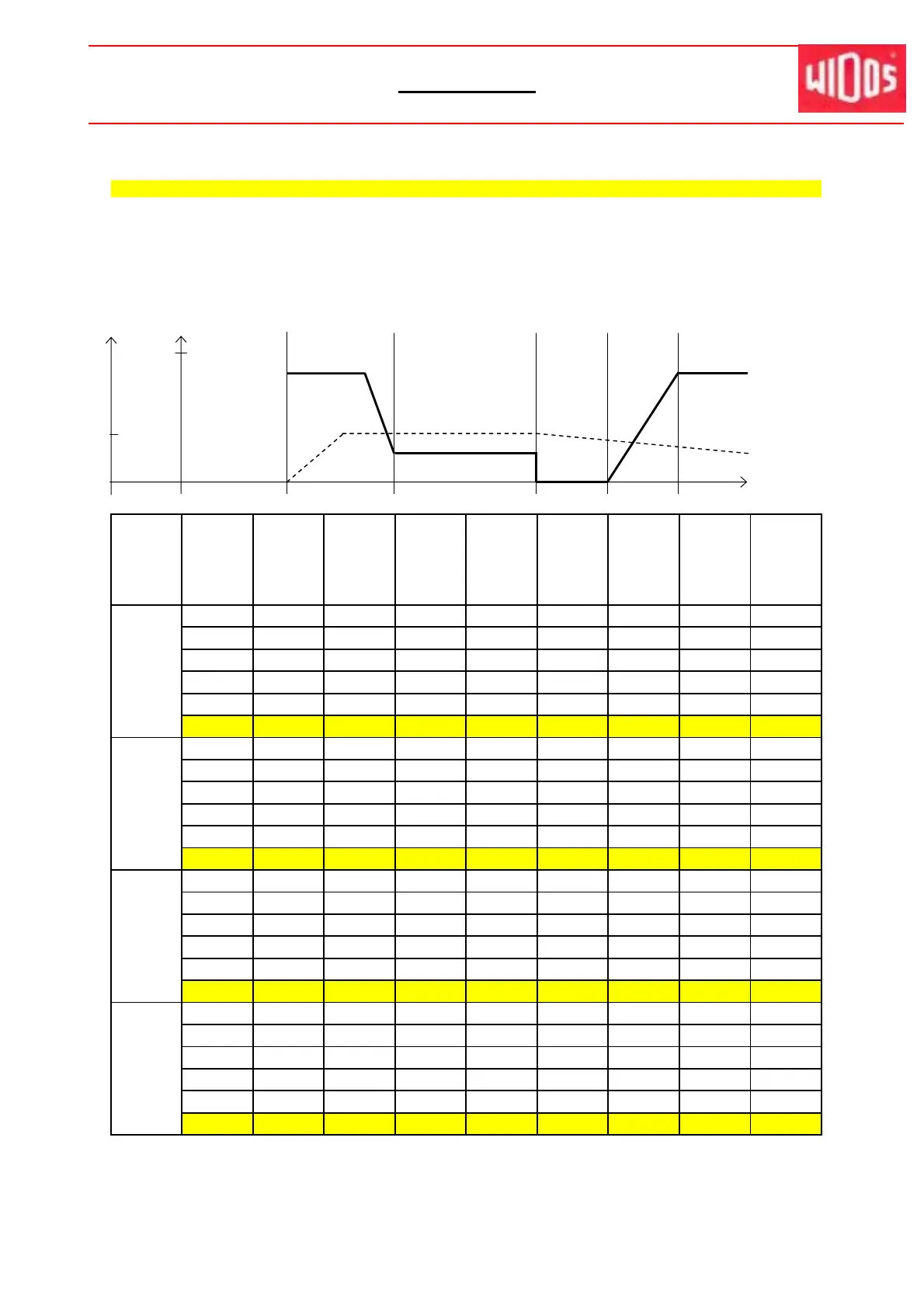

Table for PP
Additional to the given bead-up force and to the welding force the moving force of the support must be added !
The standard value for heating element temperature is 210° C +/- 10° C.
welding area
315 7,7 41 6 1,0 185 6 8 6 13
315 9,7 33 7 1,0 213 7 9 7 16
315 12,1 26 9 1,0 246 7 11 9 20
315 17,9 17,6 12 1,0 317 9 16 12 28
315 28,6 11 19 2,0 420 12 24 19 44
315 42,6 7,4 26 2,5 517 15 37 26 61
355 8,7 41 7 1,0 199 6 8 7 15
355 10,9 33 9 1,0 230 7 10 9 18
355 13,6 26 11 1,0 264 7 12 11 22
355 20,1 17,6 15 1,5 341 9 18 15 32
355 32,2 11 24 2,0 448 13 28 24 48
355 48,0 7,4 33 2,5 548 17 41 33 68
400 9,8 41 9 1,0 214 7 9 9 16
400 12,3 33 11 1,0 249 7 11 11 20
400 15,3 26 14 1,0 221 7 10 14 17
400 22,7 17,6 20 1,5 367 10 20 20 35
400 36,3 11 30 2,0 480 14 31 30 54
400 54,1 7,4 42 3,0 576 18 46 42 74
450 11,0 41 11 1,0 231 7 10 11 18
450 13,8 33 14 1,0 267 8 13 14 23
450 17,2 26 17 1,0 308 8 15 17 27
450 25,5 17,6 25 1,5 395 11 22 25 39
450 40,9 11 38 2,5 508 15 35 38 59
450 60,8 7,4 53 3,0 603 19 52 53 81
17.02.2014 Working instructions WIDOS 5500 Page 27 / 2 of 48
