Windhager LogWIN - Information Text; Combustion Chamber Temperature; Top Accumulator Temperature

13
2. Operation

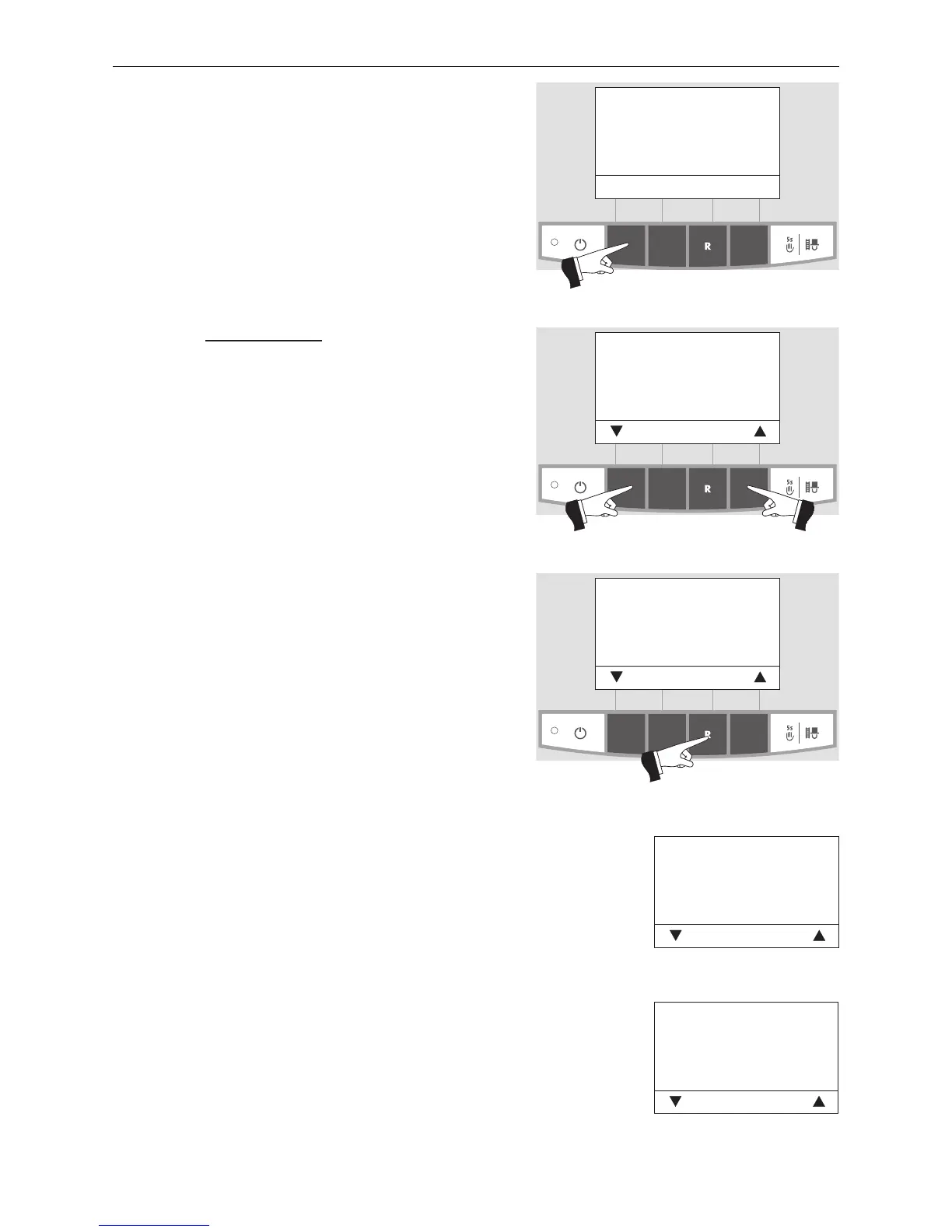

Fig. 23
Boiler temperature
(Operating phases)
Info Menu
42
°C
Fig. 24
Combustion chamber
temperature
Back
578
°C
The following information texts exist:
– Combustion chamber temperature (°C)
– Top accumulator temperature (°C)
– Bottom accumulator temperature (°C)
– Flue gas temperature (°C)
– Operating hours (h)
– Number of start
– Display module software version
– Automatic firing device software version
– Boiler model of wood gasification boiler
Fig. 25
Accumulator-temp. top
Back
70
°C
Fig. 26
Combustion chamber
temperature
Back
578
°C
2.5.1 Combustion chamber temperature
The current temperature in the boiler’s combustion chamber is displayed.
Fig. 27
Accumulator-temp. top
Back
70
°C
2.5.2 Top accumulator temperature
The top accumulator temperature is only displayed in combination with an
accumulator tank and the MESplus thermal distribution module WVF+ with
connected sensor.
2.5 Information text
Pressing the Info button or going to Menu è Information
level, calls up the most important boiler information –
Fig.23.
The arrow buttons select and display sub-menus – Fig. 24.
Pressing the Back button (Fig. 25) or waiting 45 seconds
returns to the standard display.
