2. Operation
2.2 InfoWINplus
The InfoWINplus is a central operating and display unit for boilers and for modules of the MESplus system control
(see separate instructions).
It consists of a large full text display, an ON/OFF button with an LED signal lamp indicating Operation (green) or
Malfunction (red), a button for manual operation / flue cleaning function as well as four individual menu buttons.
The function of each menu button is displayed on the Menu line.

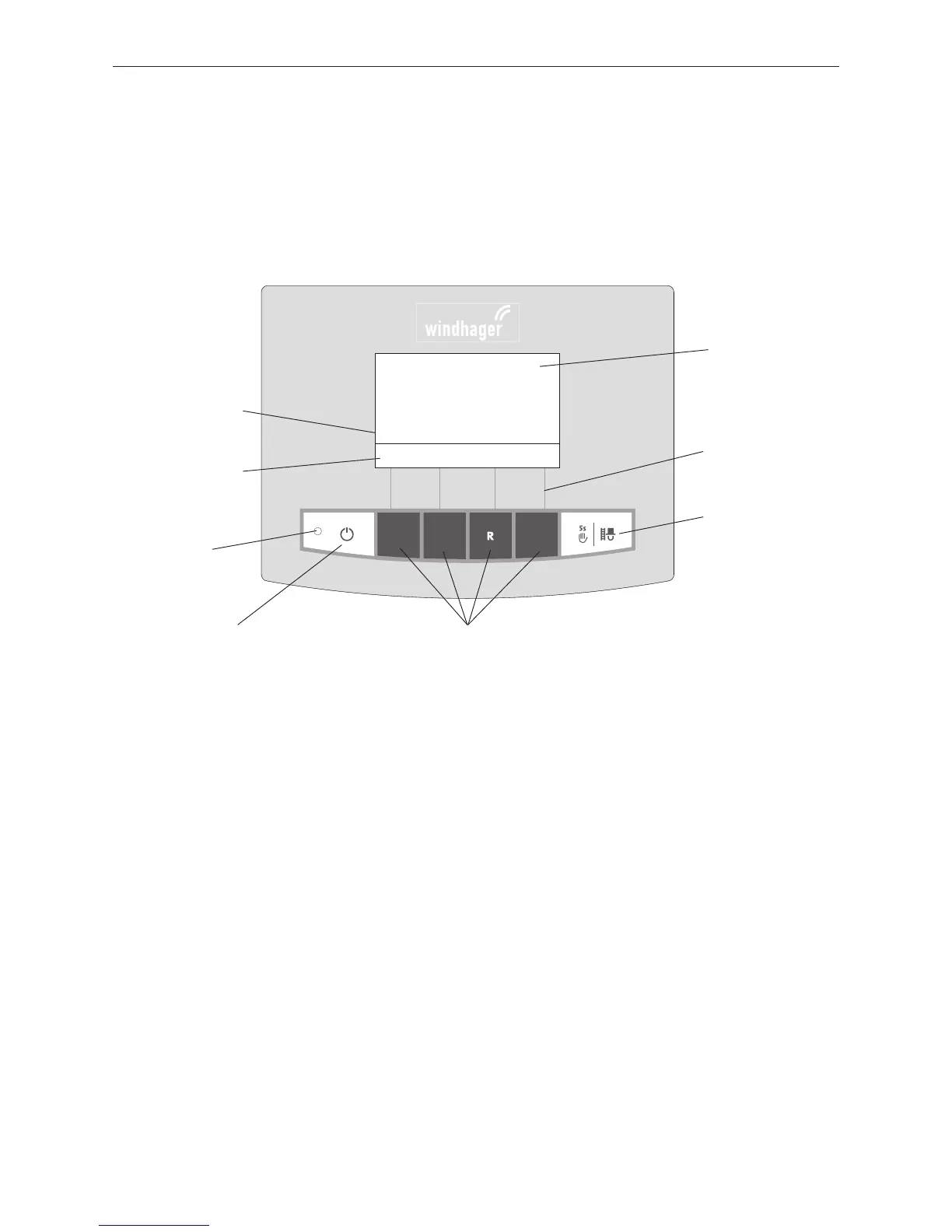

Fig. 4 InfoWINplus
Kesseltemperatur
Standby
Info Menü
38
°C
Operating phases are
displayed here, inclu-
ding Standby, Burner
OFF, etc.
Menu line
Signal lamp (LED)
“Operation” green
Full-text display
(illuminated display)
Assignment of buttons to
their specific function
Manual operation and
Chimney sweeper function
ON/OFF button Menu buttons
Colours of backlit display:
– White: Normal operation
– Pink: Information and fault messages
– Red: Alarm message
