Windhager LogWIN - Operation; Functional Elements and Operating Controls

7
2. Operation
2. Operation
2.1 Functional elements and operating controls

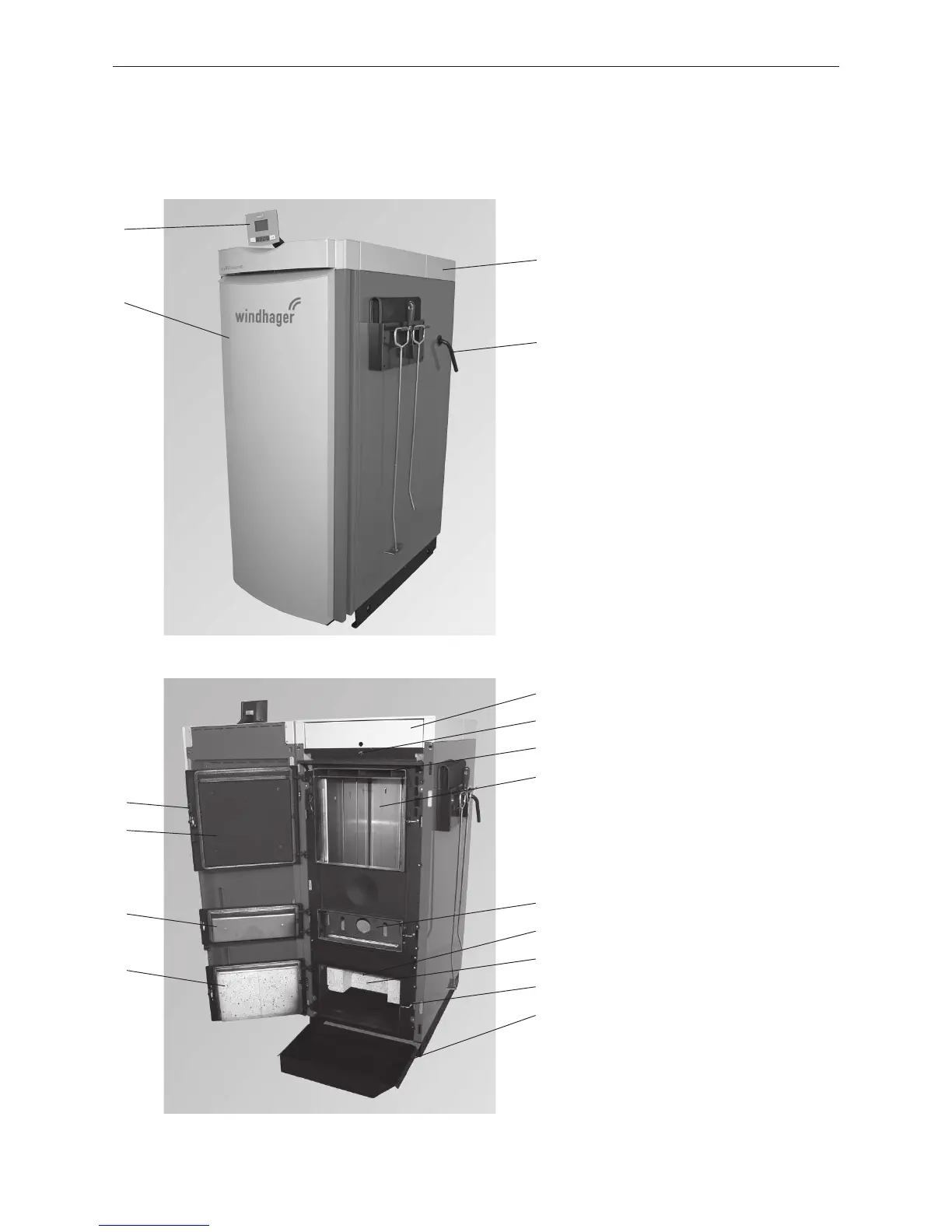

Fig. 2 LogWIN 180 – 505
Fig. 3 LogWIN; open filling, lighting and ash door
2
1
8
7
6
5
3
4
1 ........... Cladding door
2 ........... InfoWIN
3 ........... Boiler cover at rear – the cleaning cover
for coasting surfaces is underneath
4 ........... Lever for cleaning heating surfaces
9
10
11
12
13
14
15
16
17
Supplied as standard:
– Folder containing instructions
– Poker
– Scratcher
– Cleaning brush
– Spatula
– Ash pan
– Hanger (for installation on the wall
or Log- WIN side panel)
5 ........... Ash door
6 ........... Lighting door
7 ........... Filling door
8 ........... Hook catch for filling door
9 ........... Cladding flap – the MES modules, rating
plate, fuses and safety temperature
limiter are underneath
10 .........Cladding door switch
11 .........Carbonisation gas extraction
12 .........Filling chamber with hook-in plates
13 .........Vertical grate
14 .........Thermocontrol sensor
15 .........Combustion chamber
16 .........Ash chamber
17 .........Ash pan
