6400 Reference Manual
22
Cables
The 6400 analyzer kit comes standard with two cable types. Optional cables are available for purchase
separately.

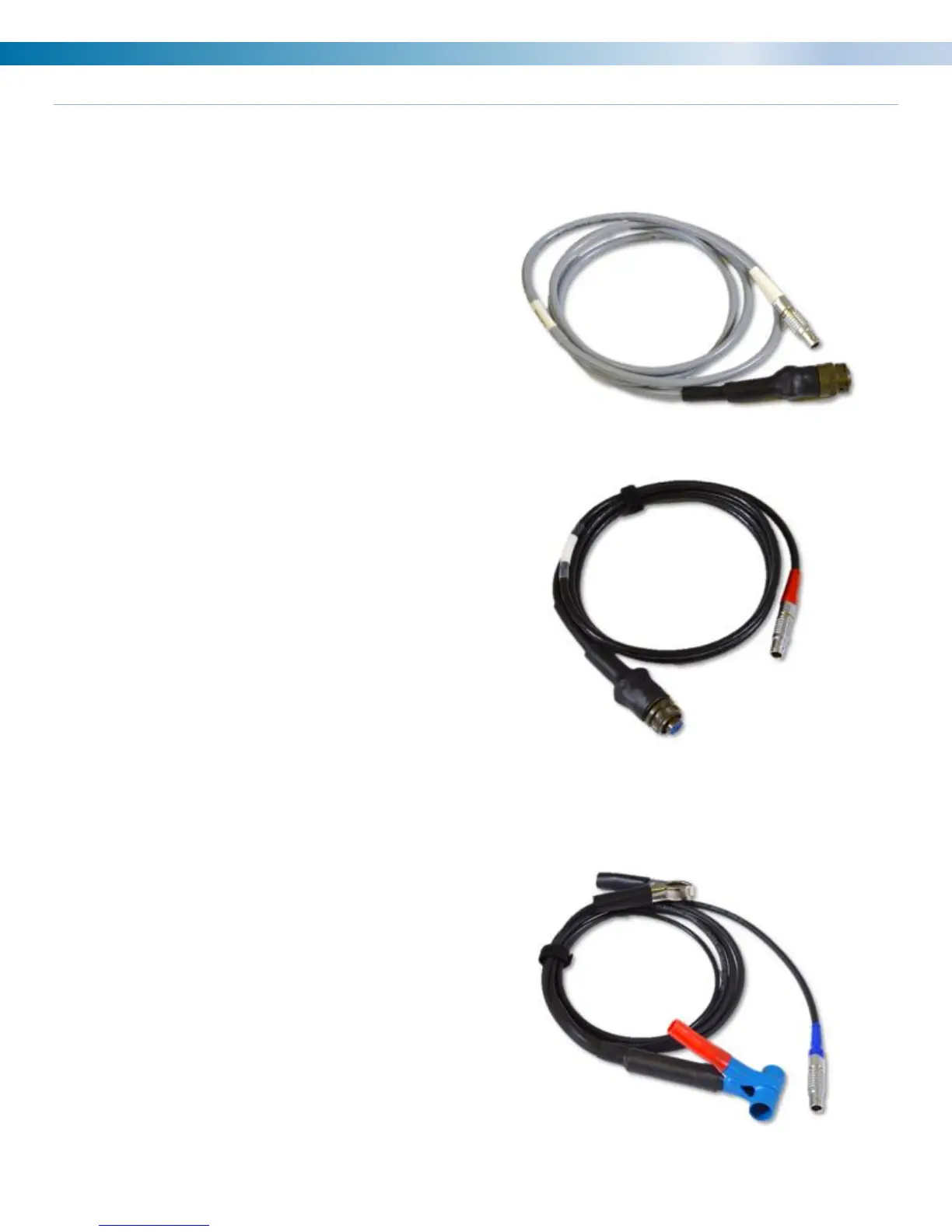

Multipurpose (A6460-CBL-0-06) (White End)
Used for connection of the following end devices:
• Pressure Sensors
• Ultrasonic/IR Sensor
• Timing Light
• Proximity Kit
Vibration (A6468-CBL-0-06) (Red End) Used for
connection of the following end devices:
• Accelerometer
• Velocity Sensor
• Mag P/U for encoder
• Proximity Kit
Optional Cables
• Secondary Ignition Clip (A6470-00-06) (Blue
End) – Used for collecting spark data.
Note: 6320 Secondary Ignition clip is not
compatible with the Windrock 6400 analyzer.
• Primary Ignition Cable – Not Pictured
• Low Voltage Cable – Not Pictured
• Accel w/ BNC – Not Pictured
• Encoder Cable (A6464-CBL-0-50) – Not
Pictured.
