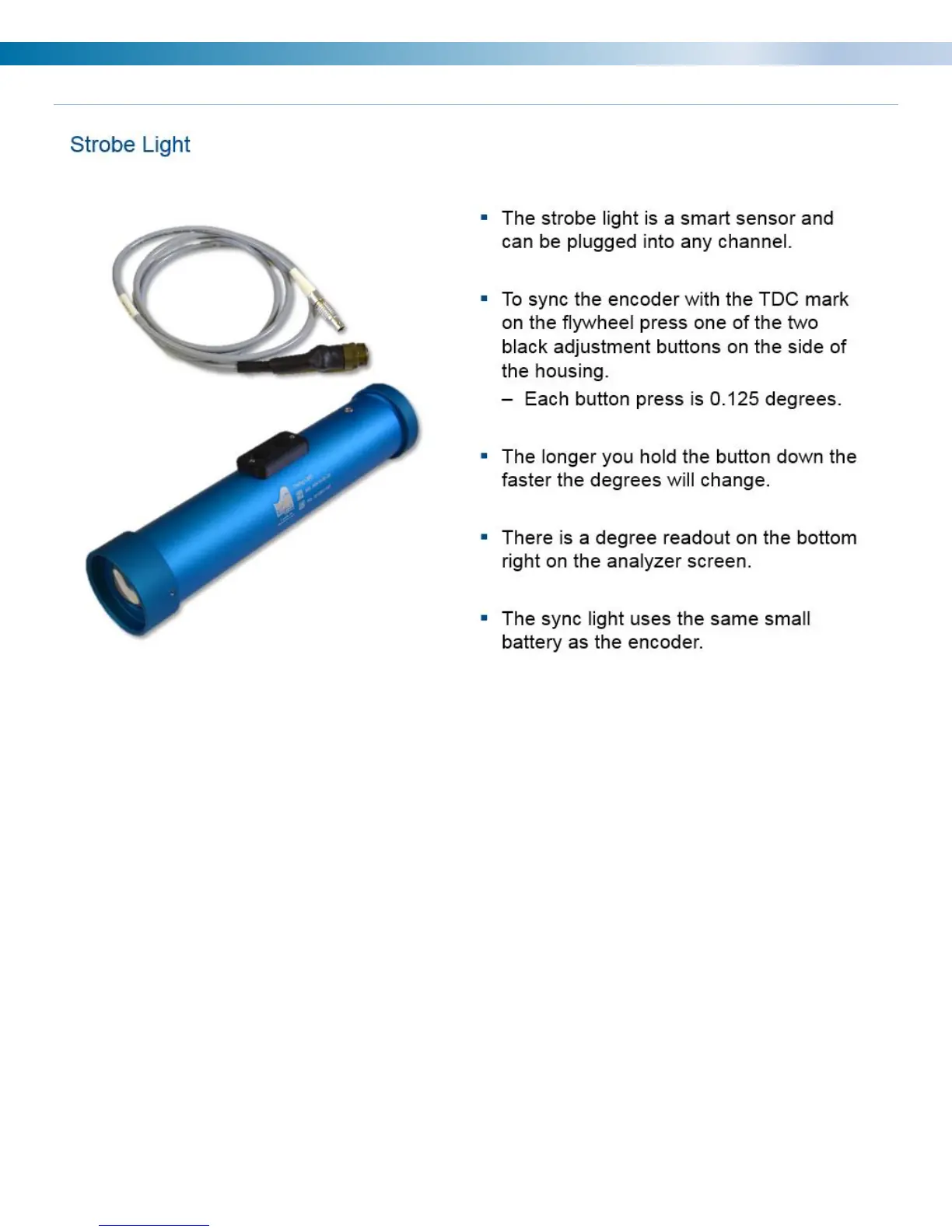

Strobe (Timing) Light
When using a permanently mounted magnetic pickup you can make a note of the degree offset from the
bottom right of the screen and enter this offset into the machine geometry setup.
Note: The analyzer currently retains the last degree offset that was set using the timing light. If using a
permanently mounted magnetic pickup located at TDC be sure to set the strobe light offset to 0.00 degrees
prior to taking data.
Note: The strobe light begins flashing as soon as it is plugged into the analyzer. Be sure to deactivate any fire
eyes, etc. that could be tripped in the immediate area of the machine prior to usage.
