6400 Reference Manual

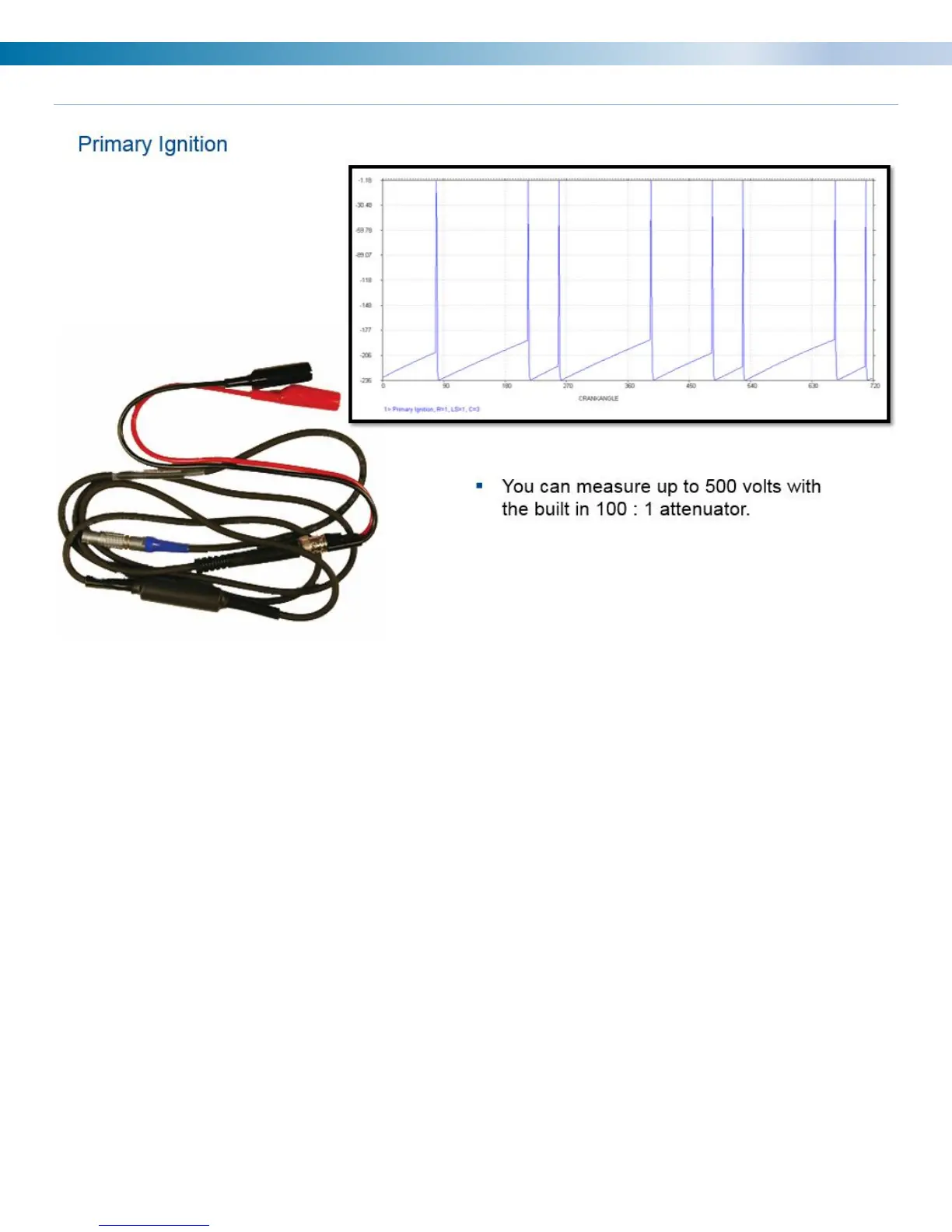

Primary Ignition

The primary ignition pick-up is used to capture and accurately measure primary ignition voltage when access is

readily available.

You can measure up to 500 volts with the built in 100 :1 attenuator.

The primary ignition pick-up is clipped to the N, G, P, V or other lead in the junction box depending on the

ignition system using the red alligator clip. The black lead is connected to engine ground for zero voltage

reference and to complete the measurement circuit.

Note: Due to the design of most newer engine packages the ability to take primary ignition data is not always

accessible.
