Windrock 6400 - Ultrasonic Gain Adjustment Examples; Interpreting Ultrasonic Traces

6400 Reference Manual
33

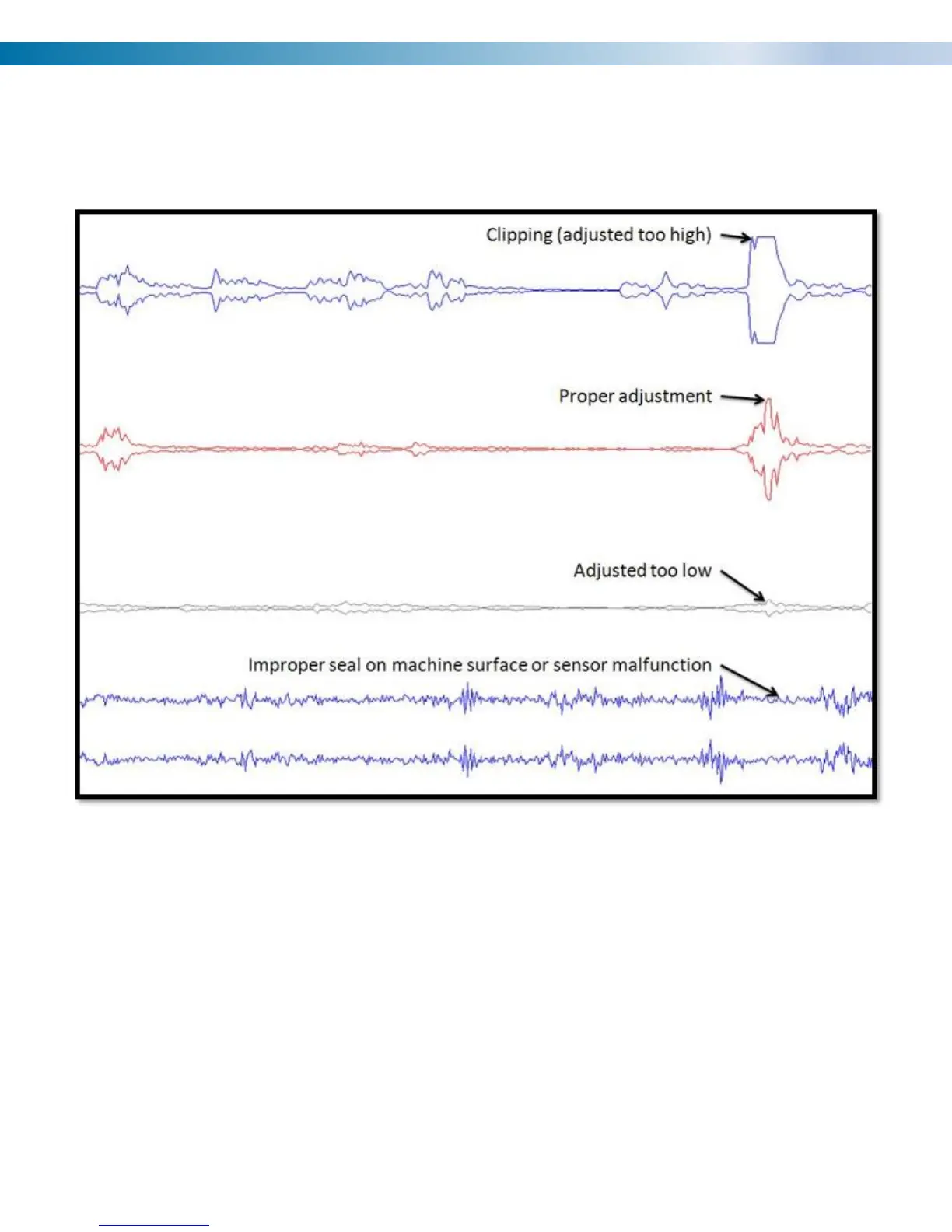

The following example illustrates the various data trace representations that may be observed while adjusting
the ultrasonic gain and should be used for comparison when setting the ultrasonic gain to an acceptable level.
