48 86333220 CS20
Maintenance
Preparation for Loading/Unloading Trailer
Before loading or unloading machine from trailer, remove squeegee and scrub brush (pad) to eliminate interference
with ramp.
Scrub head must be in the up position before loading.
When transporting the machine on a trailer or in a truck, in addition to using tie-downs, be sure to block the tires to
prevent the machine from rolling.
Machine Tie-Downs
There are two tie points located in front of the rear wheels on the frame, and a Tie-down wrap point on the recovery
tank. Tie-down devices must be of the proper type and strength. The combined strength of all tie-downs must be
strong enough to lift two times the weight of the machine. Tie-downs must be positioned to prevent the machine
from moving forward, backward, or either side to side. Use all four corners of the machine with the tie-downs
running out opposite directions. Tie-downs must be attached to the transporting vehicle securely.
CONNECT
AT
FRAME
VIEW FROM
BOTTOM

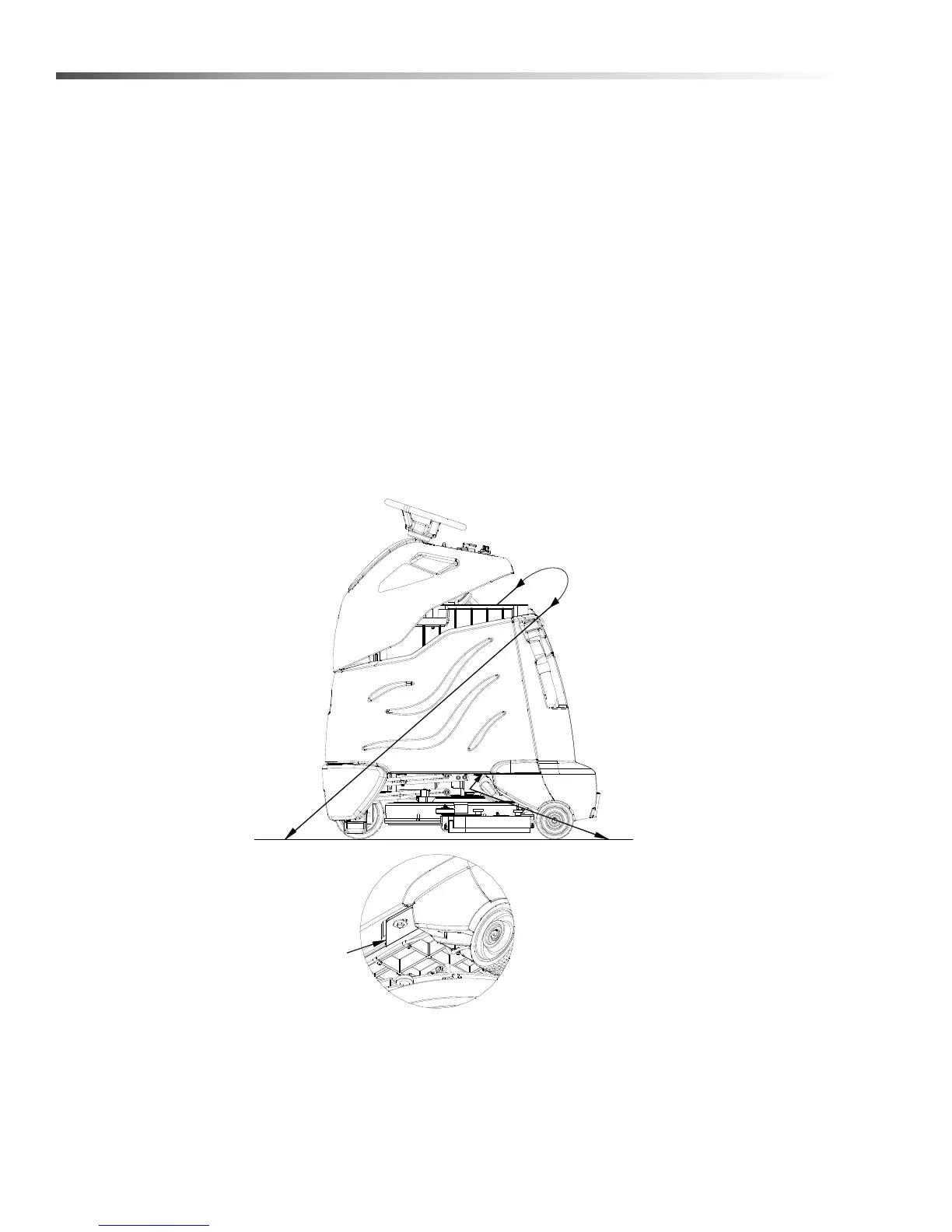

Recommended Tie-Down Points
To Next Page
