Maintenance
Machine Tie-Downs (Deluxe)
There are two tie points located in front of the rear wheels on the frame, one on the front bumper tie-down bar, and
a Tie-down wrap point on the recovery tank. Tie-down devices must be of the proper type and strength. The
combined strength of all tie-downs must be strong enough to lift two times the weight of the machine. Tie-downs
must be positioned to prevent the machine from moving forward, backward, or either side to side. Use all four
corners of the machine with the tie-downs running out opposite directions. Tie-downs must be attached to the trans-
porting vehicle securely.
CONNECT
AT
BUMPER

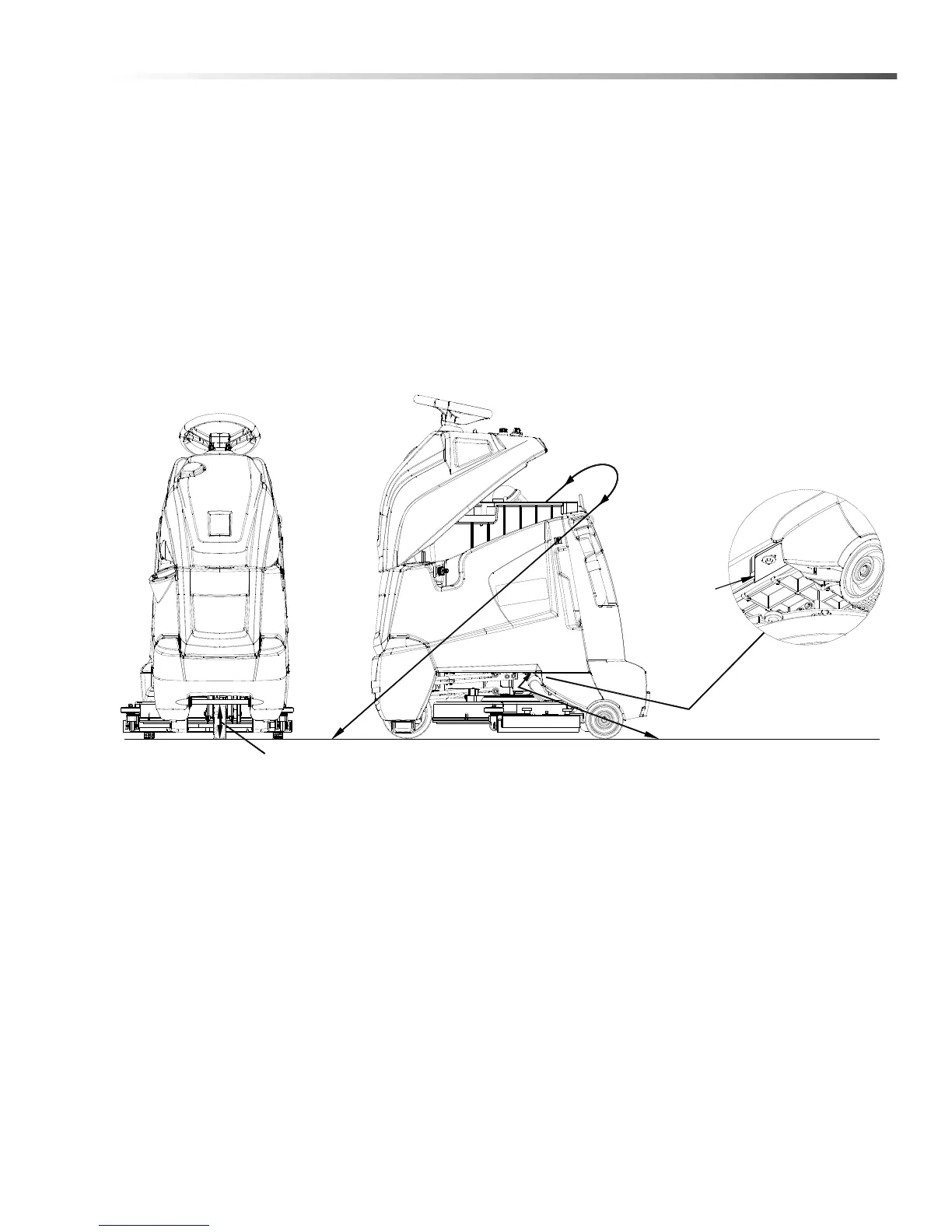

Recommended Tie-Down Points
CONNECT
AT
FRAME
VIEW FROM
BOTTOM
