MCR54 / MCR54-DUAL User Manual
22

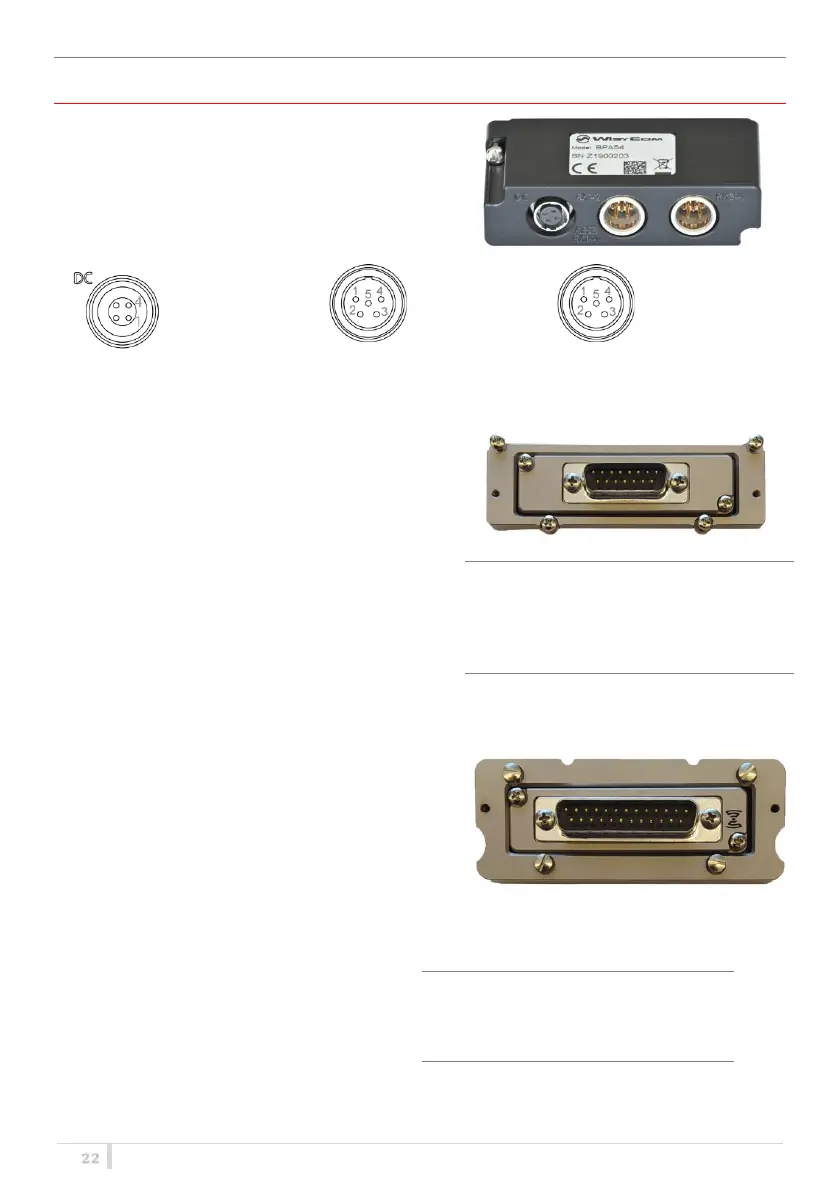

ACCESSORIES AND PARTS
BPA54: Stand alone socket
Hirose HR10A-F
1 GND
4 +VDC
1 GND
2 CHANNEL1+
3 CHANNEL1-
4 CHANNEL2+
5 CHANNEL2-
1 GND
2 CHANNEL3+
3 CHANNEL3-
4 CHANNEL4+
5 CHANNEL4-
SLK54-SX/SX2: Sony slot-in
"Slot-in" kit (upper flange +rear-panel) for Sony camera.
SUBD-15pin:
1 GND
2 CH1 Anal (unbalanced)
3 CH2 Anal (unbalanced)
4 VDC
NOTE:
not all Sony cameras has the internal double pin enable.
CHECK IF YOUR CAMERA SUPPORT 2 CHANNELS ON SLOT-IN
SLK54-IK: Ikegami super slot
“Slot-in” compatible with:
- Sound Device SuperSlot (4 audio outs in capable devices,
i.e. Soundevices™ SL-2)
- MRK16 Multi Slot rack (4 audio out)
- Unislot (Ikegami, Panasonic cameras1)
SUBD-25 pinout:
1 GND
2 CH1+ Anal/ CH1,2 AES3+
3 CH1- Anal/ CH1,2 AES3-
4 GND
5 VDC (6-18 VDC)
6 RX_ON
7 RX_WARNING
15 CH2+ Anal/ CH3,4 AES3+
16 CH2- Anal/ CH3,4 AES3-
22 UART from Wireless receiver
23 UART to Wireless receiver
25 GND
NOTE:
when SLK54-IK is set to analogue outputs, the
level is attenuated of 16dB
(max anal. ouputs: +2dBu)
NOTE:
On SLK54-SX analogue outputs level can be set to
0dBu or -16dBu (with +18dBu on RX max level)
On SLK54-SX analogue outputs level can be set to
+2dBu or -16dBu (with +18dBu on RX max level)
