CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
1.11
Subject to change without notice! Soggetto a modifica senza preavviso!
LH
HW
(min.180)
TY 44/R
min.225
TY 66/R
min.225
HS = LH + HW

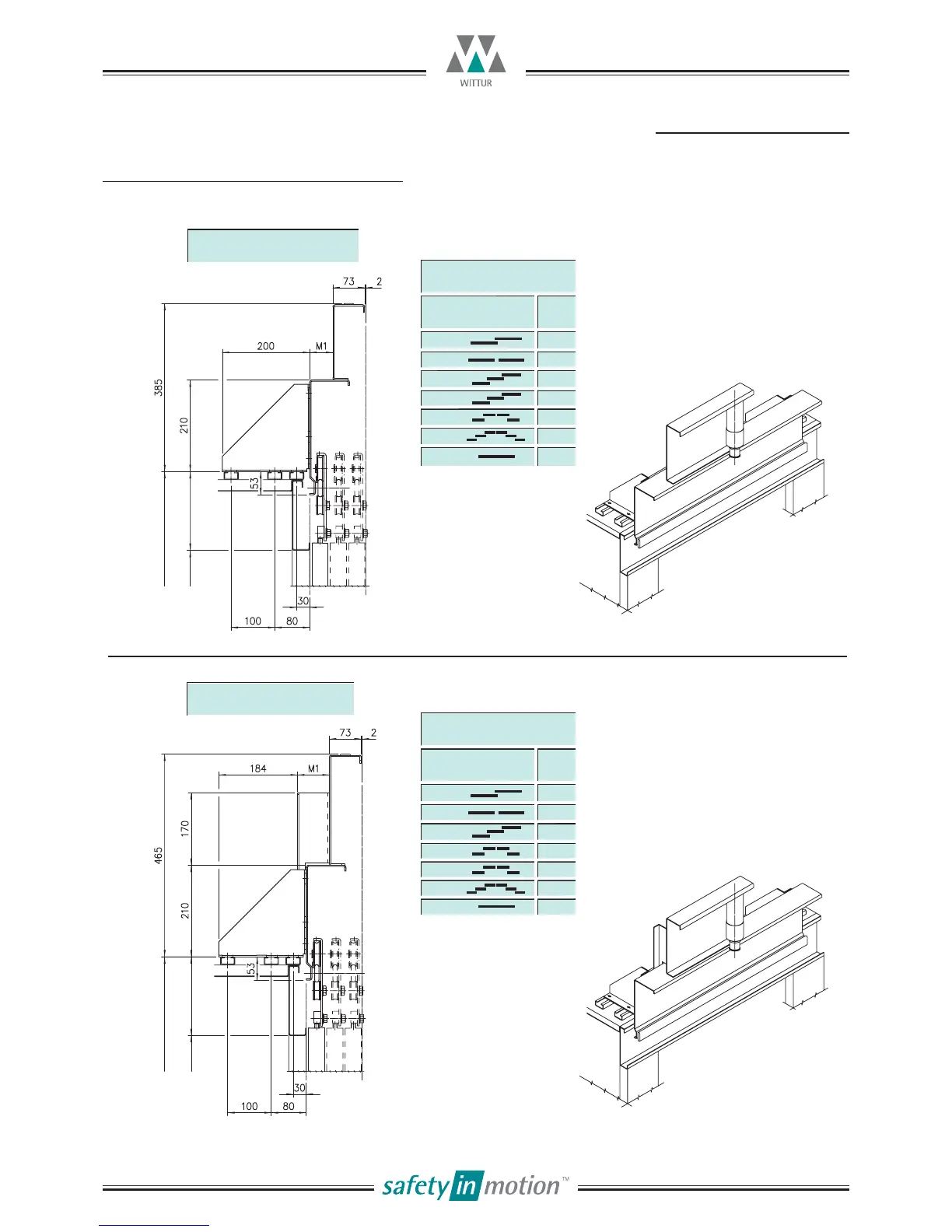

CAR DOOR OVERALL DIMENSIONS (A)
DIMENSIONI D’INGOMBRO PORTA DI CABINA (A)
HW (min.180)
LH
HS = LH + HW
TY 44/R
min.225
TY 66/R
min.225
STANDARD HANGER
MECCANISMO STANDARD
A=
STANDARD HANGER
MECCANISMO STANDARD
A=
A + ECO
DOOR TYPE
TIPO PORTA M1
12/R-L 15
02/C /
32/R-L 61
35/R-L 15
44/R 15
66/R 61
72/R-L /
A + MIDI
DOOR TYPE
TIPO PORTA M1
12/R-L 31
02/C 16
32/R-L 77
42/C 31
44/R 31
66/R 77
72/R-L 16
