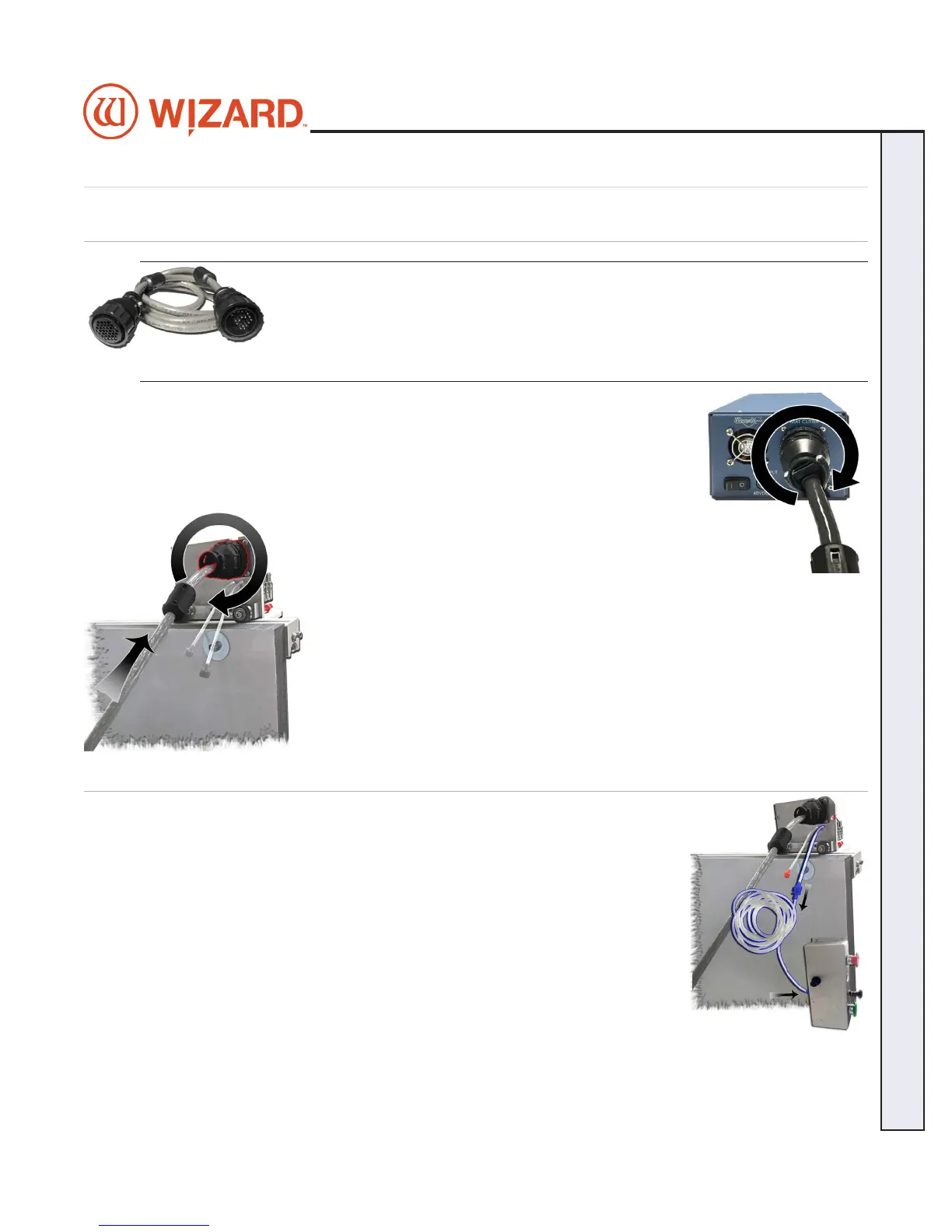

Hooking up the Gantry and Air Lines
Connecting the Board Cable
*Carefully align the pins of the board cable before
applying pressure to plug it in. The connector is
keyed to avoid incorrect pin alignment. Forcing the
connector will result in damage.*
1. The board cable connects the gantry on the CMC to the ECU. Connect the male
end of the board cable to the back of the ECU by aligning the pins and turning the
locking ring until it seats itself and locks into place.
2. Connect the female end of the board cable to the back of the gantry in the
same manner.
3. Move the gantry to the far right of the CMC and back to the left to make sure
the board cable does not get caught on anything. If the board cable is obstructed,
this will aect the cuts.
Attaching the Air Lines
1. Follow the air line with the blue connector from the top of the gantry. Make sure
that it is connected to the blue connector on the control panel box on the back of
the board, and that none of the air lines are crimped.
20-34304-1A GettingStartedManual9000zFrameShop
04/05/19
11
Wizard CMC Model 9000z Hardware and Software Getting Started Manual
Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide
