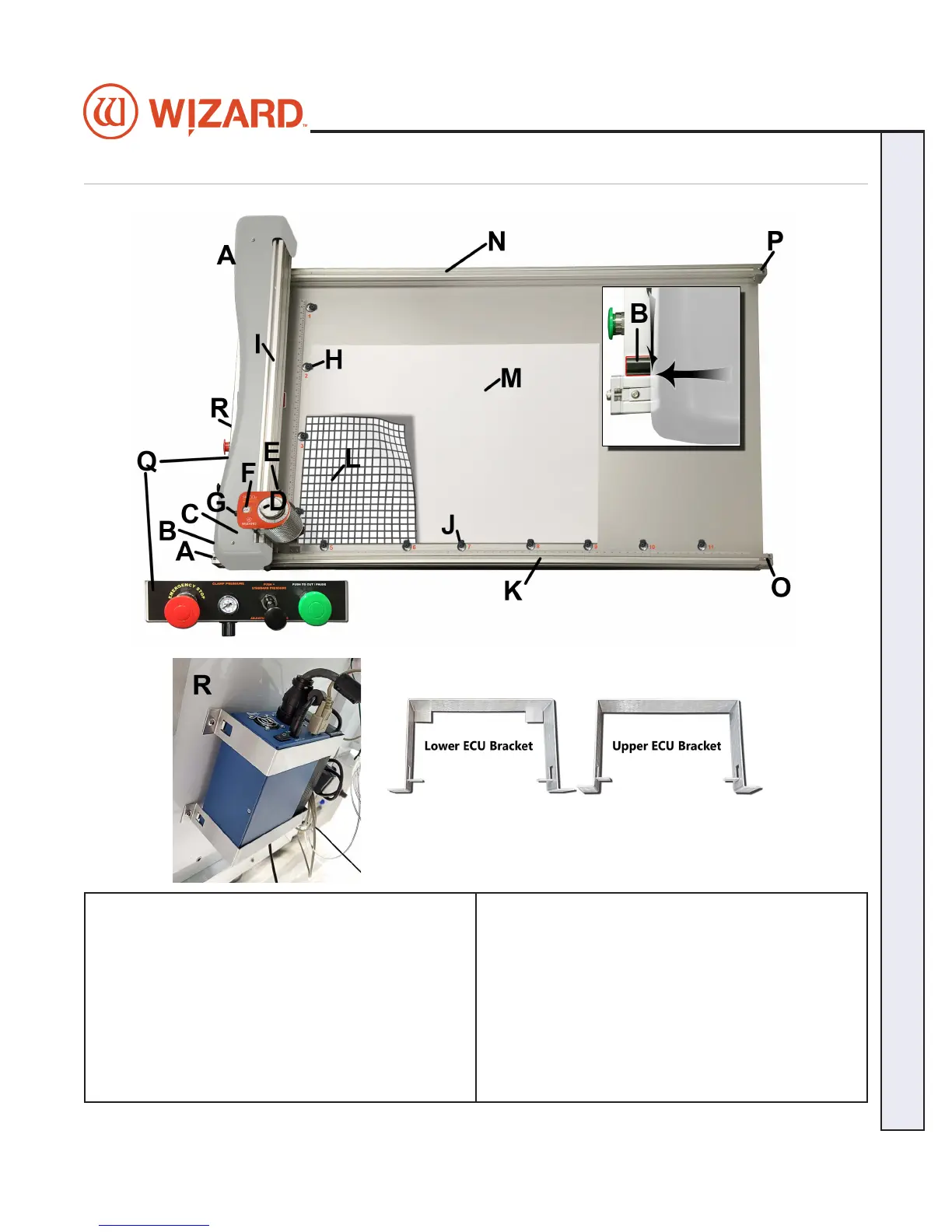

CMC Parts Labeled
A: Belt anchor
B: Magnetic Stop
C: Vertical belt tensioner (not visible)
D: Head and blade depth knob
E: Head grabber arm
F: Variable Pressure Optimization (VPO) gauge
G: Variable Pressure Optimization (VPO) knob
H: Vertical clamp
I: Gantry
J: Horizontal clamp
K: Lower rail, containing drive belt
L: Mat to be cut
M: Slipsheets (1-2 sheets of 4-ply)
N: Upper rail, containing drive belt
O: Horizontal tension adjustment (lower rail)
P: Horizontal tension adjustment (upper rail)
Q: Control Panel
R: ECU Brackets (attach to back of CMC)
