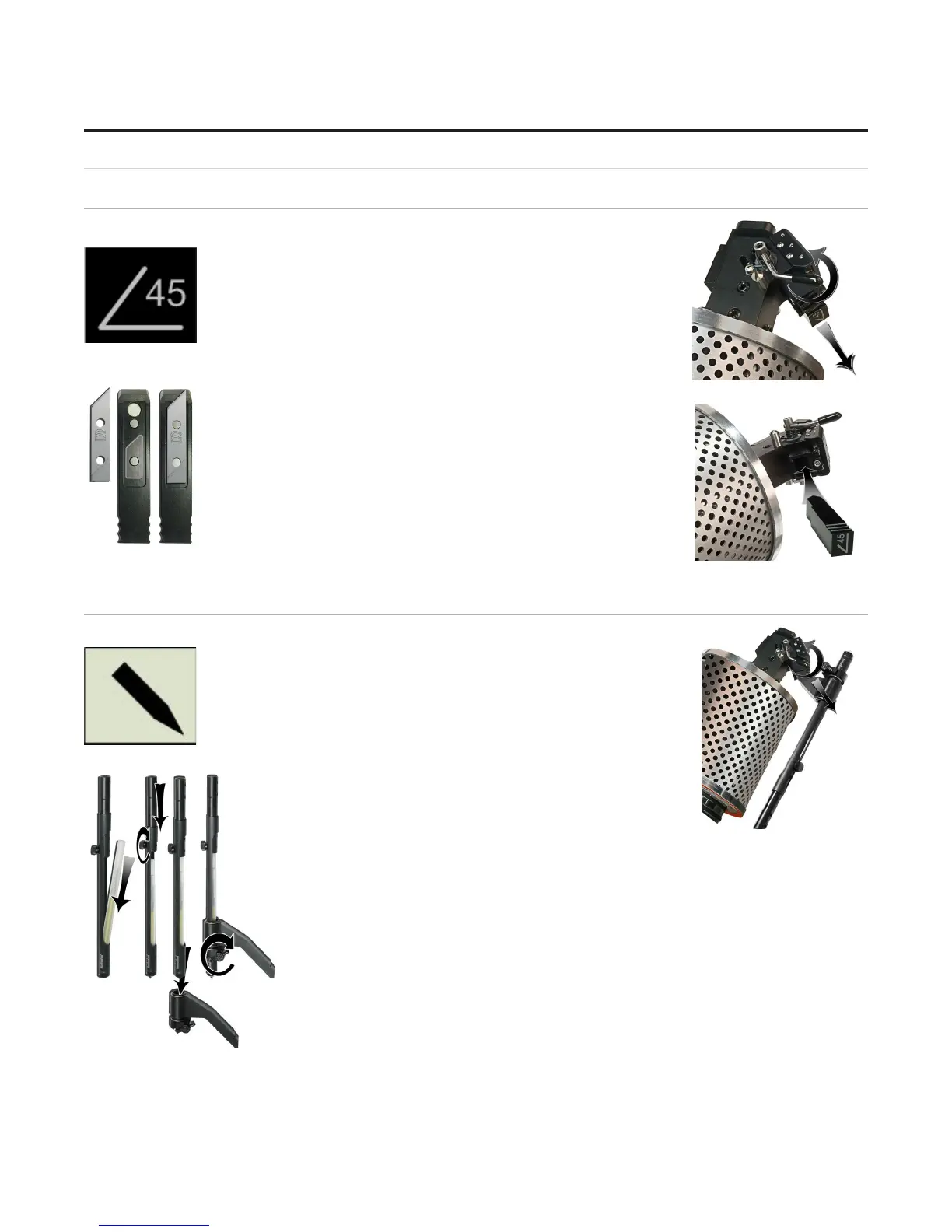

Changing the Blade
Using the 45º Cartridge
Changing the Blade
The 45° metal cartridge is labeled 45 on the end and is black.
1. Push the blade cartridge release down to eject the blade cartridge.
2. Remove the blade from blade cartridge.
3. The blade cartridge displays a diagram of the blade orientation
(shown in contrast). Place new blade into cartridge with the longest
straight side to the right and the bevel face down lining up the holes
of the blade over the pins in the cartridge. The blade should t snugly
into the recess space provided for it.
4. Turn the cartridge over and reinsert into the head with the blade
facing the CMC board and the notch on the back of the cartridge facing
the head, until it clicks into place. It can only be inserted one way.
Using the Pen Cartridge
Changing the Pen in the Pen Cartridge
The pen cartridge is unlabeled and is black with a metal pen holder
column attached to the base. The pen icon within the software is a
small stylus symbol.
1. Push blade cartridge release down to eject the pen cartridge.
2. Turn the pen locking screw counter-clockwise to loosen it and slide the pen locking
bolt away from the cartridge base.
3. Remove the existing pen by extracting it from the pen holder.
4. Replace with a new pen by placing the tip in rst and inserting the pen into the
pen holder.
5. Slide the pen locking bolt back into place and tighten the pen locking screw
clockwise snug (do not overtighten screw) to lock it into place.
