Wizard CMC 9000z - Head Alignment Procedure; Aligning Head When Motors are Disengaged

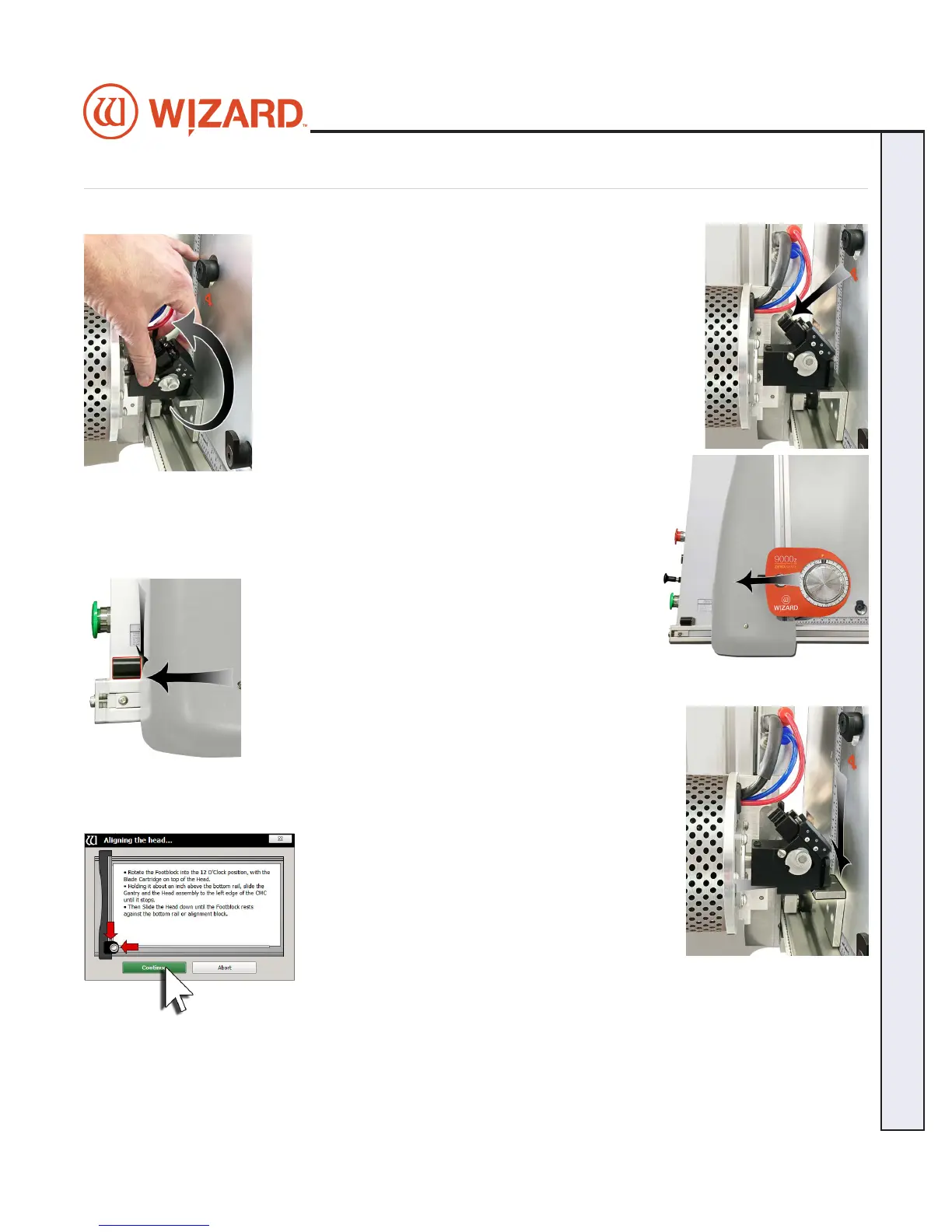

Align the Head When Motors are Disengaged
Align the Head
1. Rotate the foot block into the 12 O’clock position, with the
blade cartridge on top of the head.
2. Holding it about an inch above the bottom rail, slide the gantry and the head
assembly to the left edge of the CMC until it stops.
3. It will stop against the Magnetic Stop.
4. Then slide the head down until the foot block rests against the head alignment stop.
5. Click on the Align the Head screen.
