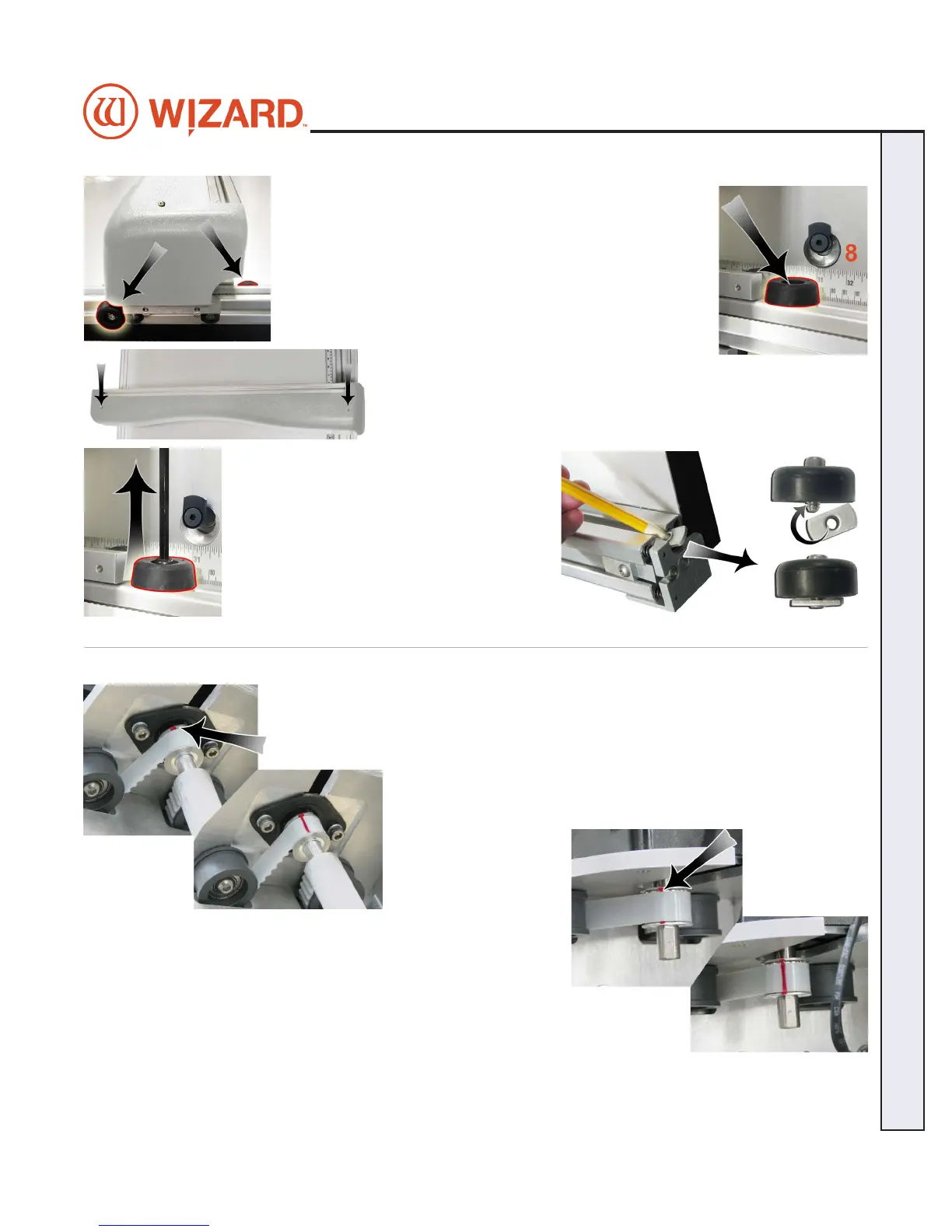

2. There are two shipping blocks on either side of the gantry
on the bottom rail. One is to the left side of the gantry on the
underside of the bottom rail. The other is to the right of the
gantry on the top of the bottom rail.
3. Remove the two screws holding the gantry cover in place, and set
the cover and screws aside.
4. Remove the shipping blocks by loosening
the 3/16” Allen screw from the T-Nut. Slide
the T-Nuts to the right end of the rail; a pencil
tip helps. Reattach the T-Nuts to the shipping
blocks and place them in the shipping box for
storage.
Check Squareness
Check the Drive Belt Lines
Move the gantry all the way to the left. Move the gantry slowly toward
the right until a red mark is visible on the drive belt of the upper gantry.
Conrm that the red mark lines up with the red mark on the toothed
pulley.
Without moving the gantry, look at the lower drive belt of the gantry
and make sure the red mark lines up on the lower drive belt and
the toothed pulley. If they do not, call Wizard Technical Support.
20-34304-1A GettingStartedManual9000zFrameShop
04/05/19
9
Wizard CMC Model 9000z Hardware and Software Getting Started Manual
Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide
