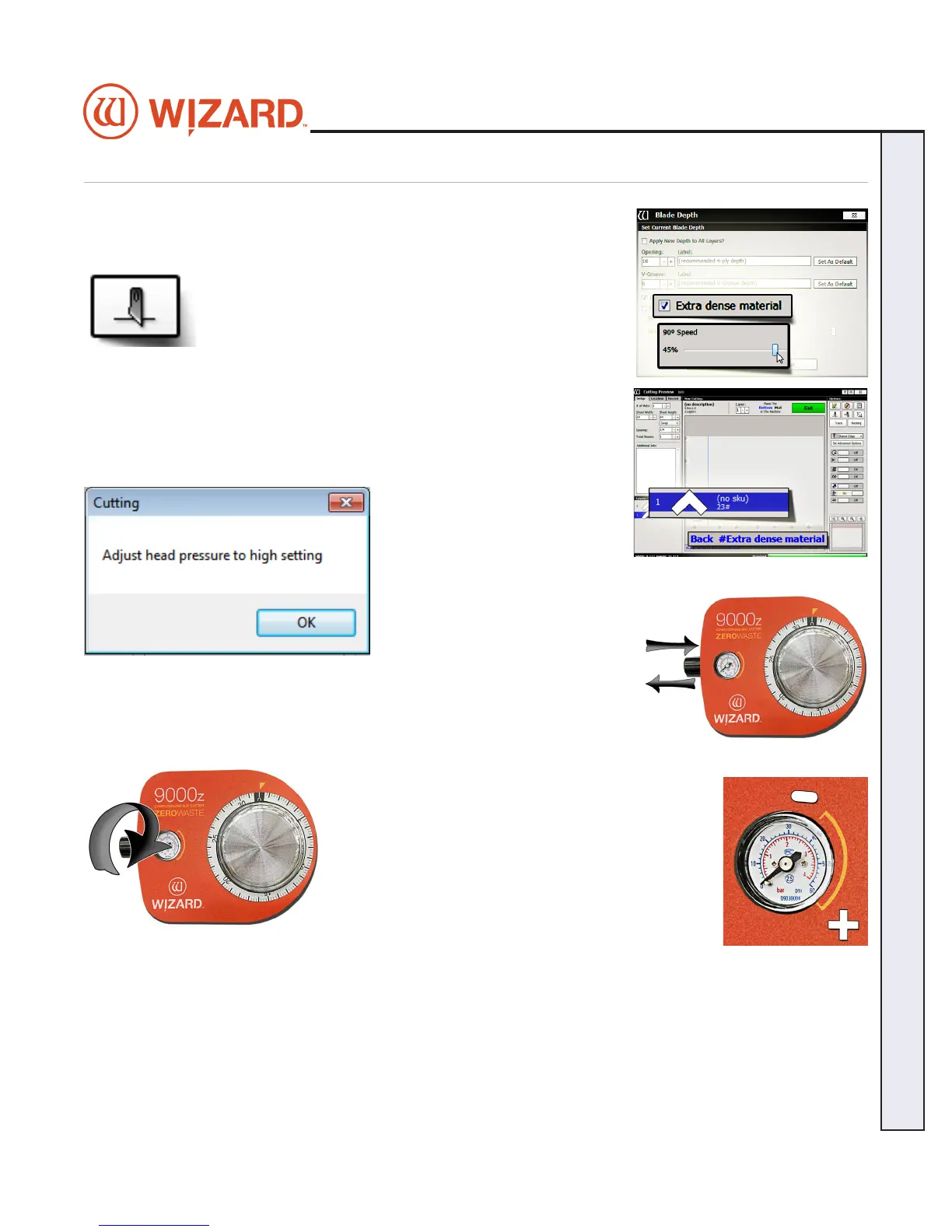

Cutting an Extra Dense Layer with the 90° Cartridge
This setting is only for the 90° Cartridge and will not take aect if another cartridge is selected. This setting will
allow the 90° Cartridge to cut at a slower pace.
1. Select the desired layer on the Cut Preview.
2. Click the Blade Depth button to open the Blade Depth Screen.
3. Click the checkbox for Extra Dense Material and change
the Blade Depth to the appropriate setting for this matboard.
4. Adjust the slidebar to the percentage of cutting speed. For
instance, 50% is 50% of the standard cutting speed.
5. Click OK. The Cut Preview displays the extra dense layer with a pound
sign and indicates that this layer is extra dense.
6. Click Cut the cut the mat and Align the Head if requested.
7. A prompt to adjust the head
pressure to the high setting displays.
8. Pull out the air regulator pressure knob by pulling it to the left.
9. Turn the air regulator pressure knob clockwise until
the marker on the gauge is at the high setting. Make
sure the gauge does not go above 60 psi.
10. Set it by pushing the air regulator pressure knob
back in.
11. Click OK to cut the mat with this setting.
90° Cartridge
See the Knowledge Base at http://info.wizardint.com/KB to nd additional information on the 90° cartridge
and changing the blades.
