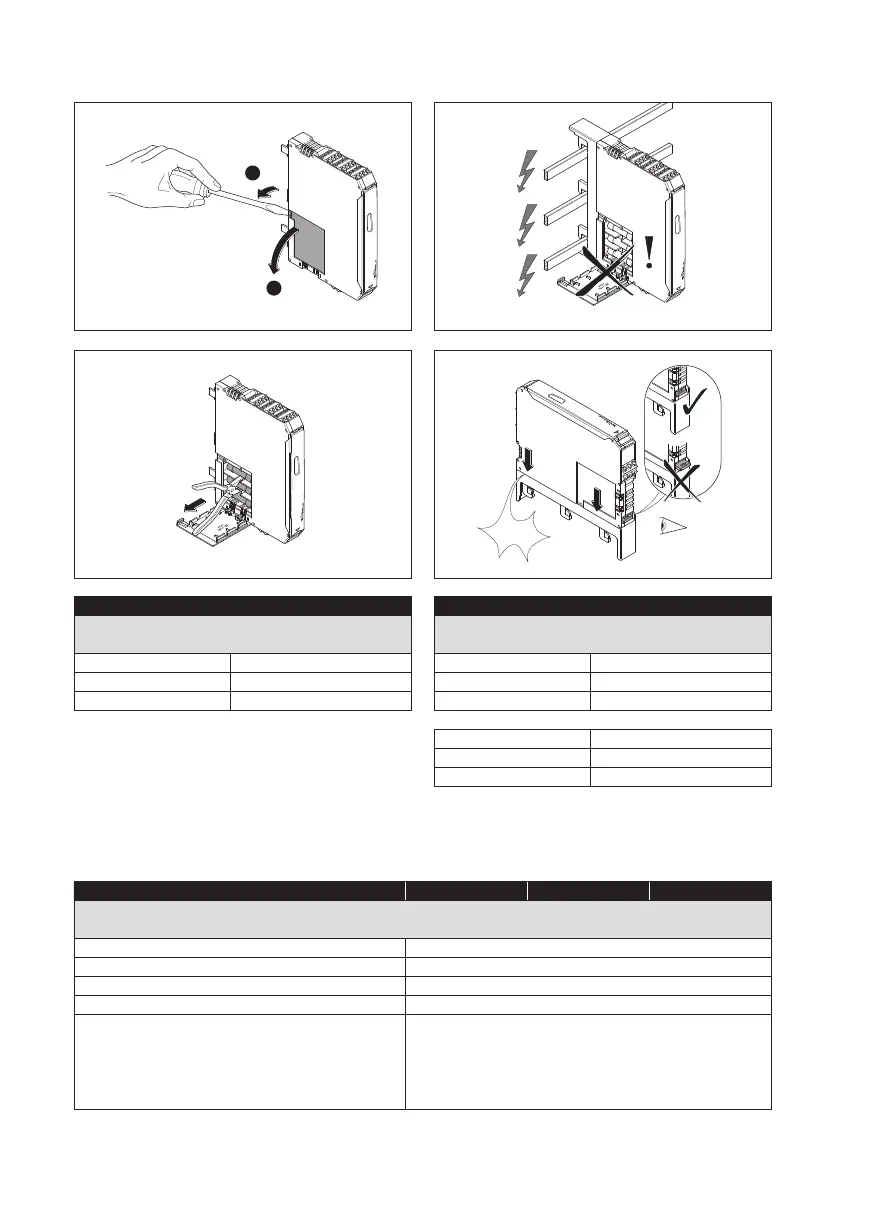

Wöhner MOTUS - Safety and motor specific applications; Replacing fuses

26
1
2
Click
7. Technical data
Variants Max. 0.6A Max. 2.4A Max. 9A
Input data
Rated control supply voltage U
s
as per IEC 60947-1 / UL 508 24V DC
Control supply voltage range 19.2 – 30V DC (32V DC, max. 1 min.)
Control supply voltage, Switching level „Safe off“ < 5V DC
Rated control supply current as per IEC 60947-1 ≤ 40mA
Control input L, R:
Switching level „Low“
Switching level „Safe off“
Switching level „High“
Input current
-3 to 9.6V DC
< 5V DC
19.2 – 30V DC
≤ 3mA
2.
3.
4.
5.
Spare fuses
0.6A and 2.4A variants
16A 31 567 Wöhner
16A 2903126 Phoenix Contact
16A FR10GR69V 16 Mersen
Note: The listed fuses provide optimum short circuit
protection and reliable control of the motor starting
currents. We recommend that you only use these fuse
types.
Spare fuses
9A variants
20A 31 568 Wöhner
20A 2903384 Phoenix Contact
20A FR10GR69V 20 Mersen
30A 31 569 * Wöhner
30A 2903119 * Phoenix Contact
30A CCMR30 * Littelfuse
* Is needed for motors with heavy starting.
