Alarm system diagrams
In order for the alarm system to receive wireless signals optimally from all wireless accessories,
please put the alarm system in the central of your defence area. Make sure it’s away from large
metal objects and household appliances which may cause high frequency interference, as well as
barriers such as reinforced concrete wall or fire door, etc.

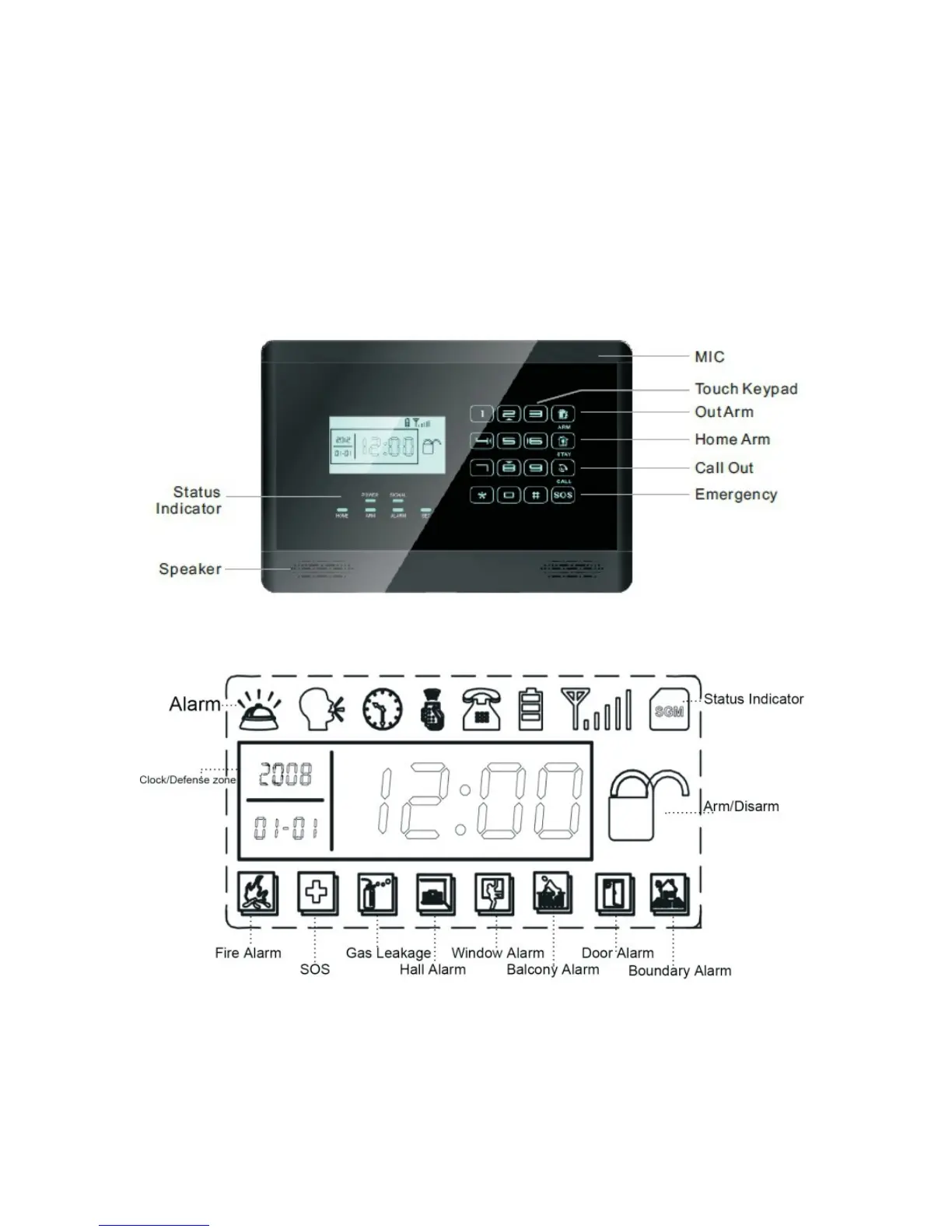

Alarm Panel front schematic diagram:
LCD Display
Page 6 Wolf Secure http://www.wolfsecure-gsmalarms.co.za
