12.Electricalconnection
Connection,digitalWolfcontrolaccessories
(e.g.BM,MM,KM,SM1,SM2)
Only controllers from the Wolf range of accessories may be
connected. Each accessory is supplied with its own connection
diagram.
Useatwo-corecable(cross-section>0.5mm²)asthecon-
necting cable between the control unit accessory and the
condensing boiler.

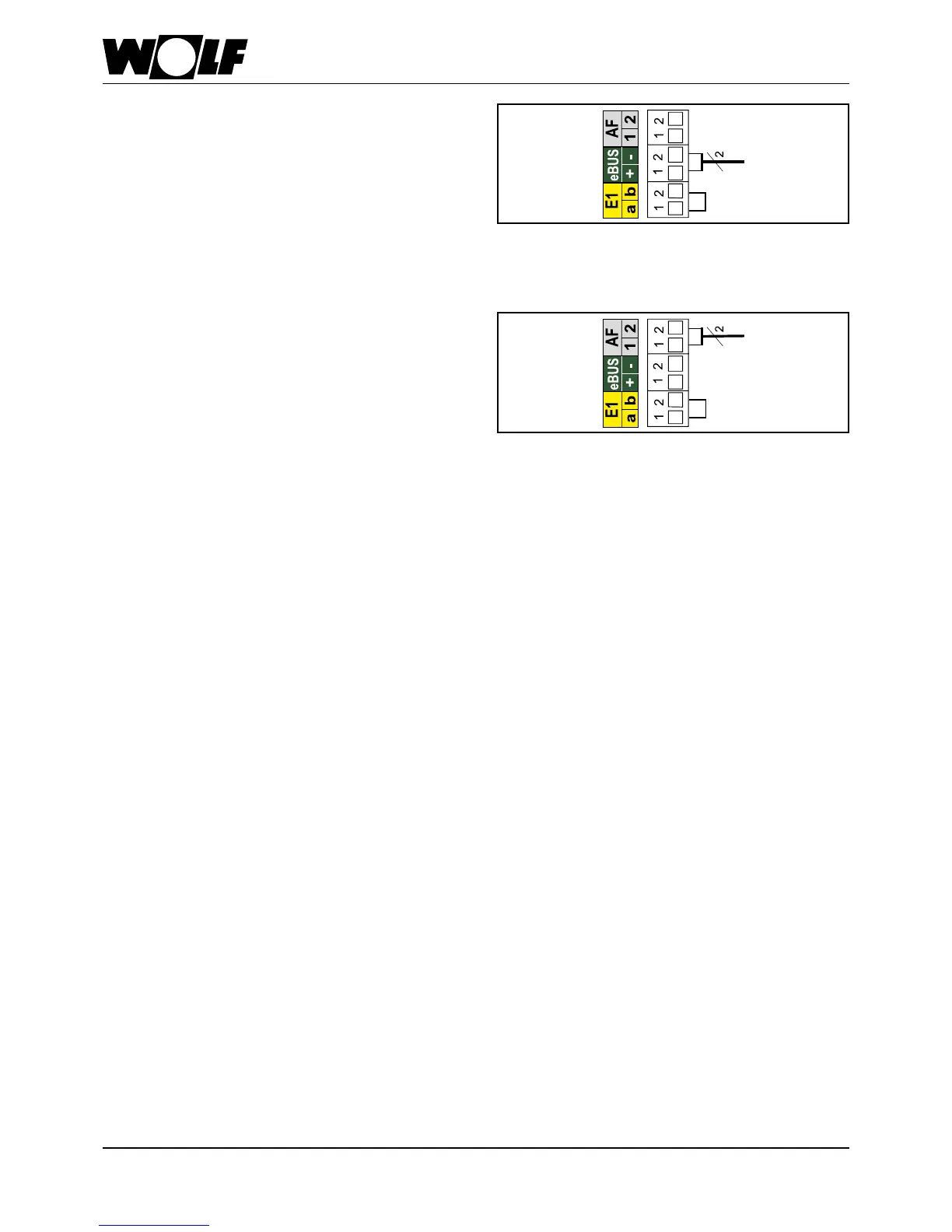

Fig.: Connecting digital Wolf control accessories (eBUS interface)
Connectingtheoutsidesensor
The outside temperature sensor for digital control accessory
may be connected to the terminal strip of the boiler connection
AF, or the terminal strip of the control accessory.
Fig.: Connecting the outside sensor
