Wolf CSO24TE/S - Intermediate Door Glass and Handle Procedures

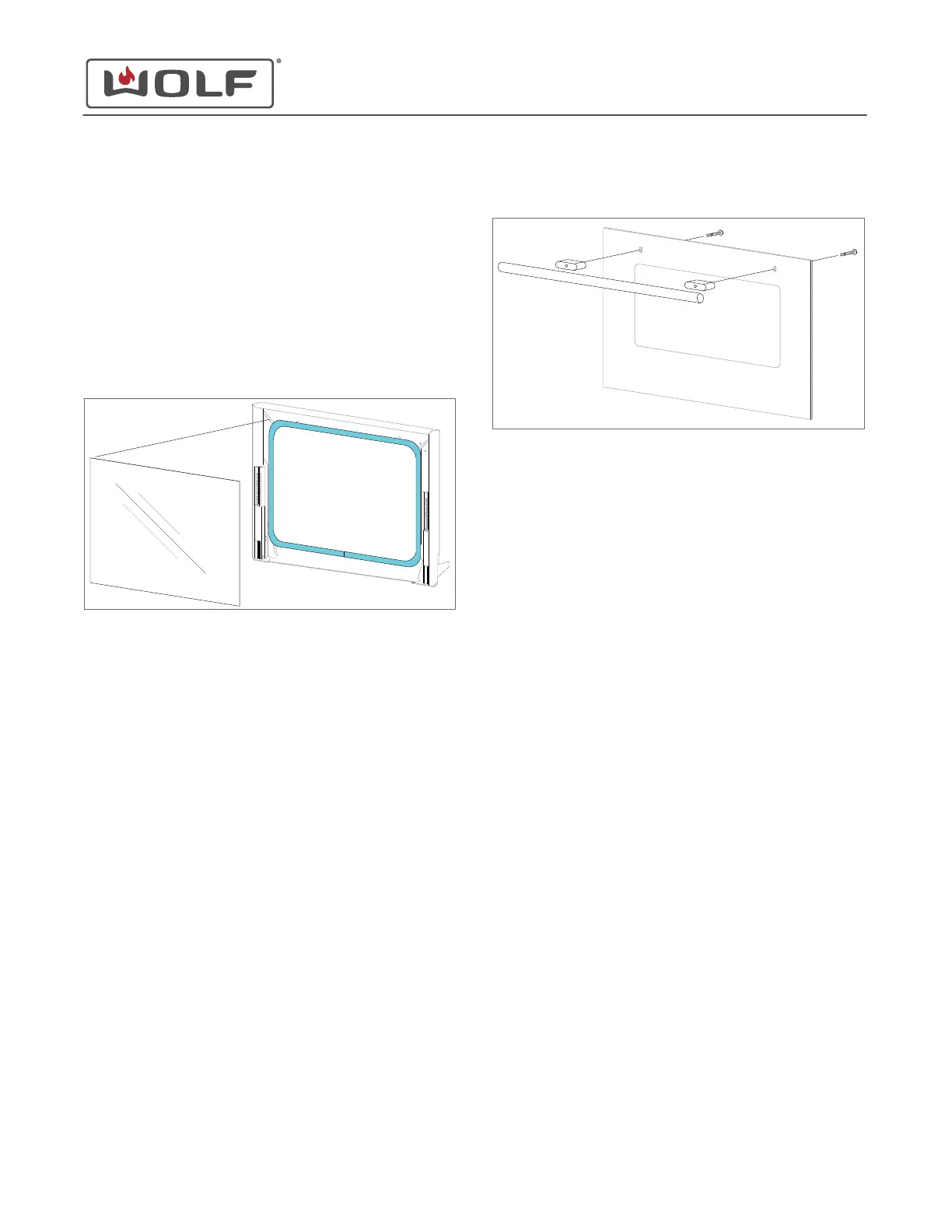

INTERMEDIATE DOOR GLASS REMOVAL
To remove the intermediate door glass, first remove:
1 Door
2 Door front or inner door
Remove the Intermediate Door Glass
1 Use pliers to straighten the glass retainer tabs.
2 Remove the intermediate door glass from the inner door.
3 Remove the gasket if necessary.
INTERMEDIATE DOOR GLASS INSTALLATION
After installing the intermediate door glass, install:
1
Door front or inner door
2 Door
Install the Intermediate Door Glass
1 Install the gasket if removed.
2 Place the intermediate door glass on the inner door.
3 Use pliers to bend the glass retainer tabs over the
intermediate door glass.
DOOR HANDLE REMOVAL
To remove the door handle, first remove:
1
Door
2 Door front or inner door
Remove the Door Handle
1 Use a T-25 Torx bit to remove the handle mounting screws.
2
Remove the handle and handle standoffs from the door
front.
DOOR HANDLE INSTALLATION
After installing the door handle, install:
1
Door front or inner door
2 Door
Install the Door Handle
1 Place the door handle and handle standoffs onto the door
front.
2 Use a T-25 Torx bit to install the handle mounting screws.
RETRACTABLE DOOR HANDLE REMOVAL
To remove the retractable door handle, first remove:
1
Door
2 Door front or inner door
3 Intermediate door glass
Remove the Retractable Door Handle
1 Use a T-20 Torx bit to remove the handle assembly
mounting screws.
CSO (SWS #13543126)
Cavity Component Removal and Installation
Intermediate Door Glass Removal (continued)
