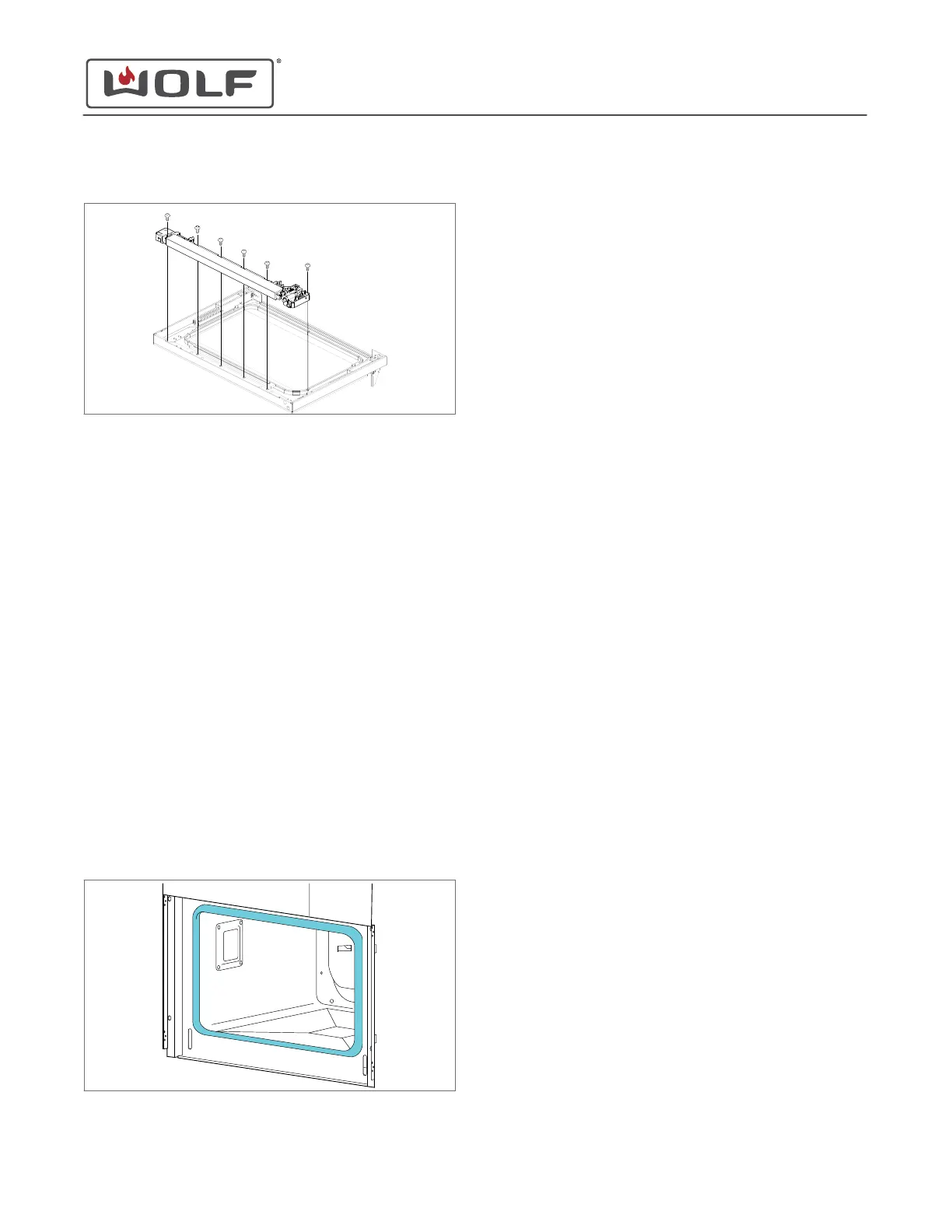

2 Remove the handle assembly from the inner door.
RETRACTABLE DOOR HANDLE INSTALLATION
After installing the retractable door handle, install:
1
Intermediate door glass
2
Door front or inner door
3
Door
Install the Retractable Door Handle
1 Place the handle assembly on to the inner door.
2 Use a T-20 Torx bit to install the handle assembly mounting
screws.
DOOR SEAL REMOVAL
Remove the Door Seal
1 Open the oven door.
2 Pull the door seal from the channel around the oven door.
DOOR SEAL INSTALLATION
Install the Door Seal
Insert the door seal in the channel around the oven door.
RACK REMOVAL
Remove the Rack
Pull the rack forward out of the unit.
RACK INSTALLATION
Install the Rack
1 Insert the rack between the rails of the rack guide.
2 Push the rack into the oven.
RACK GUIDE REMOVAL
To remove a rack guide, first remove the racks.
Remove the Rack
Pull the rack forward out of the unit.
Remove the Rack Guide
1 Remove the rack guide nut.
2 Pull the front of the rack guide toward the center of the
oven.
CSO (SWS #13543126)
Cavity Component Removal and Installation
REMOVE THE RETRACTABLE DOOR HANDLE (continued)
service.subzero.com
827703 REV B.1
