Wood-mizer LX25 Maintenance Manual

Setup
Assemble the bed sections
3

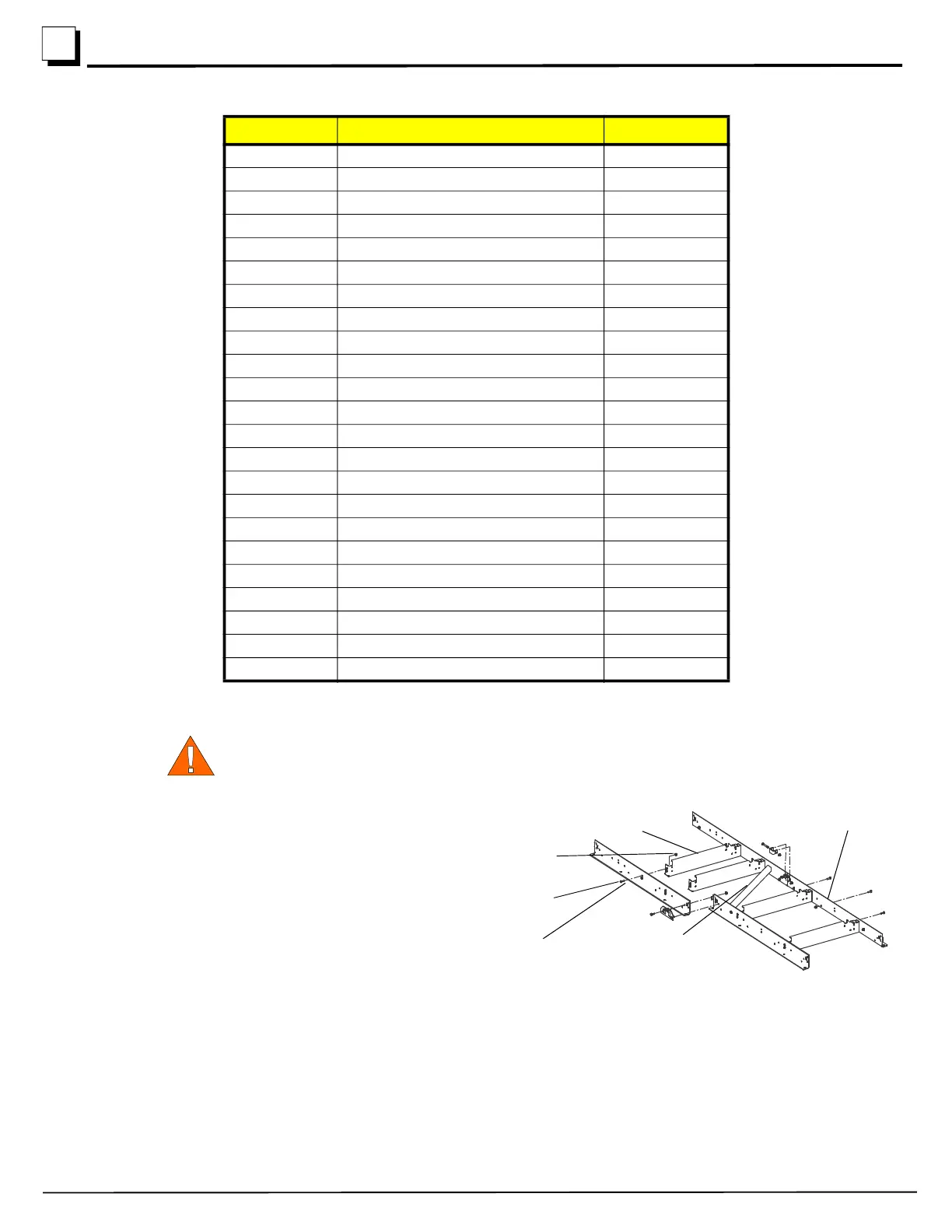

3-6 WM doc 12/21/22Setup
BAG KIT
3.2 Assemble the bed sections
WARNING!Assemble the bed on firm, level ground. Failure to do so may cause the
sawhead to tip, causing serious injury or death.
1. Assemble all of the bed sections using track
rails and cross rails, and one cross member
where each bed section joins together.See
FIG. 3-1.
a. Attach two cross rails per bed
section. Make sure to place the
cross rails closer together, leav-
ing room for the sawhead
assembly, as shown.
b. Attach the track rails to the cross
rail. Make sure all of the cross
rails face the same direction.
NOTE: Do not attach the catch rails at this time!
130360 BAG KIT, LX25 FASTENER QTY
F05022-25 Bolt, M10-1.5x120mm Hex Cl 8.8 2
F05022-3 Bolt, M10-1.5x30 Class 8 HH 70
F05022-17 Bolt, M10-1.5x70 Carriage 8
F05022-15 Bolt, M10-1.5x75 HH Class 8.8 4
F81003-125 Bolt, M10-1.5x85 Class 8 HH 4
F05020-7 Bolt, M6-1 x 14 Class 8 HH 3
F05020-6 Bolt, M6-1 x 20 Class 8 HH 4
F05020-8 Bolt, M6-1.0x30 Class8 HH 2
F05021-14 Bolt, M8-1.25x20 Carriage 2
F05021-29 Bolt, M8 x8mm SH Shoulder 2
F05027-47 Nut, M10-1.5 Flanged Nylon Lock 74
F05010-85 Nut, M10-1.5 Hex 8
F05004-270 Nut, M10-1.50 Hex Nyl Lock 4
F05010-162 Nut, M8-1.25 Free Zinc Plate 4
F05010-132 Nut, M8-1.25 Hex Nylock 4
F05026-4 Washer, M8 Flat 6
F05012-145 Pin, 1/4x2 1/2 Tab Lock 2
F05020-24 Screw, M6-1x8 SHSS 2
F05015-33 Screw,#10x3/4 Sl Hex Washer Hd Sht Metal 2
F05011-134 Washer, M10 Flat SAE 82
F05026-1 Washer, M6 Flat Class 4 11
F05026-2 Washer, M6 Split Lock 3
F05010-200 Nut, M6-1.0 Nylon Lock 6
TDLX2503-03
Track Rails
Cross Rails
Cross Member
Bolt, M10-1.5x30 HH
Class 8
Nut, M10-1.5 Flanged
Nylon Lock
Washer, M10 Flat
FIG. 3-1
