PARTS
Moulder Head Housing MP100
PARTS WMMdoc042320 9-2
9

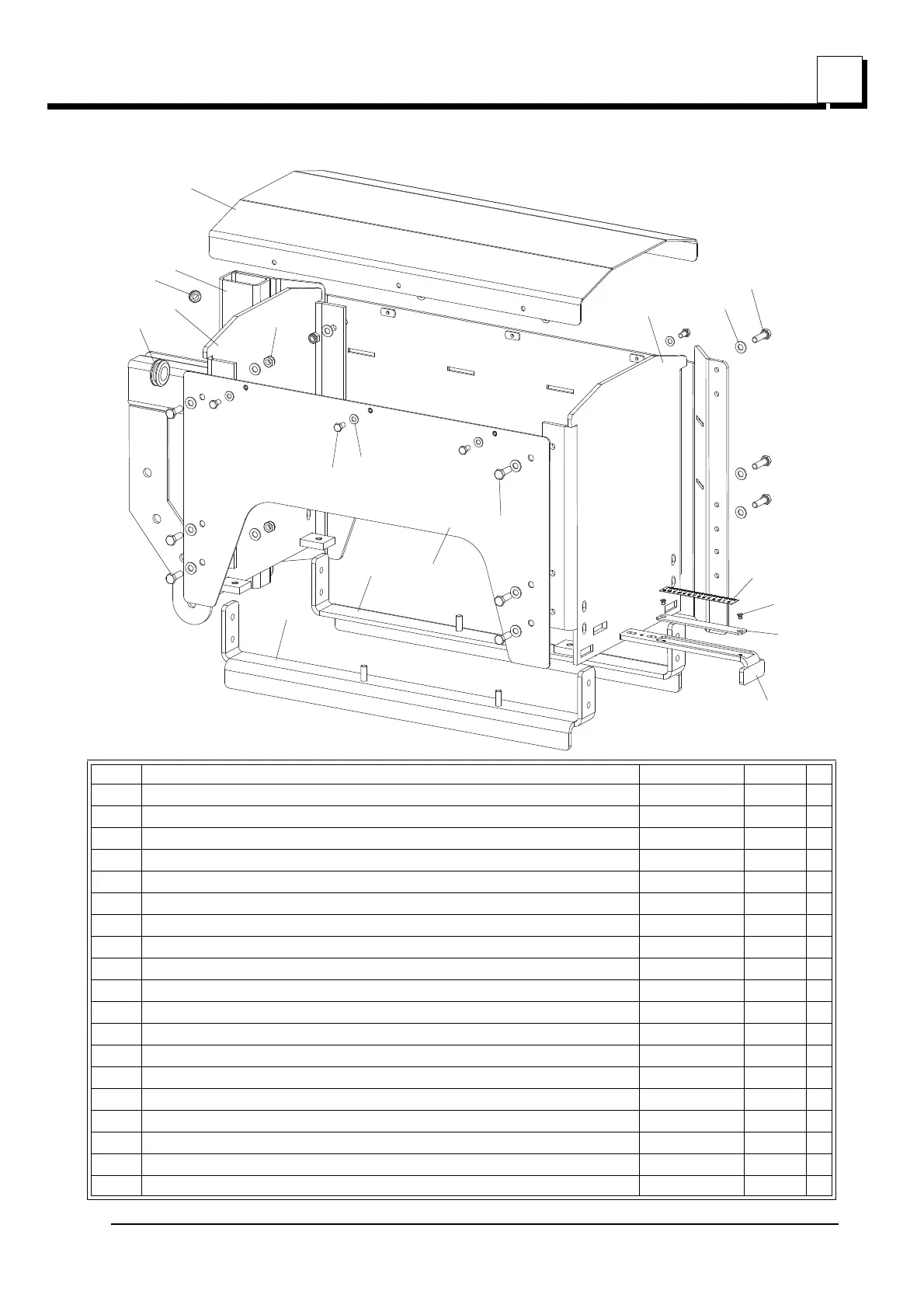

9.2 Moulder Head Housing MP100
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
HOUSING, MOULDER HEAD COMPLETE 501880 1
1 CUTTER HEIGHT ASSEMBLY 501897-1 1
2 COVER, MOULDER HOUSING UPPER 501882-1 1
3 COVER, MOULDER HOUSING LEFT 501895-1 1
4 BRACKET, MOULDER ANGLE RIGHT 501951-1 1
5 BRACKET, MOULDER ANGLE LEFT 501952-1 1
6 COVER, MOULDER HOUSING RIGHT 501896-1 1
7 COVER, MOULDER HOUSING REAR 501905-1 1
8 GROMMET, 30X42X8 RUBBER. 509717 1
9 WASHER, 10.5 FLAT ZINC F81055-1 24
10 BOLT, M10X35-8.8 HEX HEAD FULL THREAD ZINC F81003-17 6
11 NUT, M10-8-B HEX NYLON ZINC LOCK F81033-1 12
12 BOLT, M10x30-5.8 HEX HEAD FULL THREAD ZINC F81003-2 6
13 WASHER, FLAT ZINC F81053-11 6
14 BOLT, M6 X 16 8.8 FE/ZN5 PN-M/82105 F81001-15 6
SCALE, CUTTER SHAFT COMPLETE 502352 1
15 STRAND, CUTTER 501949-1 1
SCALE, METRIC HORIZONTAL COMPLETE 501203 1
16 BAR, SCALE COMPLETE 501205 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
WMM_015
19
