INTRODUCTION
Machine and Site Preparation
1
1-2 15doc042320 INTRODUCTION
1.2 Machine and Site Preparation
The Wood-Mizer moulder is delivered on a pallet. Due to the weight, it has to be
transported with auxiliary carrier equipment and in accordance with general safety rules.
The moulder must be installed in the work-place as instructed in the operator’s manual.
To ensure safe operation of the machine, the work-place dimensions should be
3 m x 10 m. If your machine is equipped with additional bed sections, prepare an
appropriately larger work area. The work-place must be protected from rain and snow.
1.3 The major components of the moulder

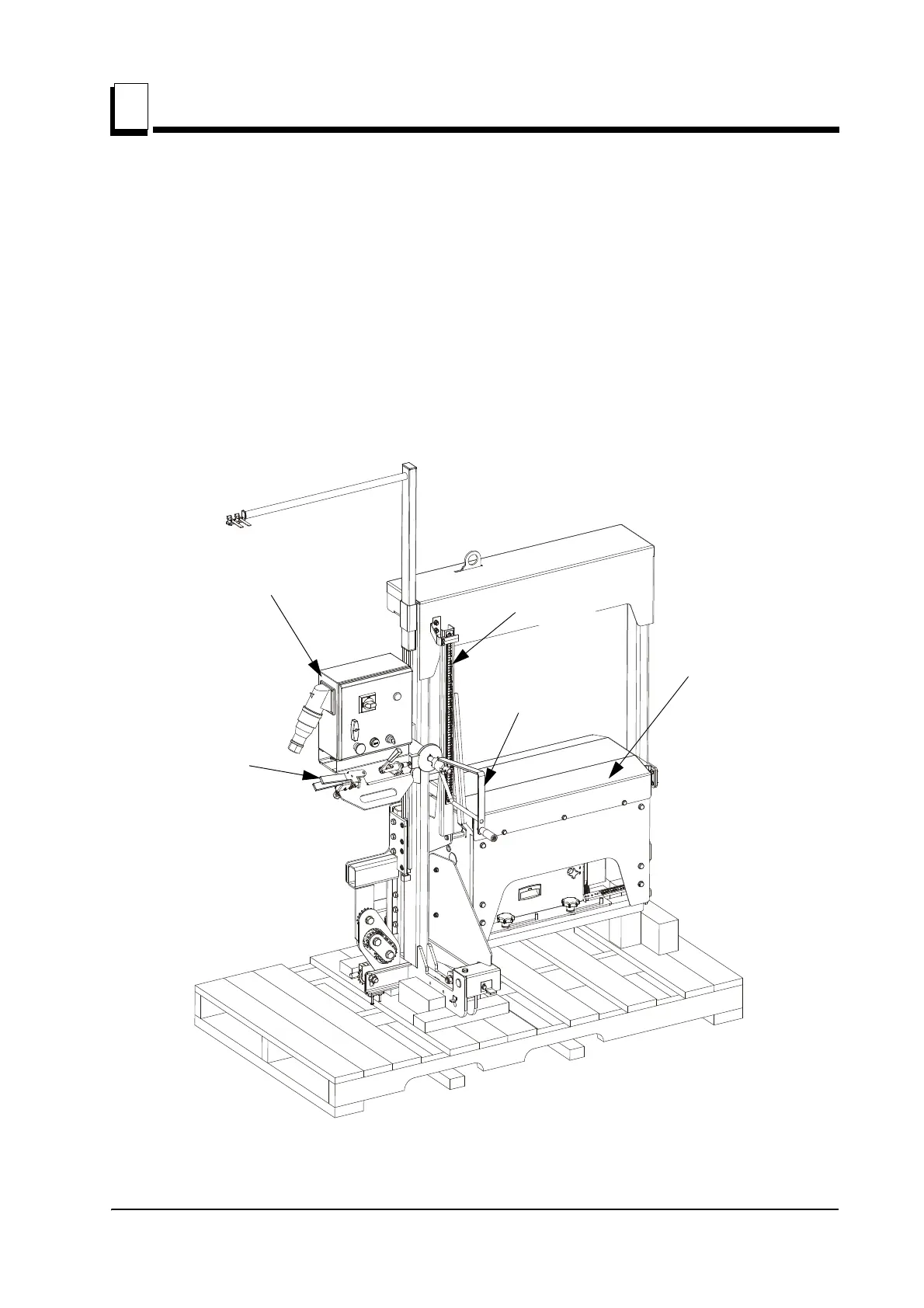

FIG. 1-0 MP100
WMM053B
Moulding Head
Feed Crank
Electric Box with
Operator Panel
Safety Handle
(CE Version only)
Head Height
Scale
