PLANER/MOULDER SPECIFICATIONS
Specifications of the planer/moulder
Specyfikacje EGdoc021023 5-8
5

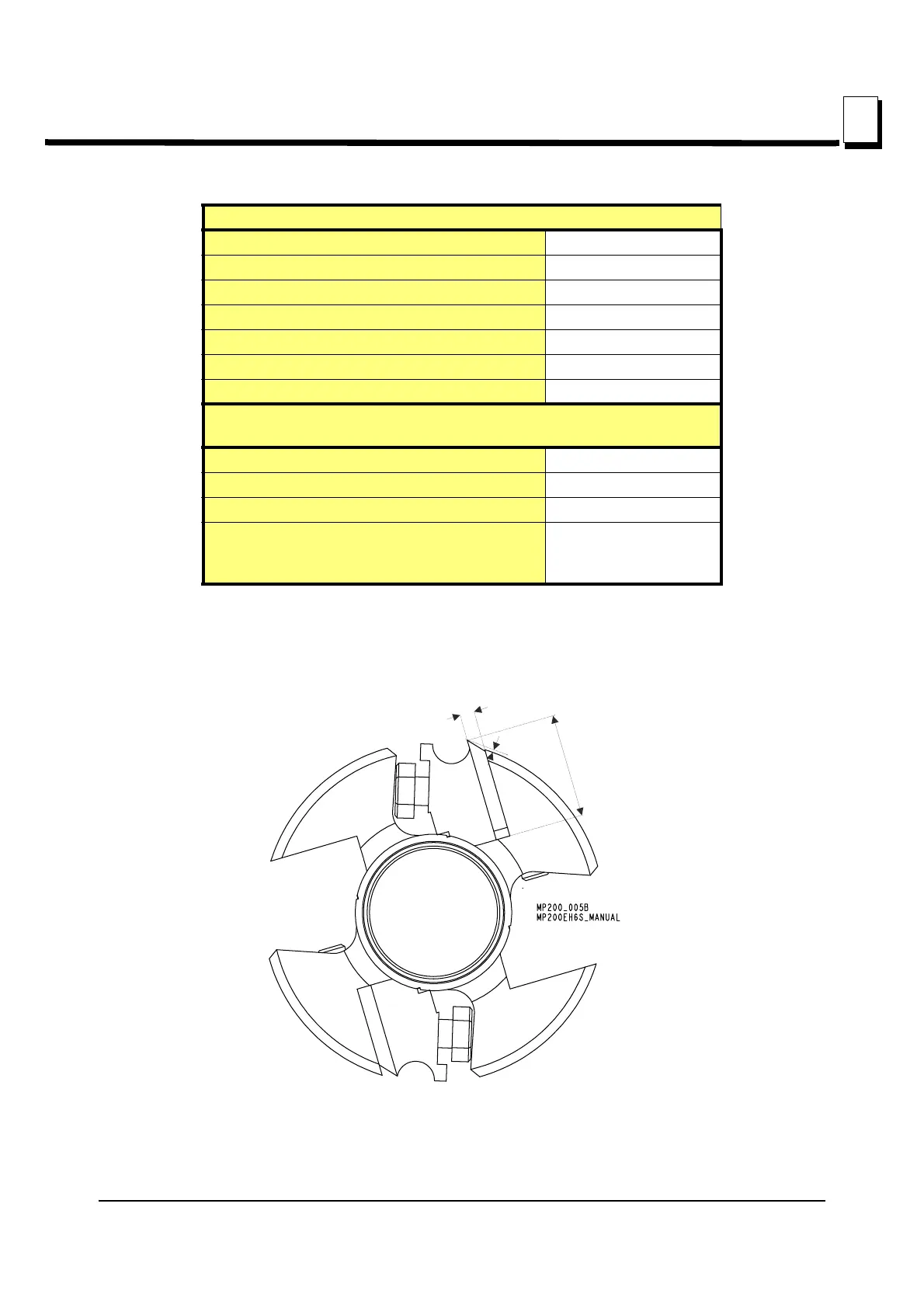

See table 5-10. Other specifications of the planer/moulder are listed below
See figure 5-2.
Cutter Specifications
Number of knife sockets 4
Top cutter diameter 72 mm
Top cutter width 410 mm
Side cutter diameter 92 mm
Side cutter width 40 mm
Cutter adjustment -- mm
Cutter rotations 5840 r.p.m.
Knives Specifications
Straight knife height “A” 20 mm
Straight knife thickness “B” 3 mm
Straight knife protrusion “C” 1 mm
Pattern knife protrusion “C” depends on the knife
thickness (see table
5-11)
TABLE 5-10
FIG. 5-2
