Manual 37240C GCP-30 Series - Genset Control
Operation
In order to establish a connection between the GCP and LeoPC1, the correct entry of the generator number at the
GCP has to be observed:
Enter code
0000
1. Code level 2 has to be entered at the GCP.
Direct para.
No
2. The direct configuration has to be disabled
if necessary.
Generator number
00
The entry for the generator number determines
the CAN ID of the unit.
Once connected to the CAN bus, the USB to CAN adapter may serve up to 14 GCPs.
Settings in LeoPC1
LeoPC1 will be installed according to the manual. The IXXAT driver has to be installed after LeoPC1 has been
installed.

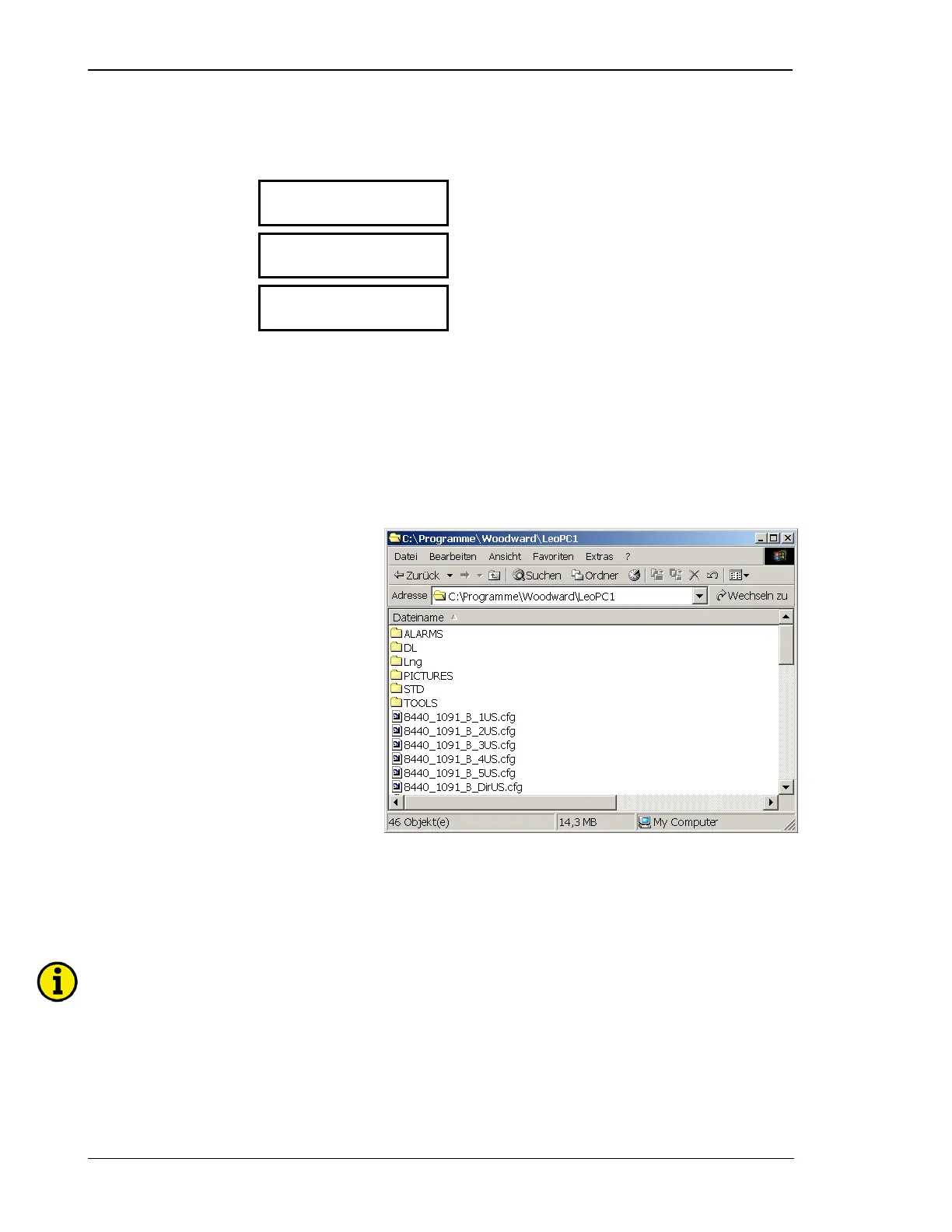

The configuration files of the device are copied to the PC. With this, the .cfg files are copied to the main path and
the other files are copied to the intended folders.
The .cfg file with the contraction "_xUS" in the file name is to be used for access via CAN.
x stands for the number of parallel generators in the application here.
After LeoPC1 has been started and the configuration file has been called up, the driver has to be controlled. To
do this, proceed as follows:
NOTE
LeoPC1 version V2.x is not compatible for USB to CAN of IXXAT.
LeoPC1 software from version 3.1 is recommended since it includes the current driver VCI2.16 for the
USB to CAN of IXXAT in the installation.
If a VCI driver of IXXAT older than V2.16 is installed, we recommend to update to version V2.16 or
higher. To do this, proceed as described by IXXAT.
Page 8/38 © Woodward
