Page 43

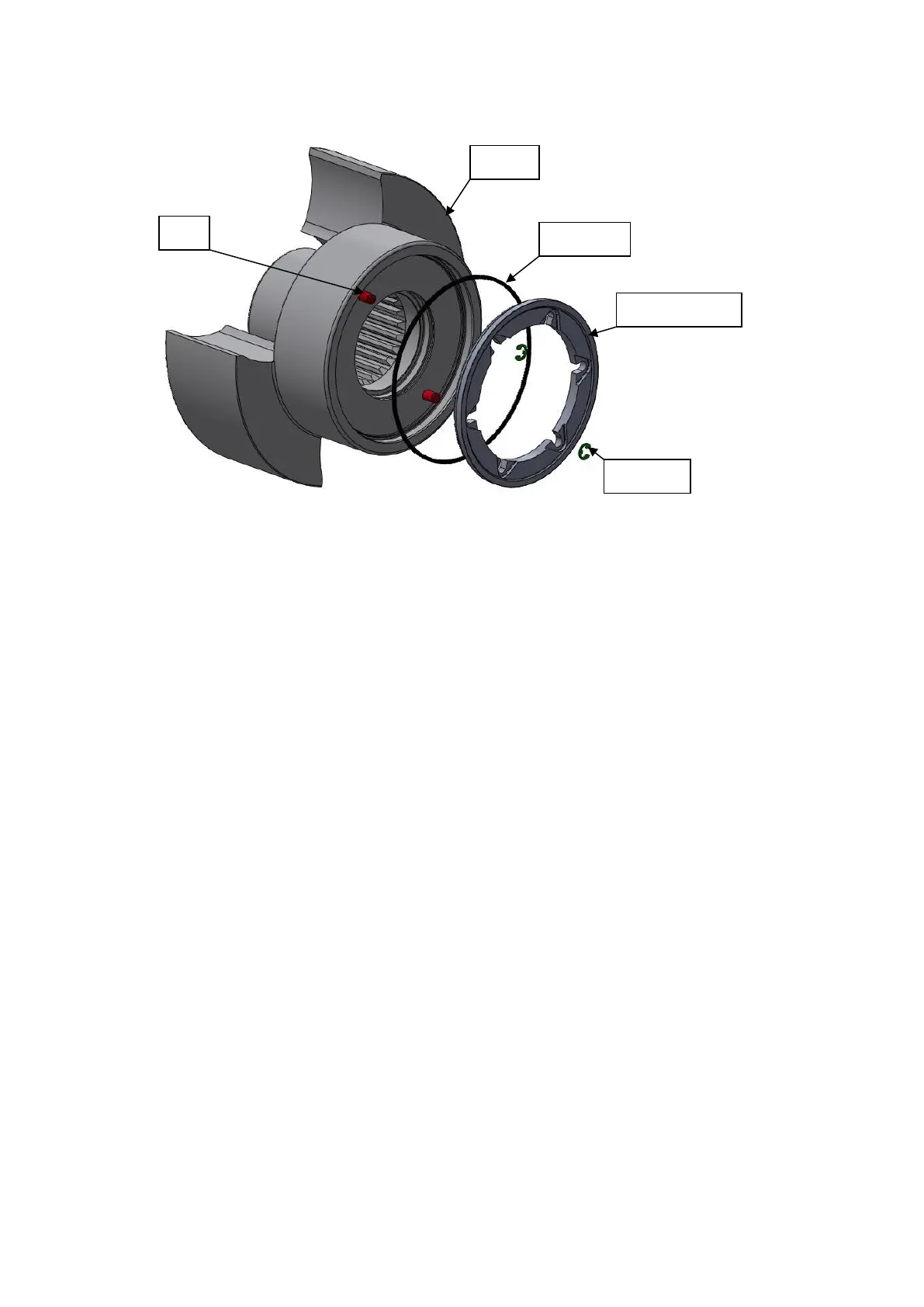

Fig 40.1 Frame 6 & 7 Rotary Seal Face
• Install pins into rotor 8mm of the Frame 6 pin should stand out and 12.5 mm
of the Frame 7 pin should stand out
• Install the o-ring into the rotor.
• Install the rotary face into the rotor making sure the pins line up with seal
face slots. Install clips onto pins.
