Page 44

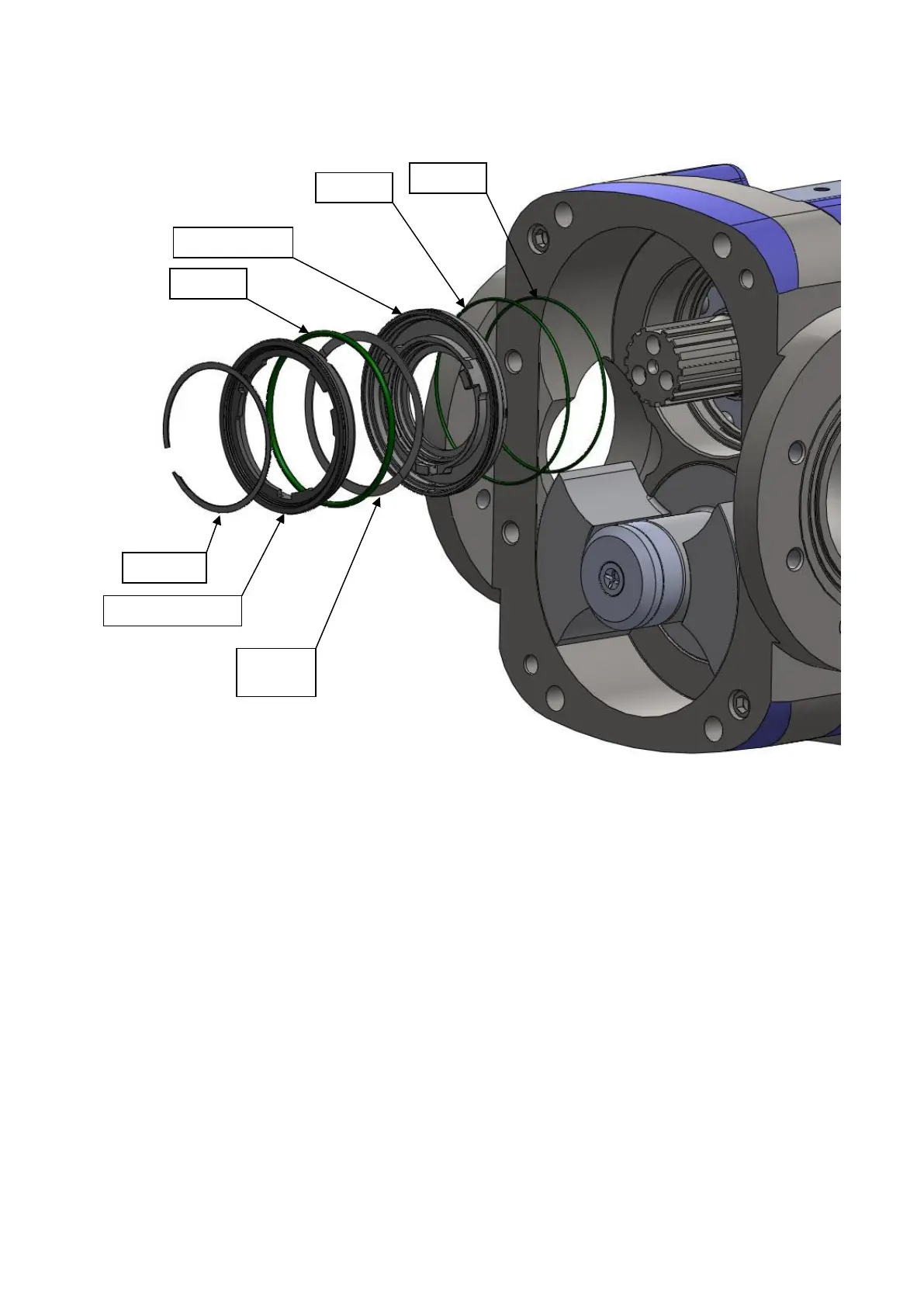

Fig 41.1 Frame 6 Static Single Seal Face
• Frame 6
o Install two o-rings onto the seal housing.
o Install the seal housing into the rotorcase.
o Install o-ring over seal face
o Install wave spring into housing
o Install static seal face
o Install C Clip
o Alternatively put seal together on bench and install as unit
